Suitable for use in production, packaging, warehouse, inventory, and shipping and receiving areas, the Ohaus Defender 3000 Standard i-D33 Bench Scales are ideal for general weighing, simple counting, and check-weighing applications. These balances combine an Ohaus Defender 3000 EZ Bench Scale Base with an Ohaus Defender i-DT33P LCD Indicator to deliver a durable, versatile, and reliable weighing system.
The Ohaus Defender 3000 EZ Bench Scale Bases are tough industrial scales with a 304-stainless-steel platform, powder-coated steel tubular frame and column, and an IP65 aluminium load cell. The Ohaus Defender i-DT33P LCD Indicator matches the base’s durability. It features a backlit LCD with tactile keys encased in a rugged ABS casing with a powder-coated steel mounting bracket. The indicator can be AC or battery-powered and supports flexible mounting options. To facilitate instant configuration between the base and the indicator, approved Ohaus Defender 3000 Standard i-D33 Bench Scales include an EasyConnect™ solution.
The Ohaus Defender 3000 Standard i-D33 Bench Scales offer Weighing, Parts Counting, Check-weighing, and Totalisation functions. Results are displayed on the indicator. Furthermore, when the Ohaus Defender 3000 Standard i-D33 Bench Scales are set to Check-weighing mode, the backlit display will also change colour (green, yellow, or red) to indicate whether the weight is within, without, or close to the pre-set value. Data can be transferred to a computer or sent to print via the built-in RS-232 interface. The Ohaus Defender 3000 Standard i-D33 Bench Scales also support an optional Ethernet interface and are compatible with USB devices.
The Ohaus Defender 3000 Standard i-D33 Bench Scales are dependable, rugged, multifunctional balances for use in demanding environments.
Ohaus Defender 3000 Standard i-D33 Bench Scales Key Features
- An Ohaus Defender 3000 EZ Bench Scale Base combined with an Ohaus i-DT33P LCD Indicator
- Suitable for use in production, packaging, warehouse, inventory, and shipping and receiving areas
- Ideal for general weighing, simple counting, and check-weighing applications
- 304-stainless steel platform
- Powder-coated steel tubular frame and column
- IP65 aluminium load cell
- Backlit LCD with tactile keys encased in a rugged ABS casing with a powder-coated steel mounting bracket
- AC or battery-powdered
- The indicator supports flexible mounting options
- Approved models include an EasyConnect™ solution
- Check-weighing function with colour change indication
- Built-in RS232 interface
- Optional Ethernet interface
- Compatible with USB devices
- Dependable, durable, versatile weighing systems
What’s Included?
- Your Choice of Ohaus Defender 3000 Standard i-D33 Bench Scales
Datasheets
Manuals & Guides

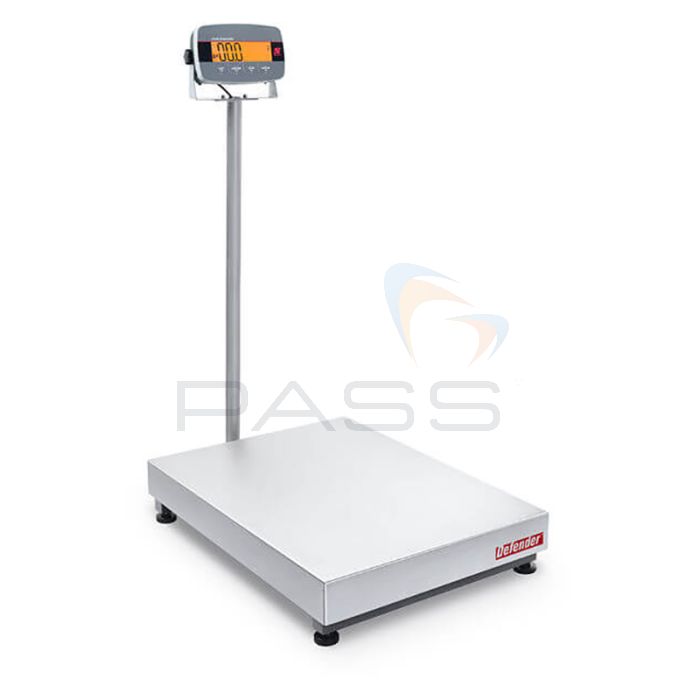

Ohaus Defender 3000 Standard Bench Scale - Column Mount
Modular Scale with Column Mount for Basic Industrial Needs.
SKU | Name | EC Type Approved | Capacity | Readability (d) | Readability (e) | Platform | Column |
---|---|---|---|---|---|---|---|
OH-30684738 | i-D33P15B1R1 | - | 15kg | 2g | - | 305mm x 355mm | 330mm |
OH-30684739 | i-D33P30B1R1 | - | 30kg | 5g | - | 305mm x 355mm | 330mm |
OH-30684740 | i-D33P60B1R1 | - | 60kg | 10g | - | 305mm x 355mm | 330mm |
OH-30684744 | i-D33P60B1L2 | - | 60kg | 10g | - | 420mm x 550mm | 680mm |
OH-30684745 | i-D33P150B1L2 | - | 150kg | 20g | - | 420mm x 550mm | 680mm |
OH-30684748 | i-D33P150B1X2 | - | 150kg | 20g | - | 500mm x 650mm | 680mm |
OH-30684749 | i-D33P300B1X2 | - | 300kg | 50g | - | 500mm x 650mm | 680mm |
OH-30684752 | i-D33P300B1V3 | - | 300kg | 50g | - | 600mm x 800mm | 980mm |
OH-30684753 | i-D33P600B1V3 | - | 600kg | 100g | - | 600mm x 800mm | 980mm |
OH-30685098 | i-D33P15B1R1-M | ✓ | 15kg | - | 5g | 305mm x 355mm | 330mm |
OH-30685099 | i-D33P30B1R1-M | ✓ | 30kg | - | 10g | 305mm x 355mm | 330mm |
OH-30685100 | i-D33P60B1R1-M | ✓ | 60kg | - | 20g | 305mm x 355mm | 330mm |
OH-30685104 | i-D33P60B1L2-M | ✓ | 60kg | - | 20g | 420mm x 550mm | 680mm |
OH-30685105 | i-D33P150B1L2-M | ✓ | 150kg | - | 50g | 420mm x 550mm | 680mm |
OH-30685108 | i-D33P150B1X2-M | ✓ | 150kg | - | 50g | 500mm x 650mm | 680mm |
OH-30685109 | i-D33P300B1X2-M | ✓ | 300kg | - | 100g | 500mm x 650mm | 680mm |
OH-30685112 | i-D33P300B1V3-M | ✓ | 300kg | - | 100g | 600mm x 800mm | 980mm |
OH-30685113 | i-D33P600B1V3-M | ✓ | 600kg | - | 200g | 600mm x 800mm | 980mm |
Ohaus Defender 3000 Standard Bench Scale - Front Mount
Modular Scale with Front Mount for Basic Industrial Needs.
SKU | Name | EC Type Approved | Capacity | Readability (d) | Readability (e) | Platform | Column |
---|---|---|---|---|---|---|---|
OH-30684756 | i-D33P15B1R5 | - | 15kg | 2g | - | 305mm x 355mm | - |
OH-30684757 | i-D33P30B1R5 | - | 30kg | 5g | - | 305mm x 355mm | - |
OH-30684758 | i-D33P60B1R5 | - | 60kg | 10g | - | 305mm x 355mm | - |
OH-30684762 | i-D33P60B1L5 | - | 60kg | 10g | - | 420mm x 550mm | - |
OH-30684763 | i-D33P150B1L5 | - | 150kg | 20g | - | 420mm x 550mm | - |
OH-30684766 | i-D33P150B1X5 | - | 150kg | 20g | - | 500mm x 650mm | - |
OH-30684767 | i-D33P300B1X5 | - | 300kg | 50g | - | 500mm x 650mm | - |
OH-30685116 | i-D33P15B1R5-M | ✓ | 15kg | - | 5g | 305mm x 355mm | - |
OH-30685117 | i-D33P30B1R5-M | ✓ | 30kg | - | 10g | 305mm x 355mm | - |
OH-30685118 | i-D33P60B1R5-M | ✓ | 60kg | - | 20g | 305mm x 355mm | - |
OH-30685122 | i-D33P60B1L5-M | ✓ | 60kg | - | 20g | 420mm x 550mm | - |
OH-30685123 | i-D33P150B1L5-M | ✓ | 150kg | - | 50g | 420mm x 550mm | - |
OH-30685126 | i-D33P150B1X5-M | ✓ | 150kg | - | 50g | 500mm x 650mm | - |
OH-30685127 | i-D33P300B1X5-M | ✓ | 300kg | - | 100g | 500mm x 650mm | - |
