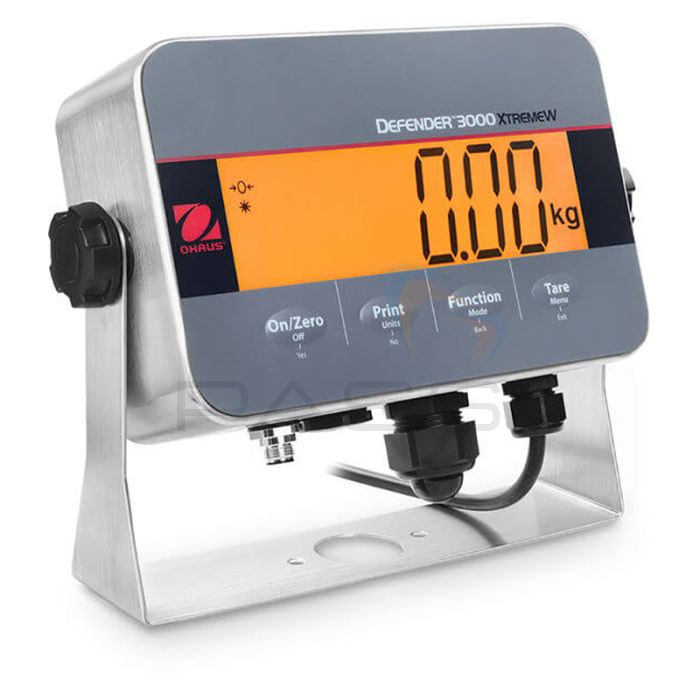

Ohaus 30648432 Defender 3000 i-DT33XW-GB EZ Stainless Steel Washdown Indicator
- Results are clearly shown using the large, bright backlit LCD display
- Features software for Parts Counting, Checkweighing and Totalization
- Indicator features an IP66 protected 304-stainless steel housing with bracket
SKU
OH-30648432
MPN
30648432
Encased in a stainless-steel housing and mounting bracket, the Ohaus Defender 3000 i-DT33XW-GB EZ Indicator is a rugged (IP66), reliable, affordable display designed for basic industrial applications. Intended for use with Ohaus’ Defender 3000 bases, it includes EasyConnect™ technology for simple, instantaneous pairing without configuration.
Readings are indicated on the large, backlit display with a resolution of up to 1:30 000 and an OIML-approved resolution of 1:10 000. In addition to providing weight measurements, the Ohaus Defender 3000 i-DT33XW-GB EZ Indicator includes software for parts counting, check-weighing, and totalisation. When set to the Check-weighing mode, the colour of the Ohaus Defender 3000 i-DT33XW-GB EZ Indicator’s display will change (green, red, or yellow) to indicate when the weight on the platform is within, without, or close to the set range.
A bi-directional RS232 interface enables printing and data connectivity. The Ohaus Defender 3000 i-DT33XW-GB EZ Indicator is also compatible with USB devices and will support an optional Ethernet interface.
The Ohaus Defender 3000 i-DT33XW-GB EZ Indicator is an easy-to-use, economic display for basic industrial applications.
Ohaus Defender 3000 i-DT33XW-GB EZ Indicator Key Features
- A rugged, reliable, affordable display designed for basic industrial applications
- Stainless-steel housing and mounting bracket
- IP66
- EasyConnect™ technology for instantaneous pairing with Defender 3000 bases without configuration
- Large, backlit display
- Display resolution: up to 1:30 000
- OIML-approved resolution: 1:10 000
- Software for weighing, parts counting, check-weighing, and totalisation
- In Check-weighing mode the display changes colour (green, red, yellow) to indicate when the weight is within, outside, or close to the target range
- Bi-directional RS232 interface for printing and data connectivity
- Compatible with USB devices
- Supports an optional Ethernet interface
- An easy-to-use, economic display for basic industrial applications
What’s Included?
- Ohaus Defender 3000 i-DT33XW-GB EZ Indicator
£262.00
£314.40 inc vat
Stock Due:
Typically 1-2 Weeks
| Qty | Per Unit | Saving |
|---|---|---|
| 1 - 2 | £262.00 | - |
| 3 - 4 | £252.83 | Save 3% |
| 5+ | £248.90 | Save 5% |
Technical Information
Specification
Ohaus Defender 3000 i-DT33P & i-DT33XW EZ ABS Plastic Indicator Technical Specifications
| i-DT33P | i-DT33XW | |
| Construction | ABS housing, powder-coated steel mounting bracket | 304 stainless steel housing and mounting bracket |
| Protection | IP54 (with optional dust cover) | IP66 |
| A/D Conversion Rate | 80 Hz | |
| Capacity Selections | Up to 99,999 g/kg/t | |
| Maximum Displayed Resolution | 1:30,000 | |
| Maximum Approved Resolution | 1:10000 or 2 × 3000e Class III @ 1 µV/e (EC, OIML) | |
| Weighing Units | Kilogram, Gram, Pound, Ounce, Pound: Ounce (Kilogram, Gram only for M models) |
|
| Application Modes | Weighing, Counting, Checkweighing, Totalization | |
| Display | 45 mm digit height LCD display with 3-color backlight | |
| Keyboard | 4 function keys | |
| Auto-zero Tracking | Off, 0.5 d, 1 d or 3 d | |
| Zeroing Range | 2% or 100% of capacity | |
| Calibration | Zero, Span or 3 point-Linear | |
| Span Calibration | 1 kg to capacity | |
| Internal Resolution | 68,500 counts per mV/V | |
| Digital Filtering/Type | Averaging | |
| Load Cell Excitation Voltage | 5VDC | |
| Load Cell Drive | Up to 6 x 350 ohm load cells | |
| Load Cell Input Sensitivity | Up to 3 mV/V | |
| Stabilization Time | Within 1 second | |
| Power | 100-240 VAC / 50/60 Hz Universal Power Supply or C cell battery (Not included) |
100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard rechargeable battery |
| Battery Life | Up to 360 hours continuous use with backlight off (C cell battery | Up to 100 hours continuous use with backlight off (rechargeable battery) |
| Interface | RS232 included, Optional USB, Ethernet | |
| Shipping Dimensions | 300 x 265 x 135 mm | |
| Product Dimensions (with bracket) | 251.6 x 177 x 81 mm | 256 x 206 x 74 mm |
| Approx. Net Weight | 1.4 kg | 3 kg |
| Approx. Shipping Weight | 1.8 kg | 3.4 kg |
| Operating Temperature Range | -10°C to 40°C | |
Document Downloads
Ohaus Defender 3000 Indicator Datasheet
Ohaus Defender 3000 Indicator Quick Start Guide
Ohaus Defender 3000 Indicator Manual
