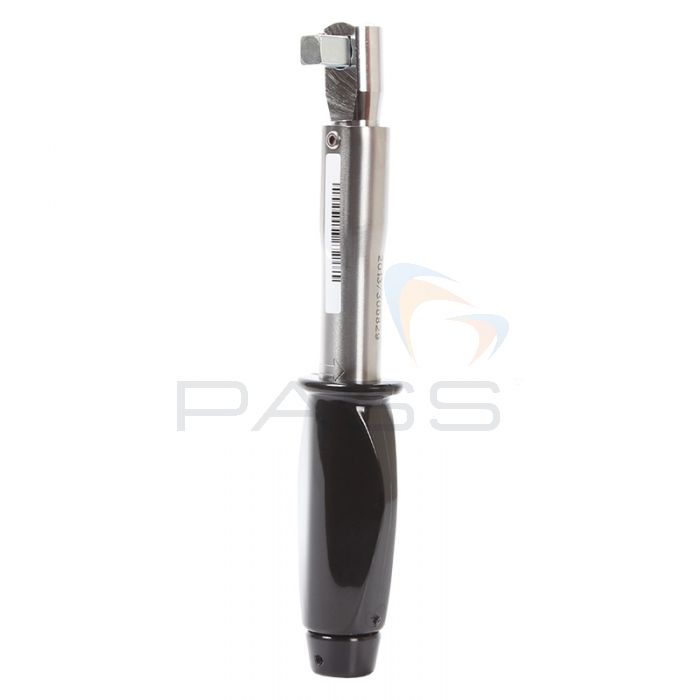

Please note image shows NOR-1089 models vary slightly depending on model ordered
This range off slimline torque wrenches form Nobar consists of the following models:
11089, 11085, 11086, 11090, 11088, please select your required model from the dropdown above, see the table below for specifications
Model Code | Model Name | Square Size | N.m Scale | lbf.in Scale |
NOR-11089 | Model SL0 P 3/8" Fixed Head | 3/8" | 1.0 - 20.0 N·m | 10.0 - 180.0 lbf·in |
NOR-11085 | Model SL0 P 1/4" | 1/4" | 1.0 - 20.0 N·m | 10.0 - 180.0 lbf·in |
NOR-11086 | Model SL0 P 3/8" | 3/8" | 1.0 - 20.0 N·m | 10.0 - 180.0 lbf·in |
NOR-11090 | Model SL0 Plastic Knob THP - 16mm Spigot | - | 1.0 - 20.0 N·m | 10.0 - 180.0 lbf·in |
NOR-11088 | Model SL0 Plastic Knob FTHP - 9x12mm Female | - | 1.0 - 20.0 N·m | 10.0 - 180.0 lbf·in |
Norbar’s Slimline Production ‘P’ Type Dual Scale Torque Wrenches are designed to discourage unauthorised alteration and therefore have no set scale and must be set using a torque testing device. (Available from Norbar’s Professional Torque Tester range).
The 11089 – SL0 with a fixed head is one of the smallest in the range which operates between with a range of 1 - 20 N·m (40 - 180 lbf·in) and features a push through square for left and right handed torque tightening.
Also available within the range are, both 16mm spigot and 9 x 12mm female torque handle versions
Norbar's Production ‘P’ type wrenches all feature a 72 tooth ratchet allowing ease of use in even confined spaces and the moulded grip provides grip and comfort. When the set torque is reached a clear signal will indicate the user to stop.
Wrenches are accurate to ±3 % meeting ISO6789-1:2017 and exceeds the following national and international standards: BS6703: 1988, ISO 6789: 1992 & U.S.A.GGG-W-00686-C (GSA-FSS).
Norbar Slimline Production P-Type Torque Wrench Key Features
- Accuracy of ±3 %
- Unmistakable indication when set torque is reached
- 72 tooth ratchet
- Comfort grip accommodates strong, high-quality body for comfort and durability
- Fixed head features push through square for both right and left-handed users
- Meets ISO6789-1:2017
- Slime line makes them easier to use in more difficult situations
- Smaller torque ranges
- Dual scale both N.m and lbf.in
What’s Included?
- Declaration od conformance
- Chosen Norbar Slimline Production P-Type Torque Wrench
Reviews
SKU | Norbar-110XXP |
---|---|
Manufacturer Part Code | 11089 |
