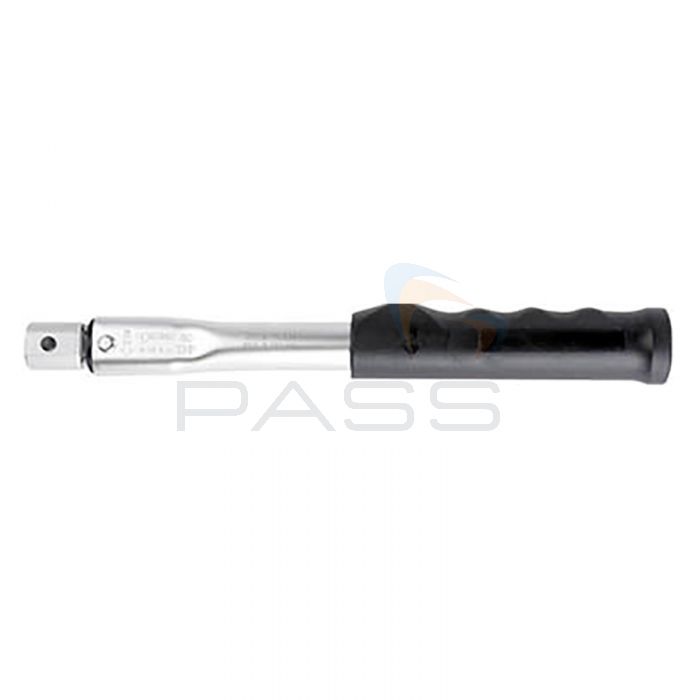

The Norbar Professional P-Type Torque Wrenches – Female Torque Handle are available in six models that vary in regards to their ranges and sizes, please see the table below for further details.
Model Code | Model Name | Square Size | N.m Scale | lbf.ft Scale |
NOR-11170 | Norbar Pro 60 P-Type 9x12mm Female Handle Torque Wrench | 9x12mm | 12-60 | 5-45 |
NOR-11150 | Norbar Pro 100 P-Type 9x12mm Female Handle Torque Wrench | 9x12mm | 20-100 | 15-75 |
NOR-11151 | Norbar Pro 200 P-Type 9x12mm Female Handle Torque Wrench | 9x12mm | 40-200 | 30-150 |
NOR-11152 | Norbar Pro 200 P-Type 14x18mm Female Handle Torque Wrench | 14x18mm | 40-200 | 30-150 |
NOR-11153 | Norbar Pro 300 P-Type 14x18mm Female Handle Torque Wrench | 14x18mm | 60-300 | 45-220 |
NOR-13068 | Norbar Pro 400 P-Type 14x18mm Female Handle Torque Wrench | 14x18mm | 80-400 | 60-300 |
The Norbar Professional P-Type Torque Wrenches are accurate to ±3% ensuring compliance with ISO 6789-1:2017.
These tools do not have visible scales and so must be set using one of Norbar’s torque tester instruments such as the TRUCHECK™, PRO-TEST, TST, or TTT. This method of setting the Norbar Professional P-Type Torque Wrenches discourages unauthorised and/or accidental alteration of the set torque.
It is possible to order the Norbar Professional P-Type Torque Wrenches pre-set and pre-marked to a specific torque; please contact our sales team PRIOR to purchase for further information. If the Norbar Professional P-Type Torque Wrenches are supplied with an OPTIONAL pre-set, a Declaration of Conformance will also be included in the scope-of-delivery.
Once set, the Norbar Professional P-Type Torque Wrenches can be used for a specific torquing task, making them ideal for production line applications.
These instruments are supplied with coloured end seals allowing the user to identify the tools in relation to their user, calibration period or torque setting.
The Norbar Professional P-Type Torque Wrenches – Female Torque Handle are accurate, reliable and easy-to-use torquing tools optimised for production environments.
Norbar Professional P-Type Torque Wrenches – Female Torque Handle Key Features
- Available in six models with different ranges and sizes
- Accuracy: ±3%
- Compliant with ISO 6789-1:2017 regulations
- No visible scale
- Must be set using one of Norbar’s torque tester instruments
- Setting the tool using a torque tester prevents unauthorised or accidental alteration
- Can be supplied pre-set, pre-marked and with a Declaration of Conformance; please contact our sales team PRIOR to purchase
- Designed to be set and used for a specific torquing application
- Supplied with coloured end seals allowing the user to identify the wrench in relation to the user, calibration period or torque setting
- Accurate, reliable and easy-to-use torquing tools optimised for production environments
What’s Included?
- Your Choice of Norbar Professional P-Type Torque Wrench – Female Torque Handle
- Coloured End Seals
Norbar Professional P-Type Torque Wrenches – Female Torque Handle Technical Specifications
Specifications | NOR-11170 | NOR-11150 | NOR-11151 | NOR-11152 | NOR-11153 | NOR-13068 |
Length | 288 mm | 315 mm | 405 mm | 530 mm | 640 mm | |
Weight | 0.55 Kg | 0.6 Kg | 0.78 Kg | 1.13 Kg | 1.75 Kg | |
Torque Radius | 236.6 mm | 276.6 mm | 358.6 mm | 490.1 mm | N/A |
Reviews
SKU | NOR-P-1XXXX |
---|---|
Manufacturer Part Code | 11170 |
