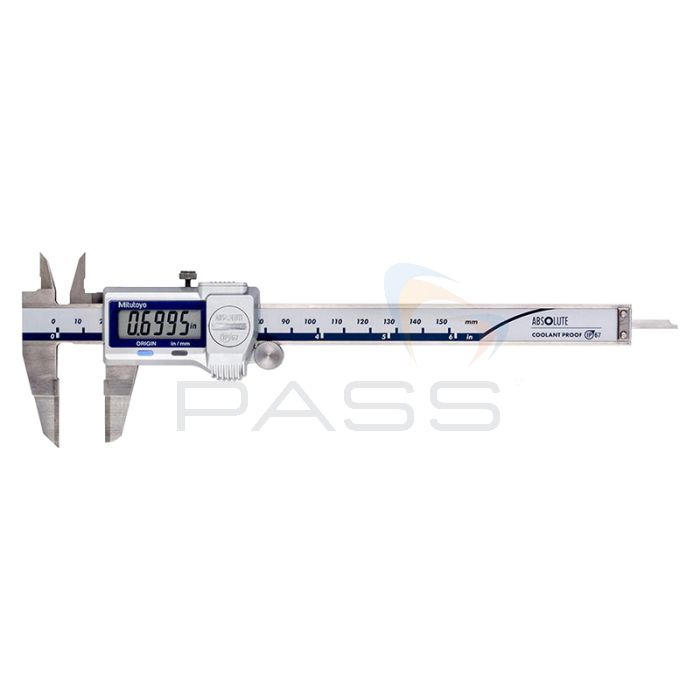

Mitutoyo Series 573 Absolute Digital Blade Caliper: 0-150mm / 0-6"
Description
SERIES 573 - Blade Caliper
- The outside measuring faces are carbide tipped.
- Can measure outside and inside dimensions, depth, and steps.
- Digimatic models enable integration into statistical process control and measurement systems.

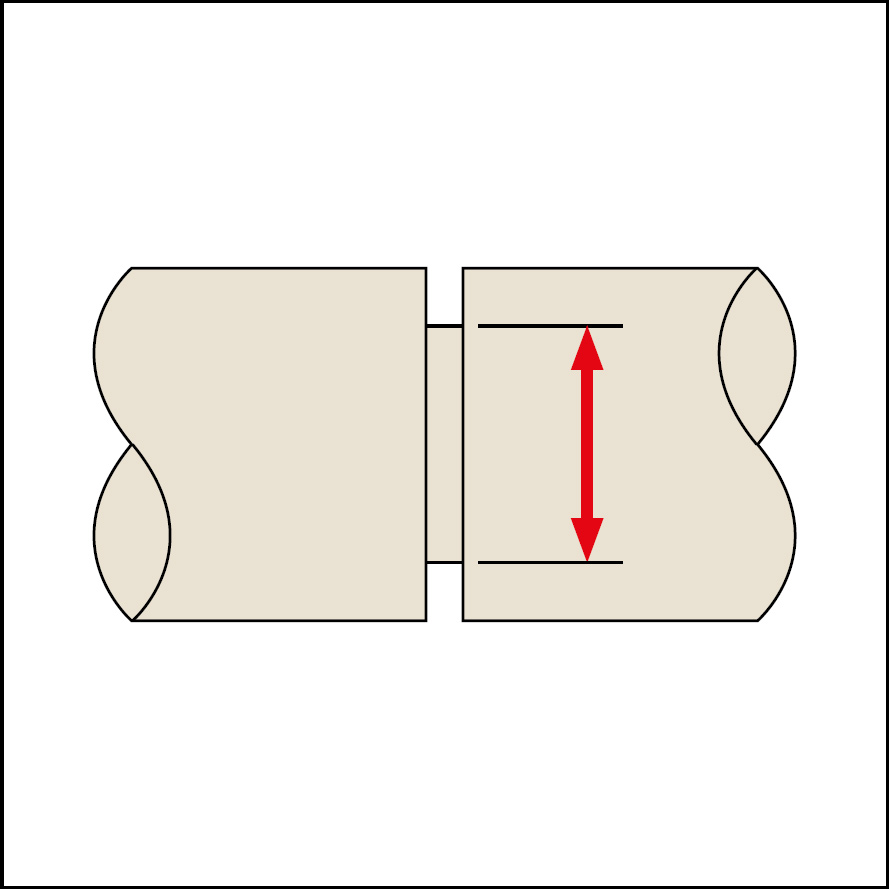

- The thin blade-type jaws fit into very small grooves and make previously difficult outside measurements far easier to obtain.
- Digimatic models feature Mitutoyo's ABSOLUTE system with IP67 ingress protection. No need to reset the origin after switching on.
Technical Data for 573 series
- Scale type: ABSOLUTE electromagnetic induction linear encoder
- Max. response speed: Unlimited
- Battery: SR44 (1 pc.), 938882
- Battery life: Approx. 5 years under normal use (1 year for models over 300 mm)
- Dust/water protection level: IP67*
- * Care should be taken to dry the tool after use.
Offers
FREE Mitutoyo Book with Online Mitutoyo Orders Over £100
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Tech Specs

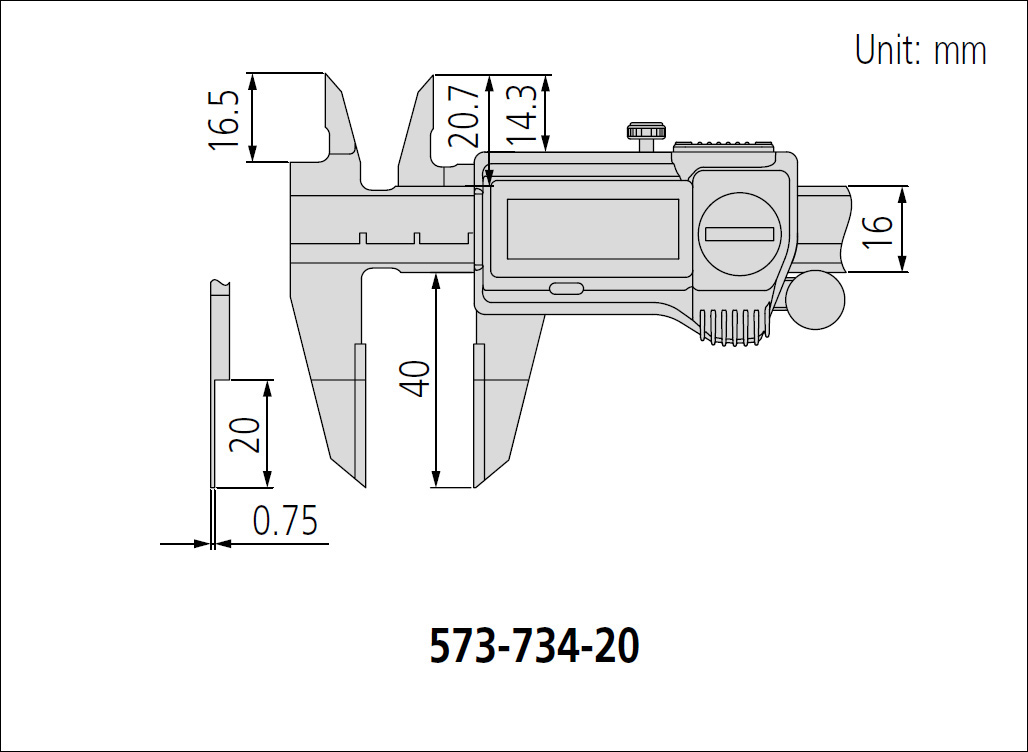

Dimensions
Inch/Metric
ABSOLUTE Digimatic Type
| SKU | Range | Resolution | Max. permissible error | |
|---|---|---|---|---|
| EMPE | SMPE | |||
| MIT-573-734-20 | 0 - 150 mm (0 - 6") | 0.01 mm (.0005") | ±.001" | ±.002" |
Note: Partial Surface Contact Error, EMPE, and Shift Error, SMPE are terms (notations) used in ISO 13385-1:2019.
Accessories
Accessories related to this product:
Reviews
Additional Information
| SKU | MIT-573-734-20 |
|---|---|
| Manufacturer Part Code | 573-734-20 |
