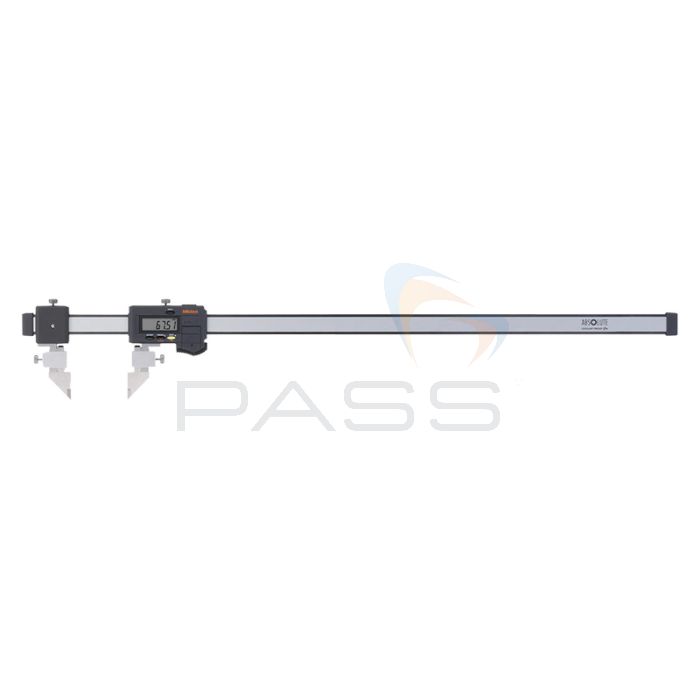

Mitutoyo Series 552 Absolute Digital Coolant Proof Interchangeable Jaw Carbon Fibre Caliper: 0-2,000mm / 0-80"

SKU
552-19X-10
Rating:
0%
(0)
Reward Points
:
1158
£1,158.00 £965.00
Free UK Delivery*
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Free Mitutoyo Gift - Spend £100+
Mitutoyo Series 552 Absolute Digital Coolant Proof Interchangeable Jaw Carbon Fibre Caliper: 0-2,000mm / 0-80"
FREE Mitutoyo Book with Online Mitutoyo Orders Over £100
Description

SERIES 552 - ABSOLUTE Digimatic Coolant Proof Interchangeable Jaw Carbon Fibre Caliper

  • The range of applications can be expanded by using interchangeable jaws (optional).
  • Data output function allows integration into statistical process control and measurement systems.
  • A lightweight Digimatic caliper that uses CFRP (Carbon Fibre Reinforced Plastics) in the beam and jaws.
  • Provided with preset function for setting a desired starting point, which allows direct readout of offset measurement.

Technical Data

  • Scale type: ABSOLUTE electromagnetic induction linear encoder
  • Max. response speed: Unlimited
  • Battery: SR44 (1 pc.), 938882
  • Battery life: Approx. 5,000 hours in continuous use
  • Dust/water protection level: IP66*
  • Standard accessory: Jaw clamps (2 pcs.), 05GZA033
  • *Care should be taken to dry the tool after use.
Mitutoyo IP66 logo Mitutoyo Absolute logo Mitutoyo TUV logo

Functions

ABSOLUTE System Measurement

After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed. The ABS (Absolute) origin position can be changed by the ORIGIN button.

Zero-setting (INC measurement mode)

Displayed value can be set to zero at any arbitrary position of the slider for comparative measurements.

Auto ON/OFF

The reading on the LCD disappears after this instrument is idle for a short time, but the origin point is retained. Moving the slider causes the reading on the LCD to reappear.

Data Output

Models equipped with this function have an output port for transferring measurement data to a Statistical Process Control (SPC) system.

Data Hold

By using the data hold button the displayed value can be held.

Presetting (ABS INC measurement mode)

Displayed value can be set to any arbitrary value.

Offsetting

Automatically adds the thickness of the inside jaws to the measured value so that the result can be read directly, without calculation.

Inch/mm Selection

Switches the units of measurement (at any time).

Alerts

In the unlikely event of a display overflow or calculation error, an error message is displayed and measurement stops. Measurement cannot continue until the error is corrected. If the battery voltage drops below a certain point, the battery indicator will turn on before measurement becomes impossible, warning the user that the battery needs to be replaced. If contamination on the surface of the scale causes a calculation error, an error message is displayed and measurement stops.

Offers
FREE Mitutoyo Book with Online Mitutoyo Orders Over £100

This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page

Tech Specs

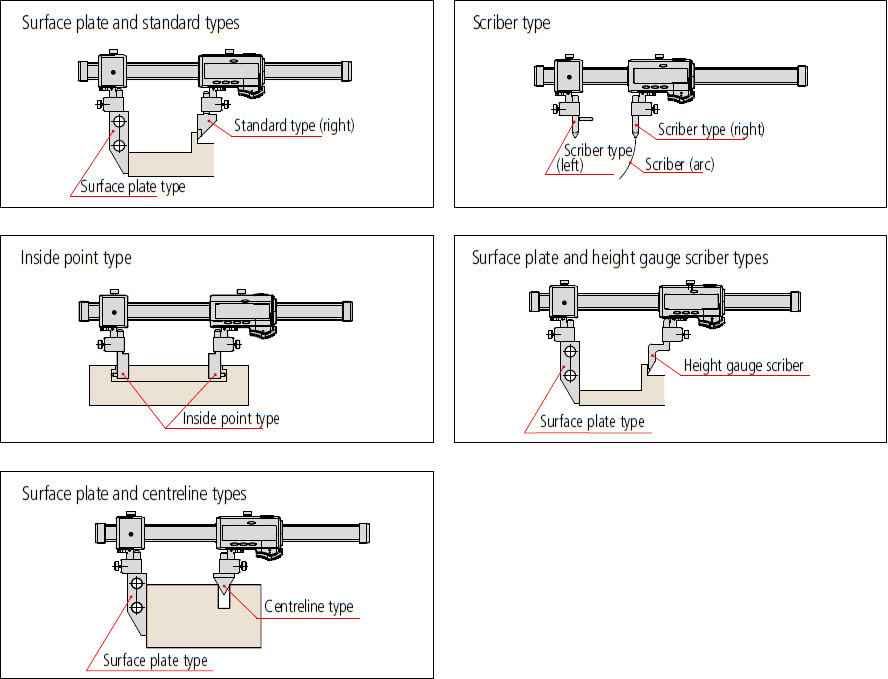

Application Examples

Mitutoyo series 552 application examples.

SKU Range Resolution Max. permissible error EMPE and SMPE
MIT-552-191-10 0 - 450 mm / 0 - 18" 0.01 mm / .0005" ±0.04 mm / ±.002"
MIT-552-192-10 0 - 600 mm / 0 - 24"
MIT-552-193-10 0 - 1000 mm / 0 - 40"
MIT-552-194-10 0 - 1500 mm / 0 - 60" ±0.09 mm / ±.004"
MIT-552-195-10 0 - 2000 mm / 0 - 80" ±0.12 mm / ±.005"

Note: Partial Surface Contact Error, EMPE, and Shift Error, SMPE are terms (notations) used in ISO 13385-1:2019.
