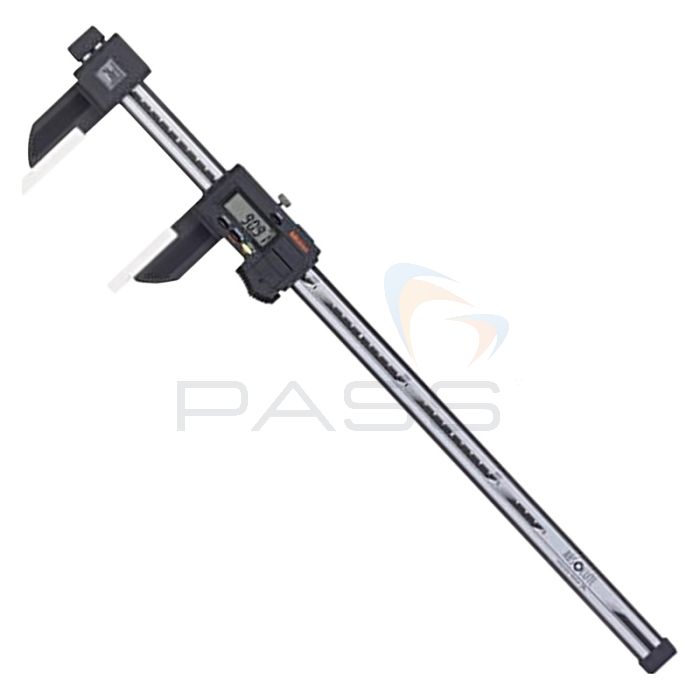

SERIES 552 - ABSOLUTE Digimatic Coolant Proof Ceramic Jaw Carbon Fibre Caliper
- Zirconia ceramic contact surfaces for high resistance to wear.
- Interchangeable measuring jaws available as optional accessories.
- Rustless and nonmagnetic. Suitable for measuring magnetic components.
- Data output function allows integration into statistical process control and measurement systems.
- A lightweight Digimatic caliper that uses CFRP (Carbon Fibre Reinforced Plastics) in the beam and jaws.
Technical Data
- Scale type: ABSOLUTE electromagnetic induction linear encoder
- Max. response speed: Unlimited
- Battery: SR44 (1 pc.), 938882
- Battery life: Approx. 5,000 hours in continuous use
- Dust/water protection level: IP66*¹
- *¹ Care should be taken to dry tool after use.
Functions
ABSOLUTE System Measurement
After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed. The ABS (Absolute) origin position can be changed by the ORIGIN button.
Zero-setting (INC measurement mode)
Displayed value can be set to zero at any arbitrary position of the slider for comparative measurements.
Auto ON/OFF
The reading on the LCD disappears after this instrument is idle for a short time, but the origin point is retained. Moving the slider causes the reading on the LCD to reappear.
Data Output
Models equipped with this function have an output port for transferring measurement data to a Statistical Process Control (SPC) system.
Data Hold
By using the data hold button the displayed value can be held. This cannot be used with the data output function.
Presetting (ABS INC measurement mode)
Displayed value can be set to any arbitrary value.
Offsetting
Automatically adds the thickness of the inside jaws to the measured value so that the result can be read directly, without calculation.
Inch/mm Selection
Switches the units of measurement (at any time).
Alerts
In the unlikely event of a display overflow or calculation error, an error message is displayed and measurement stops. Measurement cannot continue until the error is corrected. If the battery voltage drops below a certain point, the battery indicator will turn on before measurement becomes impossible, warning the user that the battery needs to be replaced. If contamination on the surface of the scale causes a calculation error, an error message is displayed and measurement stops.

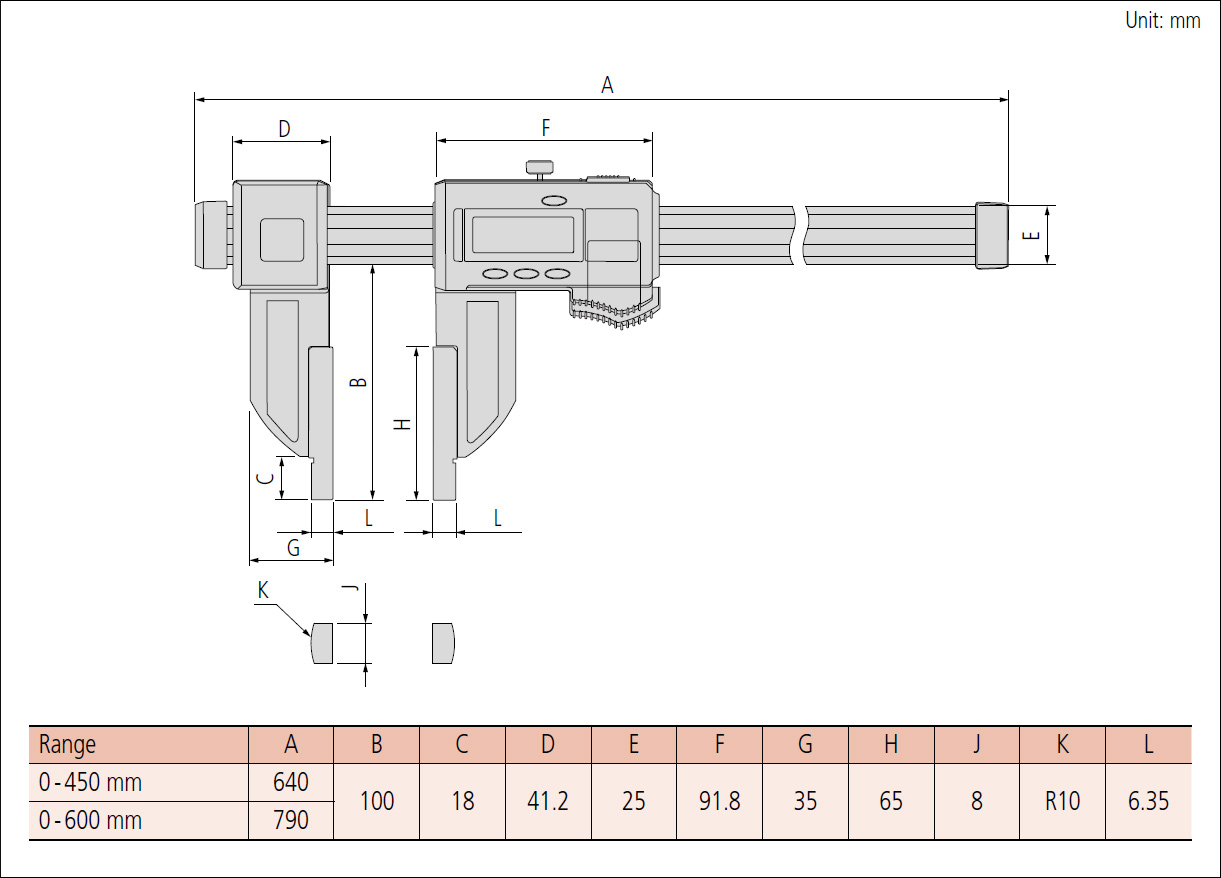

Dimensions
SKU | Range*³ | Resolution | Max. permissible error EMPE and SMPE |
---|---|---|---|
MIT-552-165-10 | 0 (20) - 450 mm / 0 (.5") - 18" | 0.01 mm / .0005" | ±0.04 mm / ±.002" |
MIT-552-166-10 | 0 (20) - 600 mm / 0 (.5") - 24" |
*³ ( ): Minimum dimension in inside measurement.
Note: Partial Surface Contact Error, EMPE and Shift Error, SMPE are terms (notations) used in ISO 13385-1:2019.
