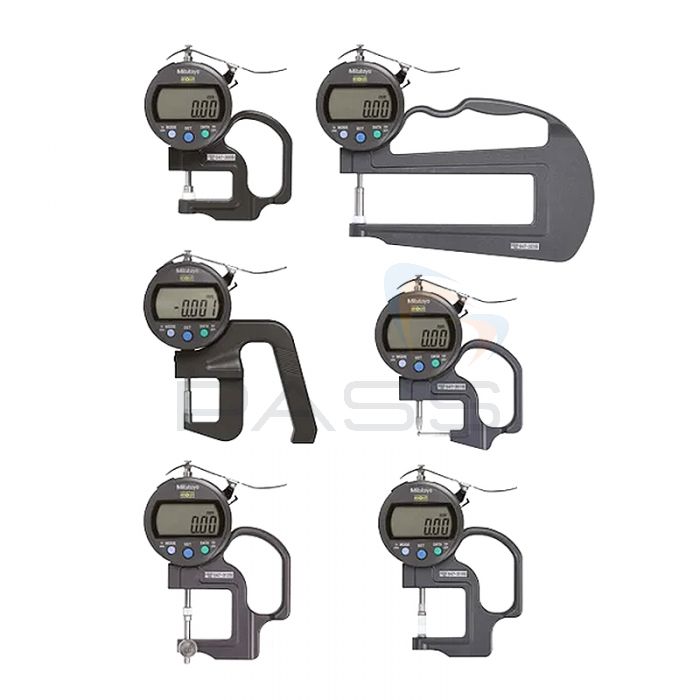

Mitutoyo Series 547 Absolute Digital Thickness Gauge

The Mitutoyo Series 547 Absolute Digital Thickness Gauges are dial gauges designed to measure the thickness of thin items such as paper and felt. Each of these gauges is optimised for a particular purpose.

Mitutoyo Series 547 Application Examples

Mitutoyo Series 547 Digital Thickness Gauge Dimensions

Please see the table below for further details:

Measurement Type Application
Tube Thickness Pipe wall thickness and the thickness of curved boards can be measured.

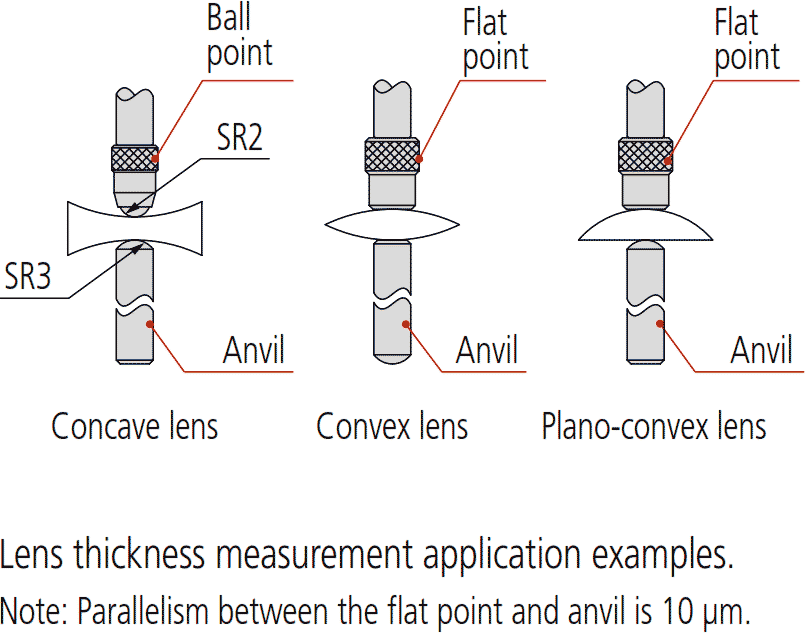

Lens Thickness Thickness of concave-convex lenses and surfaces can be measured.
Anvils and contact points are interchangeable to enable concave surfaces to be measured.
Provided with a ball point.
Groove Depth Suitable for measuring narrow grooves.
Measuring face of the contact point and anvil are blade-shaped (thickness: 1 mm).



All the Mitutoyo Series 547 Absolute Digital Thickness Gauges feature integrated moulding of the bezel and crystal to ensure protection against water and oil ingress via the front panel. Each model is also equipped with a Data Output function which facilitates integration into measurement networking and statistical process control (SPC) systems.

The Mitutoyo Series 547 Absolute Digital Thickness Gauges are durable, dependable and precise ABSOLUTE dial thickness gauges.

Mitutoyo Series 547 Absolute Digital Thickness Gauge Key Features

  • Dial thickness gauge designed to measure the thickness of thin items like paper and felt
  • Each gauge is optimised for a particular purpose: Tube Thickness, Lens Thickness or Groove Depth (see table above)
  • Integrated moulding of the bezel and crystal prevents water and oil ingress via the front panel
  • Data Output function: facilitates integration into measurement networking and statistical process control (SPC) systems

What’s Included?

  • Your Choice of Mitutoyo Series 547 Absolute Digital Thickness Gauge

A ball point is provided with Lens thickness measurement type gauges.

Dimensions (mm)

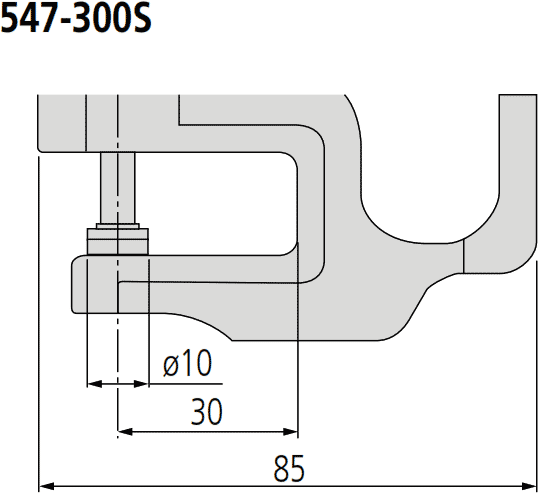

Mitutoyo 547-300S Dimensions

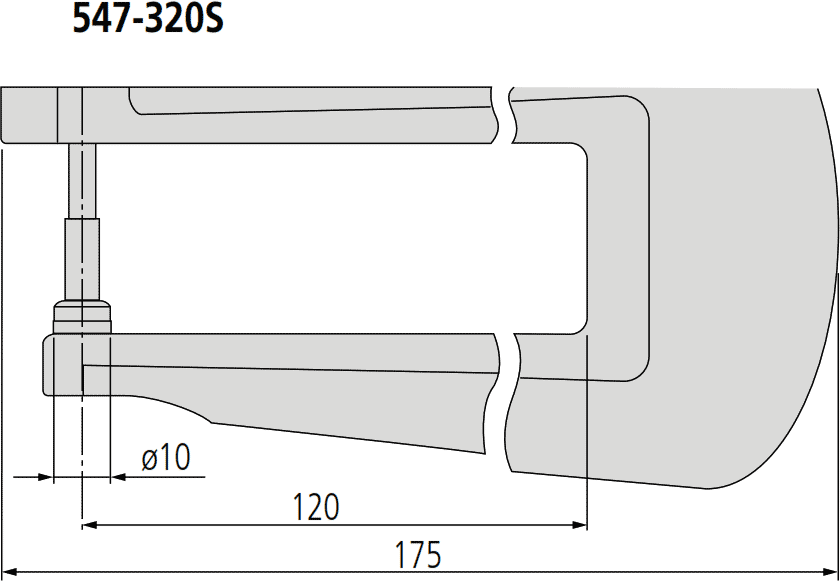

Mitutoyo 547-320S Dimensions

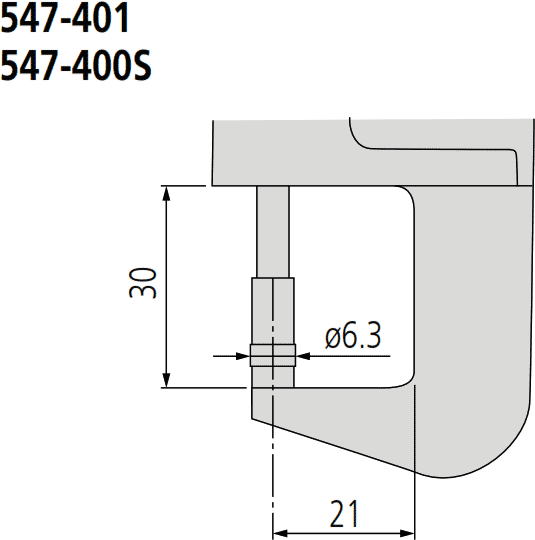

Mitutoyo 547-401 / 547-400S Dimensions

Mitutoyo 547-312S Dimensions

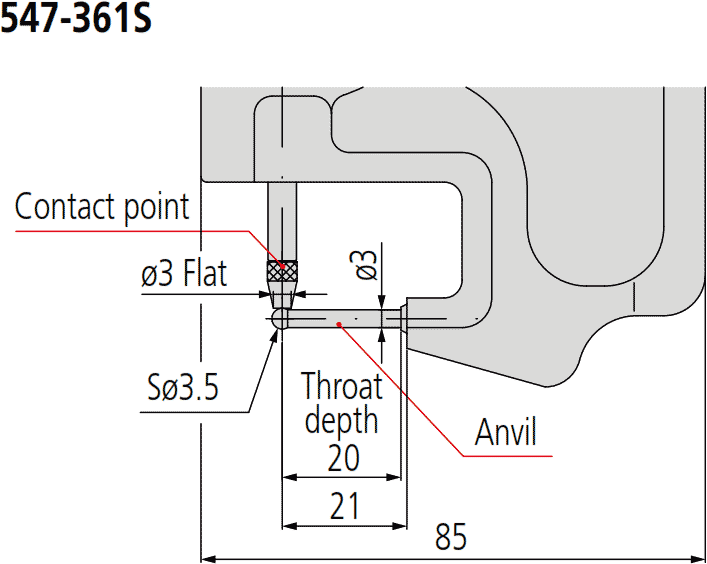

Mitutoyo 547-361S Dimensions

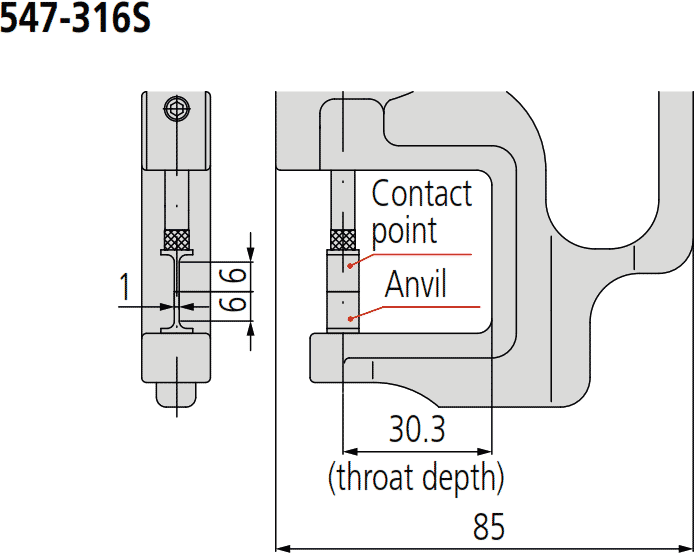

Mitutoyo 547-316S Dimensions
