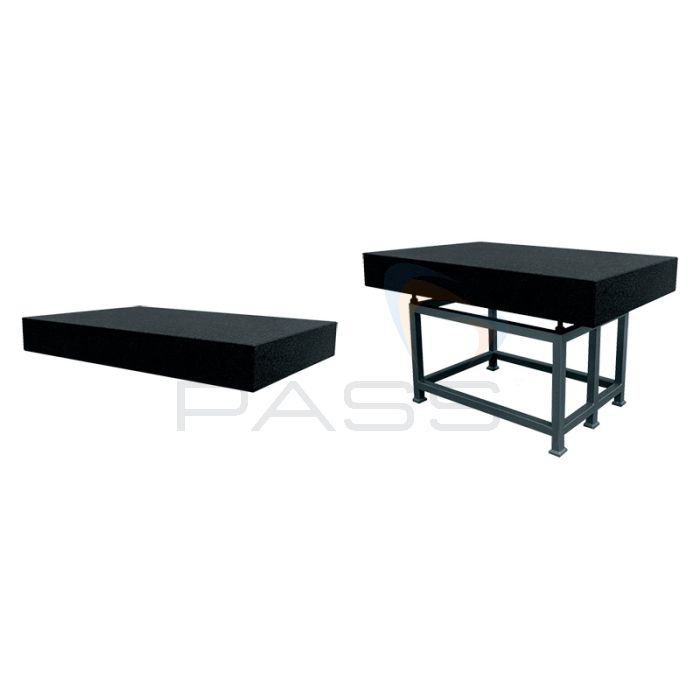

Mitutoyo Series 517 Black Granite Surface Plates (With or Without Stand) - Choice of Grade 0 or 1
- Free from wringing
- Twice as hard as cast iron
- Non-magnetic; low thermal expansion
SERIES 517 - Black Granite Surface Plates
Mitutoyo surface plate made from fine-grained black granite. This material has many advantages compared to cast iron in this application, such as being non-magnetic, rustless, twice as hard, non-burr-forming, and not prone to stickiness.
- Free from wringing, so there is no interruption of work.
- Natural granite is free from deterioration or dimensional change over time.
- Granite surface plates have significant advantages over cast iron surface plates: twice as hard as cast iron; non-magnetic; low thermal expansion.
- Free from burrs or protrusions because of the fine grain structure and insignificant stickiness; this ensures a high degree of flatness over a long service life and causes no damage to workpieces or instruments.
- Use these plates in a stable temperature environment. Since flatness error occurs when there is a temperature difference between the working surface and the underside, avoid working in direct sunlight. Also, do not place a plate in the vicinity of an air conditioner, etc. (Recommended environment: temperature 20±1℃, humidity 58±2%.)
Technical Data
- Grade: Conforms to BS 817 1988
Call 01642 931 329 or complete the form:
Offers
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Grade 1
| SKU | Dimensions (L × W × H) |
|---|---|
| Without Stand | |
| MIT-517-901-1 | 300 × 200 × 65 mm |
| MIT-517-902-1 | 300 × 300 × 65 mm |
| MIT-517-903-1 | 450 × 300 × 75 mm |
| MIT-517-904-1 | 450 × 450 × 75 mm |
| MIT-517-905-1 | 600 × 450 × 75 mm |
| MIT-517-906-1 | 600 × 600 × 75 mm |
| MIT-517-907-1 | 750 × 600 × 100 mm |
| MIT-517-908-1 | 900 × 600 × 100 mm |
| With Stand | |
| MIT-517-909-1 | 900 × 600 × 100 mm |
| MIT-517-910-1 | 900 × 900 × 125 mm |
| MIT-517-911-1 | 1200 × 600 × 100 mm |
| MIT-517-912-1 | 1200 × 900 × 125 mm |
| MIT-517-913-1 | 1200 × 1200 × 150 mm |
| MIT-517-914-1 | 1500 × 1000 × 150 mm |
| MIT-517-915-1 | 1500 × 1200 × 150 mm |
| MIT-517-916-1 | 2000 × 1000 × 150 mm |
| MIT-517-917-1 | 2000 × 1200 × 150 mm |
| MIT-517-918-1 | 2400 × 1200 × 200 mm |
Grade 0
| SKU | Dimensions (L × W × H) |
|---|---|
| Without Stand | |
| MIT-517-901-0 | 300 × 200 × 65 mm |
| MIT-517-902-0 | 300 × 300 × 65 mm |
| MIT-517-903-0 | 450 × 300 × 75 mm |
| MIT-517-904-0 | 450 × 450 × 75 mm |
| MIT-517-905-0 | 600 × 450 × 75 mm |
| MIT-517-906-0 | 600 × 600 × 75 mm |
| MIT-517-907-0 | 750 × 600 × 100 mm |
| MIT-517-908-0 | 900 × 600 × 100 mm |
| With Stand | |
| MIT-517-909-0 | 900 × 600 × 100 mm |
| MIT-517-910-0 | 900 × 900 × 125 mm |
| MIT-517-911-0 | 1200 × 600 × 100 mm |
| MIT-517-912-0 | 1200 × 900 × 125 mm |
| MIT-517-913-0 | 1200 × 1200 × 150 mm |
| MIT-517-914-0 | 1500 × 1000 × 150 mm |
| MIT-517-915-0 | 1500 × 1200 × 150 mm |
| MIT-517-916-0 | 2000 × 1000 × 150 mm |
| MIT-517-917-0 | 2000 × 1200 × 150 mm |
| MIT-517-918-0 | 2400 × 1200 × 200 mm |
