Mitutoyo Series 323 Digimatic Disc Micrometer (0-1" - 3-4") - Choice of Model
- Range from 0 - 1" to 3 - 4"
- Equipped with Ratchet Stop
- Suitable for making root tangent measurements
SKU
323-35X-30

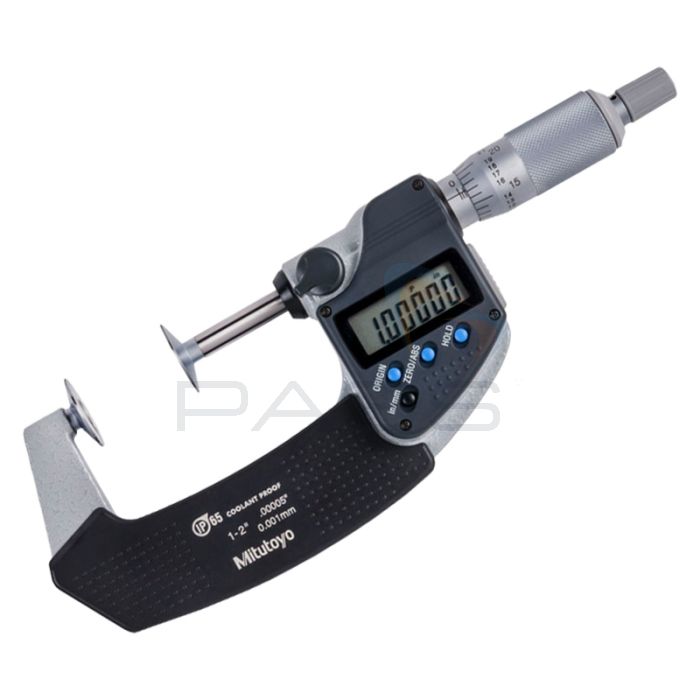

SERIES 323 - Digimatic Disc Micrometer
- Equipped with Ratchet Stop for constant measuring force.
- Supplied with a setting standard (except for 0 - 25 mm / 0 - 1" measuring range).

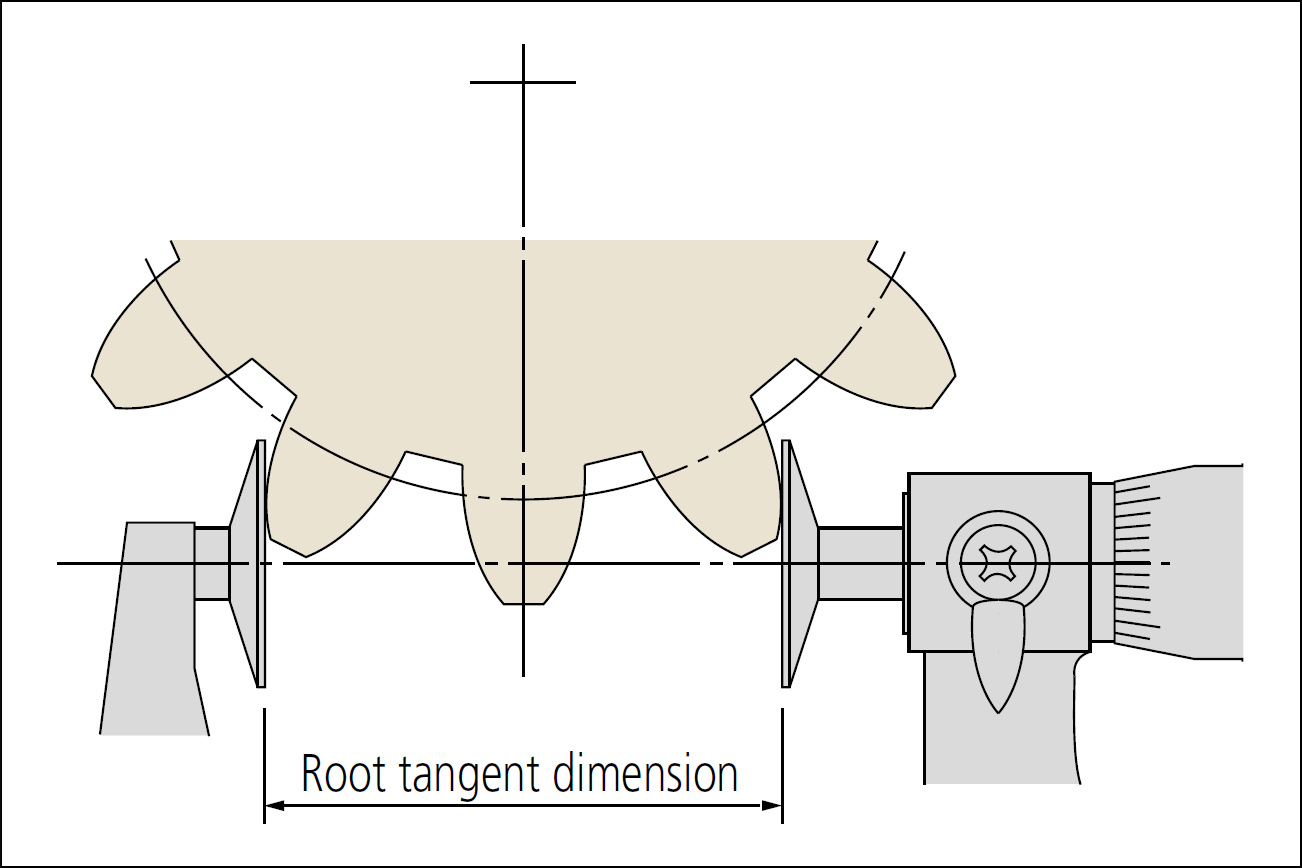

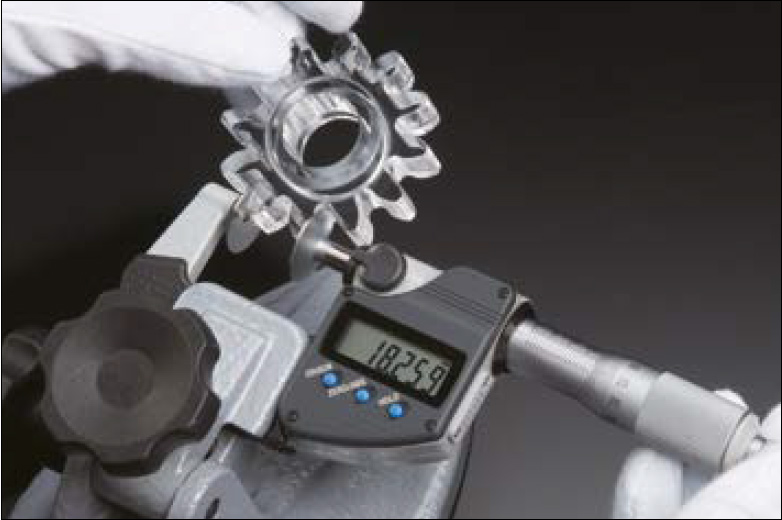

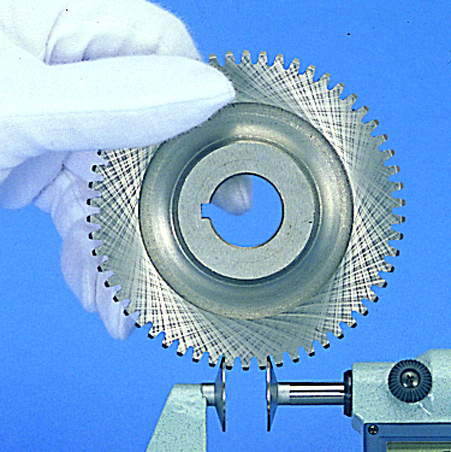

- Can be used for making root tangent measurements on spur gears and helical gears.
Technical Data
- Flatness: .00004" (1 µm)
- Parallelism: .0002" (4 µm) for models up to 2", .0003" (6 µm) for models up to 4"
- Battery: SR44 (2 pcs) 938882
Offers
Free Book with £100+ Mitutoyo Orders
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Technical Information
Specification

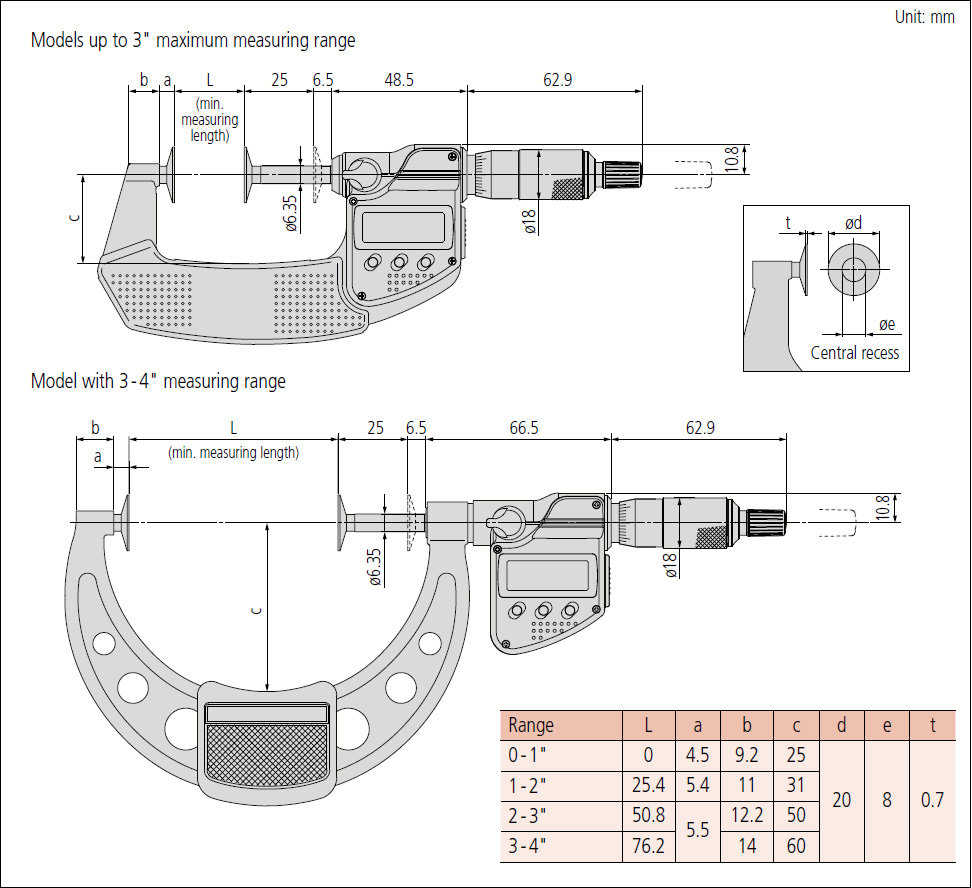

Dimensions
Inch/Metric
| SKU | Range | Resolution | Max. permissible error JMPE | Anvil | Measurable Module |
|---|---|---|---|---|---|
| MIT-323-350-30 | 0 - 1" (0 - 25.4 mm) | .00005" (0.001 mm) | ±.0002" (± 4 µm) | ø.787" (ø20 mm) | 0.5 - 6 |
| MIT-323-351-30 | 1 - 2" (25.4 - 50.8 mm) | ||||
| MIT-323-352-30 | 2 - 3" (50.8 - 76.2 mm) | ±.0003" (± 6 µm) | |||
| MIT-323-353-30 | 3 - 4" (76.2 - 101.6 mm) |
Additional Information
SKU
323-35X-30
