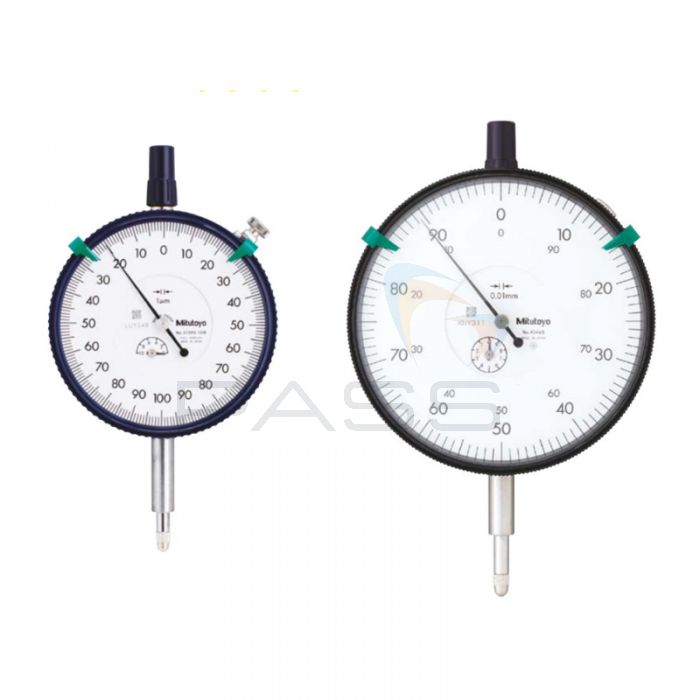

Mitutoyo Series 3 & 4 Large Dial Indicator: 1-100mm / 0.25-4" (Grad: 0.001-0.01mm / .0001-.001") - Choice of Features
The Mitutoyo Series 3 & 4 Large Dial Indicators have a large-diameter dial face for easy reading, as well as a stem and plunger made from high-strength, quench-hardened steel. They are suitable for heavy-duty use. A bezel clamp or lifting lever (OPTIONAL accessory for 3046S, 3047S, 3050S, 3109S-10, and 4046S models) can be attached to either the right or left side of the indicator; tools are not required to attach or remove these parts.
Mitutoyo Series 3 & 4 Features
Metric
| Code No. | Continuous Scale | Balanced Scale | Shockproof | Damper at Lowest Rest Point | Jewelled Bearing | Coaxial Revolution Counter |
|---|---|---|---|---|---|---|
| MIT-3046S | ✓ | - | - | - | - | - |
| MIT-3047S | - | ✓ | - | - | - | - |
| MIT-3050S | ✓ | - | - | ✓ | - | - |
| MIT-3052S-19 | ✓ | - | ✓ | - | ✓ | ✓ |
| MIT-3058S-19 | ✓ | - | ✓ | - | ✓ | ✓ |
| MIT-3060S-19 | ✓ | - | ✓ | - | ✓ | ✓ |
| MIT-3062S-19 | ✓ | - | ✓ | - | ✓ | ✓ |
| MIT-3109S-10 | - | ✓ | ✓ | - | ✓ | - |
| MIT-4046S | ✓ | - | - | - | - | - |
Inch
| Code No. | Continuous Scale | Balanced Scale | Shockproof | Damper at Lowest Rest Point | Jewelled Bearing | Coaxial Revolution Counter |
|---|---|---|---|---|---|---|
| MIT-3414S | ✓ | - | - | - | - | - |
| MIT-3415S | ✓ | - | - | - | - | |
| MIT-3416S | ✓ | - | - | - | - | - |
| MIT-3417S | - | ✓ | - | - | - | - |
| MIT-3424S-19 | ✓ | - | ✓ | - | ✓ | ✓ |
| MIT-3426S-19 | ✓ | - | ✓ | - | ✓ | ✓ |
| MIT-3428S-19 | ✓ | - | ✓ | - | ✓ | ✓ |
| MIT-3802S-10 | ✓ | - | ✓ | - | ✓ | - |
| MIT-3803S-10 | - | ✓ | ✓ | - | ✓ | - |
| MIT-4887S-19 | ✓ | - | ✓ | - | ✓ | ✓ |
Mitutoyo Series 3 & 4 Large Dial Indicator Overview
- Large-diameter dial face for easy reading
- Stem and plunger made from high-strength, quench-hardened steel
- Suitable for heavy-duty use
- Bezel clamp or lifting lever (OPTIONAL) can be attached to either the right or left side of the indicator
What’s Included?
- Your Choice of Mitutoyo Series 3 & 4 Large Dial Indicator
- Bezel Clamp
- Limit Markers
Free Mitutoyo Book with Online Mitutoyo Orders Over £100
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page

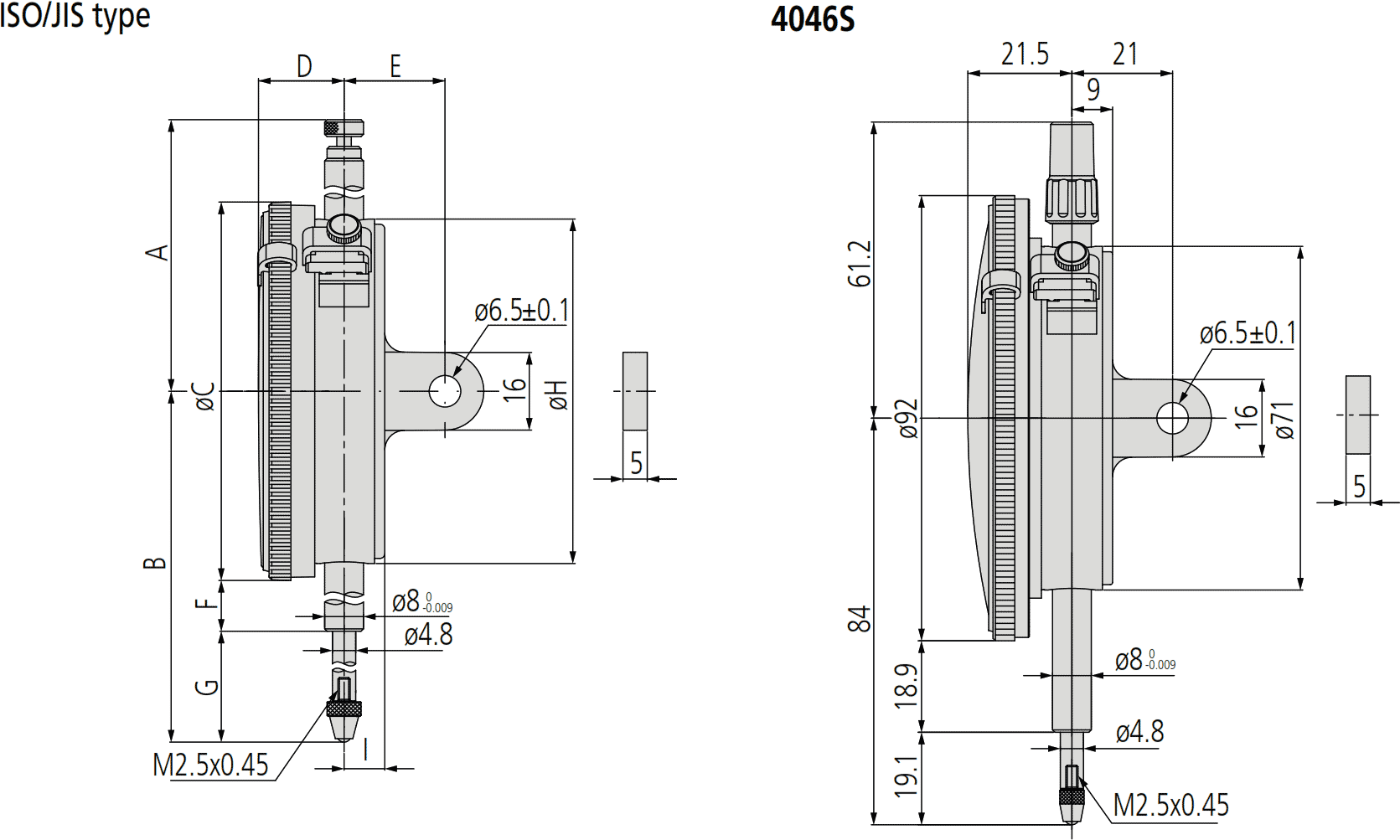

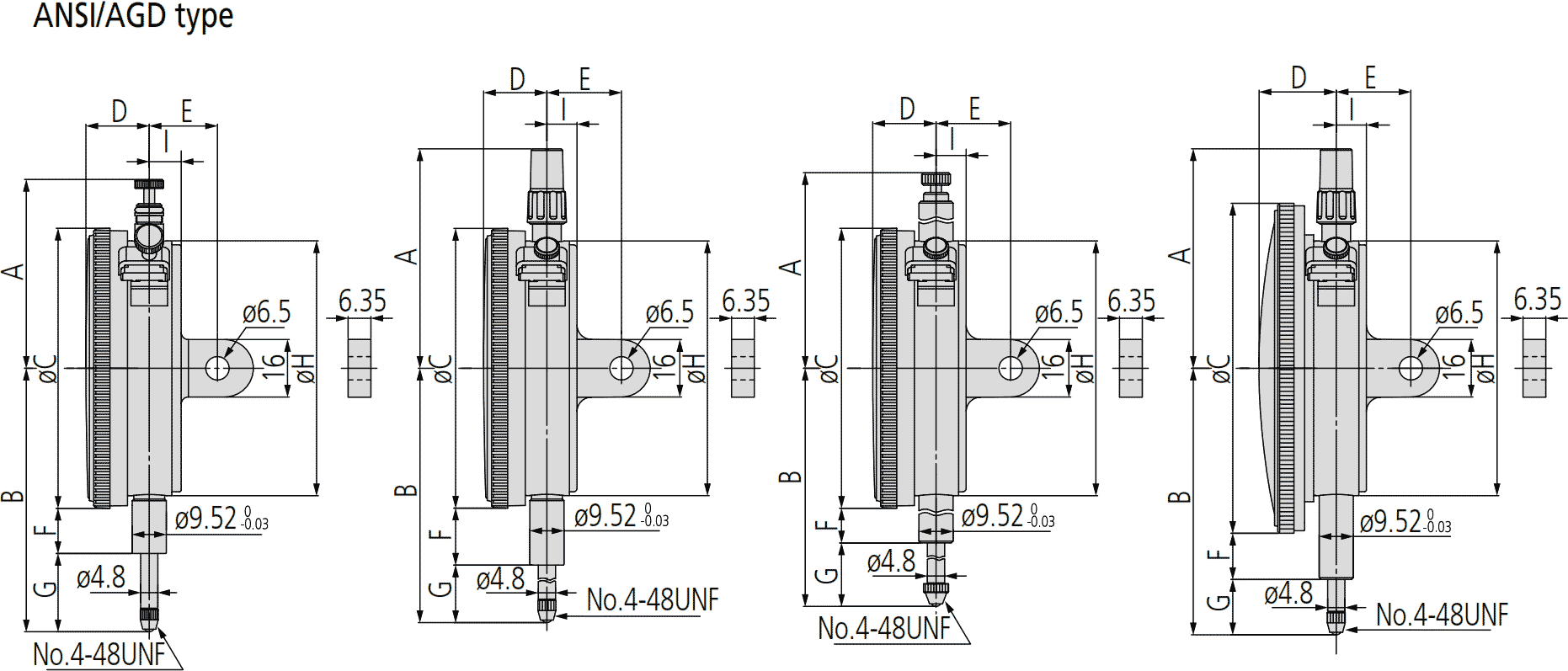

Dimensions (mm)
Metric
| Code No. | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| ISO/JIS Type | |||||||||
| MIT-3046S | 61.2 | 75.5 | 78 | 17.7 | 21 | 15.9 | 20.6 | 71 | 9 |
| MIT-3047S | 61.2 | 75.5 | 78 | 17.7 | 21 | 15.9 | 20.6 | 71 | 9 |
| MIT-3050S | 52.6 | 94 | 78 | 17.7 | 21 | 25.9 | 29.1 | 71 | 9 |
| MIT-3052S-19 | 72.9 | 104.3 | 78 | 17.7 | 21 | 25.9 | 39.4 | 71 | 9 |
| MIT-3058S-19 | 81.9 | 142.3 | 78 | 17.7 | 21 | 43.9 | 59.4 | 71 | 9 |
| MIT-3060S-19 | 120.9 | 202.3 | 78 | 17.7 | 21 | 73.9 | 89.4 | 71 | 9 |
| MIT-3062S-19 | 141.9 | 243.3 | 78 | 17.7 | 21 | 94.9 | 109.4 | 71 | 9 |
| MIT-3109S-10 | 61.2 | 79 | 78 | 17.7 | 21 | 25.9 | 14.1 | 71 | 9 |
| MIT-4046S | 61.2 | 84 | 92 | 21.5 | 21 | 18.9 | 19.1 | 71 | 9 |
Inch
| Code No. | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| ANSI/AGD Type | |||||||||
| MIT-3414S | 52.6 | 73.4 | 78 | 17.7 | 19 | 12.6 | 21.8 | 71 | 9 |
| MIT-3415S | 52.6 | 73.4 | 78 | 17.7 | 19 | 12.6 | 21.8 | 71 | 9 |
| MIT-3416S | 52.6 | 86.1 | 78 | 17.7 | 19 | 12.6 | 34.5 | 71 | 9 |
| MIT-3417S | 52.6 | 86.1 | 78 | 17.7 | 19 | 12.6 | 34.5 | 71 | 9 |
| MIT-3424S-19 | 84 | 149.3 | 78 | 17.7 | 19 | 50.6 | 59.7 | 71 | 9 |
| MIT-3426S-19 | 123 | 198.1 | 78 | 17.7 | 19 | 73.9 | 85.2 | 71 | 9 |
| MIT-3428S-19 | 144 | 244.5 | 78 | 17.7 | 19 | 94.9 | 110.6 | 71 | 9 |
| MIT-3802S-10 | 61.2 | 59.7 | 78 | 17.7 | 19 | 12.6 | 8.1 | 71 | 9 |
| MIT-3803S-10 | 61.2 | 59.7 | 78 | 17.7 | 19 | 12.6 | 8.1 | 71 | 9 |
| MIT-4887S-19 | 123 | 198.1 | 92 | 21.5 | 19 | 66.9 | 85.2 | 71 | 9 |
