Mitutoyo Series 176 Measuring Microscopes - Choice of Model
FREE Mitutoyo Book with Online Mitutoyo Orders Over £100
Description

SERIES 176 - Measuring Microscopes

  • High-magnification eyepiece observation up to 2000X.
  • Variety of standardised stages in sizes to suit practically any application.
  • Observation with a clear and flare-free erect image and a wide field of view.
  • Measuring accuracy that is the highest in its class (and conforms to JIS B7153).
  • ML series, high-NA objectives that are specially designed for the MF series (long working distance type).
  • Illumination unit (reflected/transmitted) selectable from high-intensity LED or halogen bulb types (required).
  • Variable aperture diaphragm (reflected/transmitted) allows observation and measurement while suppressing light diffraction.
  • Coarse/fine feed handles equipped as standard on both sides allow precise focus and observation measurement regardless of handedness.
  • A standard measuring microscope that has a wide variety of optional accessories including a Vision Unit and various digital CCD cameras.
  • A quick-release mechanism is useful for moving the stage rapidly between measuring points when measuring workpieces that are large in size or quantity.
  • The MF measuring microscopes' expandability, such as when used in combination with Mitutoyo's Vision Unit to boost performance or data management on a PC, promises further improved measuring efficiency.

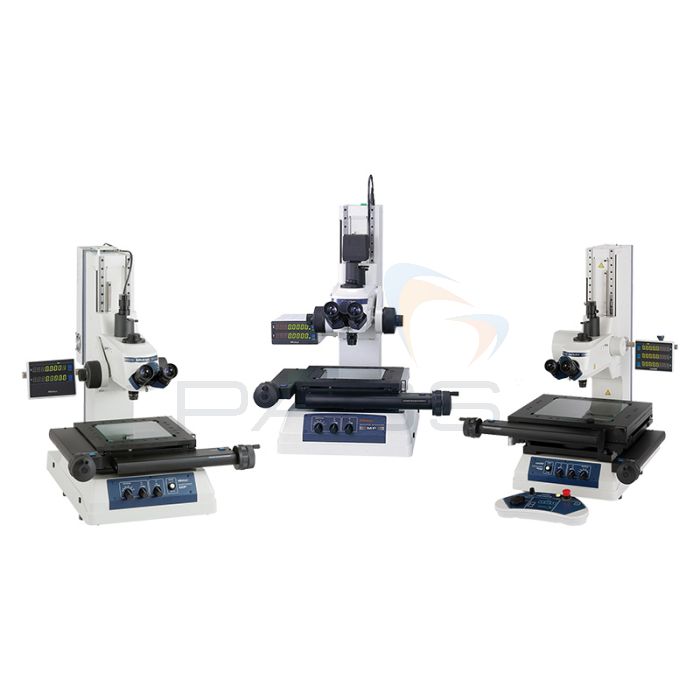

Please note: The binocular tube and illumination unit in the images are optional accessories.

Technical Data

  • Image type: BF (Brightfield) / erect
  • Measurement method: Linear encoder
  • Optical tube (optional): Monocular or binocular tube (inclination: 25°), reticle projection method, with TV mount, optical path ratio (eyepiece/TV mount: 50/50)
  • Eyepiece (optional): 10X, 15X, 20X
  • Objective: 3X (standard accessory); 1X, 5X, 10X, 20X, 50X, 100X (optional accessories)
  • Focusing method:
    • MF-A / -B models: Manual focusing (coarse 30 mm/rev., fine 0.2 mm/rev.)
    • OMF-J model: Motor drive (max. measuring speed 20 mm/s)
  • Display unit:
    • No. of axes: 2 (MF-A model) or 3 (MF-B / -J models)
    • Resolution: 0.001 / 0.0005 / 0.0001 mm, .0001" / .00005" / .00001"
    • Functions: Zero-setting, direction switching, data output (via RS-232C or USB interface)
  • Power supply: 240VAC ±10%, 50/60Hz
  • Remote box functions
    • (MF-J model only): Speed adjustment, coarse/fine speed switching, jog shuttle, emergency stop switch, AF button, counter reset button, data output button, power switch, limit setting (Z-axis)
Offers
FREE Mitutoyo Book with Online Mitutoyo Orders Over £100

This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page

Tech Specs
Without Z-Axis Scale Model MF-A1010D MF-A2010D MF-A2017D MF-A3017D MF-A4020D
SKU MIT-176-861-10 MIT-176-862-10 MIT-176-863-10 MIT-176-864-10 MIT-176-865-10
With Z-Axis Scale Model MF-B1010D MF-B2010D MF-B2017D MF-B3017D MF-B4020D
SKU MIT-176-866-10 MIT-176-867-10 MIT-176-868-10 MIT-176-869-10 MIT-176-870-10
Motor-Driven Z-Axis Scale Model MF-J2017D MF-J3017D MF-J4020D
SKU MIT-176-891E MIT-176-892E MIT-176-893E
XY Stage Travel Range 100 × 100 mm 200 × 100 mm 200 × 170 mm 300 × 170 mm 400 × 200 mm
Focusing Method Manual Focusing (Coarse 30 mm/rev., Fine 0.2 mm/rev.)
Resolution (Switchable) 0.001 / 0.0005 / 0.0001 mm (.0001 / .00005 / .00001")
Measuring Accuracy (at 20℃) X/Y Axes: ±(2.2+2L/100) µm When Not Loaded, JIS B7153, L = Measured Length (mm)
Quick-Release Mechanism X and Y Axes
XY Stage Size 280 × 280 mm 350 × 280 mm 410 × 342 mm 510 × 342 mm 610 × 342 mm
Effective Glass Size 180 × 180 mm 250 × 150 mm 270 × 240 mm 370 × 240 mm 440 × 240 mm
Swivel Function ±5° (Left) ±3° (Left)
Maximum Stage Loading 10 kg 20 kg 15 kg
Maximum Workpiece Height 150 mm 220 mm
Transmitted Illumination Light source Halogen Bulb (12V, 50W) or White LED
Optical System Telecentric Illumination with Adjustable Aperture Diaphragms
Functions Light Intensity Adjustable, Continuous Brightness Adjustment
Surface Illumination Light source Halogen Bulb (12V, 50W) or White LED
Optical System Koehler Illumination with Adjustable Aperture Diaphragms
Functions Light Intensity Adjustable, Continuous Brightness Adjustment
