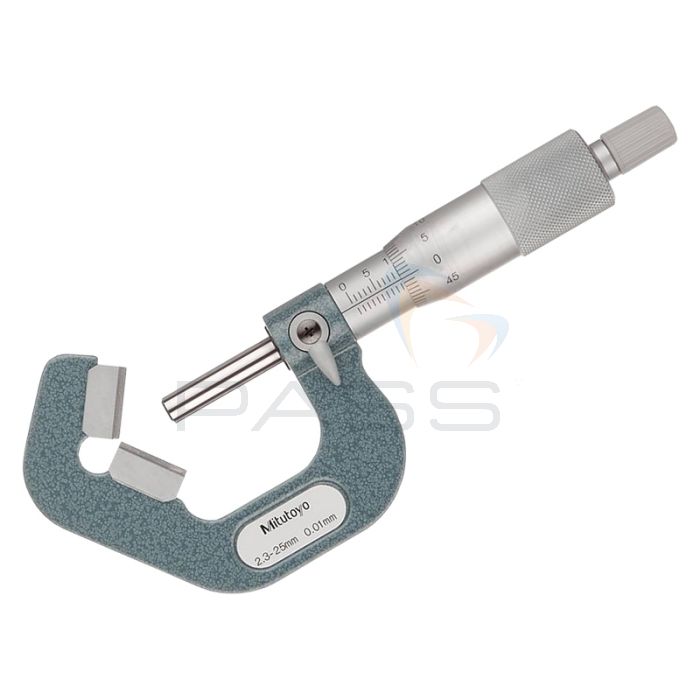

Mitutoyo Series 114 Five-Flute V-Anvil Micrometer (2.3-25 mm - 65-85 mm) - Choice of Model
- Constant measuring force
- Equipped with Ratchet Stop
- Ideal for measuring the pitch diameter of screw threads
SKU
114-1XX
SERIES 114 - Five-Flute V-Anvil Micrometer
- Can measure pitch diameter of screw threads.
- Equipped with Ratchet Stop for constant measuring force.
- Measures the outside diameter of cutting tools (such as taps, reamers, and end mills) which have five flutes.
Offers
Free Book with £100+ Mitutoyo Orders
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Technical Information
Specification
Metric
| SKU | Range | Graduation | Max. permissible error JMPE | Remarks | Anvil | Carbide Tip |
|---|---|---|---|---|---|---|
| MIT-114-137 | 2.3 - 25 mm | 0.01 mm | ±4 µm | — | 108° | Anvil and Spindle |
| MIT-114-165 | 5 - 25 mm | Spindle | ||||
| MIT-114-121 | w/groove | |||||
| MIT-114-122 | 25 - 45 mm | ±5 µm | — | |||
| MIT-114-123 | 45 - 65 mm | ±5 µm | ||||
| MIT-114-124 | 65 - 85 mm | ±7 µm |
Inch
| SKU | Range | Graduation | Max. permissible error JMPE | Remarks | Anvil | Carbide Tip |
|---|---|---|---|---|---|---|
| MIT-114-135 | .09 - 1" | .0001" | ±.0002" | — | 108° | Spindle |
