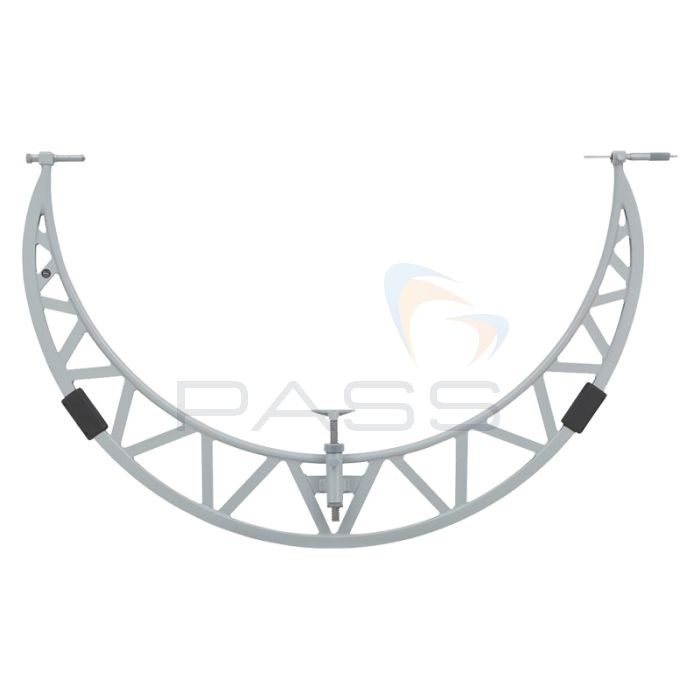

Mitutoyo Series 105 Anvil Extension Collar Micrometer 50mm/2" Spindle Stroke - Choice of Model
- Wide measuring range
- Constant measuring force
- Equipped with Ratchet Stop
SKU
105-4XX
SERIES 105 - Anvil Extension Collar Micrometer
- Measuring faces: carbide.
- 50 mm/ 2" spindle stroke gives you an extended range compared to the standard spindle type.
- The collars have a stable and rugged yet lightweight tube construction and are ideal for large micrometers.
- Wide measuring range with anvil extension collars.
- Equipped with Ratchet Stop for constant measuring force.
Technical Data
- Flatness: 1.3 µm/.000052"
- Setting standard: 2 pcs. for 100 mm span and inch models, 4 pcs. for 200 mm span models
- Spindle feed error: 6 µm
Offers
Free Mitutoyo Book with Online Mitutoyo Orders Over £100
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Technical Information
Specification
Dimensions
Metric
100 mm Span Models
| SKU | Range | Graduation | Extension collars | Parallelism |
|---|---|---|---|---|
| MIT-105-408 | 1000 - 1100 mm | 0.01 mm | 1 pc (50 mm) | 13 µm |
| MIT-105-409 | 1100 - 1200 mm | 14 µm | ||
| MIT-105-410 | 1200 - 1300 mm | 15 µm | ||
| MIT-105-411 | 1300 - 1400 mm | 16 µm | ||
| MIT-105-412 | 1400 - 1500 mm | 17 µm | ||
| MIT-105-413 | 1500 - 1600 mm | 18 µm | ||
| MIT-105-414 | 1600 - 1700 mm | 19 µm | ||
| MIT-105-415 | 1700 - 1800 mm | 20 µm | ||
| MIT-105-416 | 1800 - 1900 mm | 21 µm | ||
| MIT-105-417 | 1900 - 2000 mm | 22 µm |
200 mm Span Models
| SKU | Range | Graduation | Extension collars | Parallelism |
|---|---|---|---|---|
| MIT-105-418 | 1000 - 1200 mm | 0.01 mm | 2 pcs (50 mm, 100 mm) | 14 µm |
| MIT-105-419 | 1200 - 1400 mm | 16 µm | ||
| MIT-105-420 | 1400 - 1600 mm | 18 µm | ||
| MIT-105-421 | 1600 - 1800 mm | 20 µm | ||
| MIT-105-422 | 1800 - 2000 mm | 22 µm |
Inch
| SKU | Range | Graduation | Extension collars | Parallelism |
|---|---|---|---|---|
| MIT-105-428 | 40 - 44" | .001" | 1 pc (2") | .00052" |
| MIT-105-429 | 44 - 48" | .00056" | ||
| MIT-105-430 | 48 - 52" | .0006" | ||
| MIT-105-431 | 52 - 56" | .00063" | ||
| MIT-105-432 | 56 - 60" | .00067" | ||
| MIT-105-433 | 60 - 64" | .00071" | ||
| MIT-105-434 | 64 - 68" | .00075" | ||
| MIT-105-435 | 68 - 72" | .00079" | ||
| MIT-105-436 | 72 - 76" | .00083" | ||
| MIT-105-437 | 76 - 80" | .00087" |
