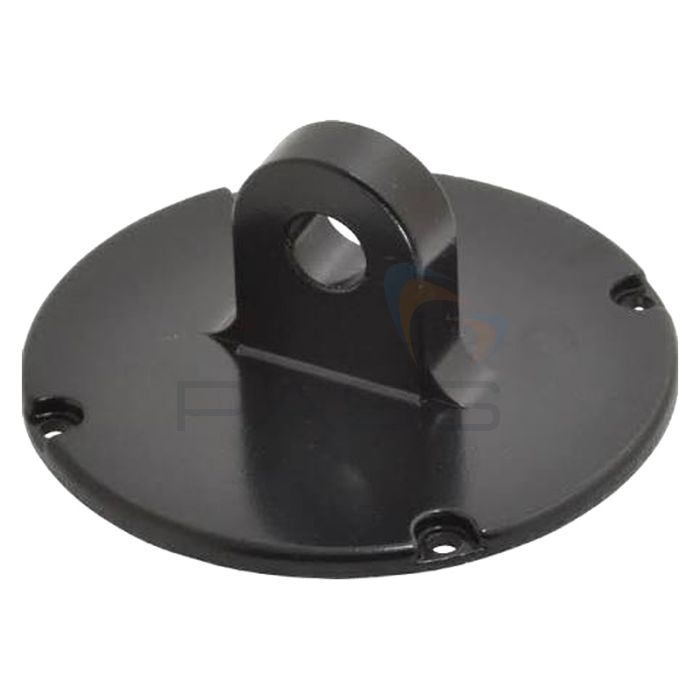

Mitutoyo Back Plate with Centre Lug for Series 1, 2, 3 & 4 Dial Indicators
Description

These Mitutoyo back plates have a centre lug and are suitable for Series 1, 2, 3 & 4 Dial Indicators. Available in A=5mm and A=6.35mm.

Included

  • MIT-101210 Back Plate with Centre Lug ISO Type for Series1, Lug, 5mm
  • MIT-101040 Back Plate with Centre Lug ISO Type for Series 2/ID-C/ID-H/ID-F/ID-S/ID-SS, 5mm
  • MIT-101306 Back Plate with Centre Lug for Series 2/ID-C/ID-H/ID-F/ID-S/ID-SS, 6.35mm
  • MIT-100691 Back Plate with Centre Lug ISO Type for Series 3/4, Lug, 5mm
  • MIT-100797 Back Plate with Centre Lug AGD Type for Series 3/4, Lug, 6.35mm
Tech Specs
  Series Remarks
MIT-101210 1 (ø41 mm) Metric Type
MIT-101040 2 (ø57 mm)
MIT-101306 Inch Type
MIT-100691 3, 4 (ø78, 91 mm) Metric Type
MIT-100797 Inch Type

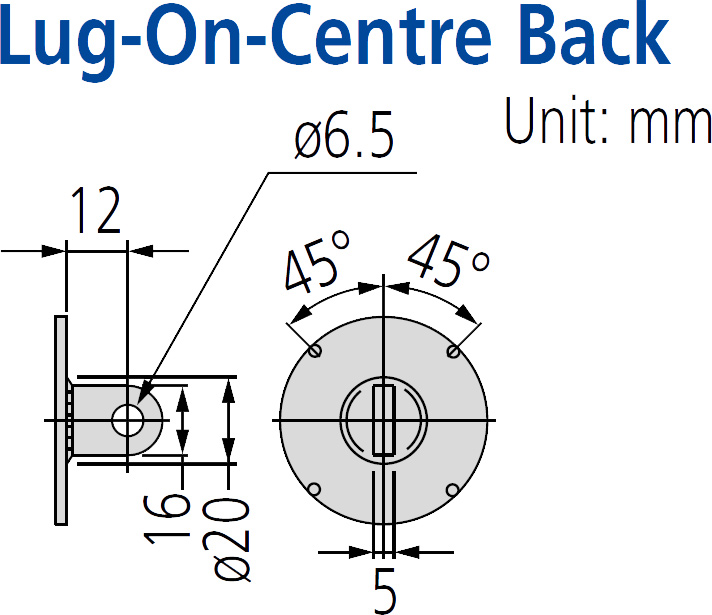

Mitutoyo Back Plate with Centre Lug dimensions.
