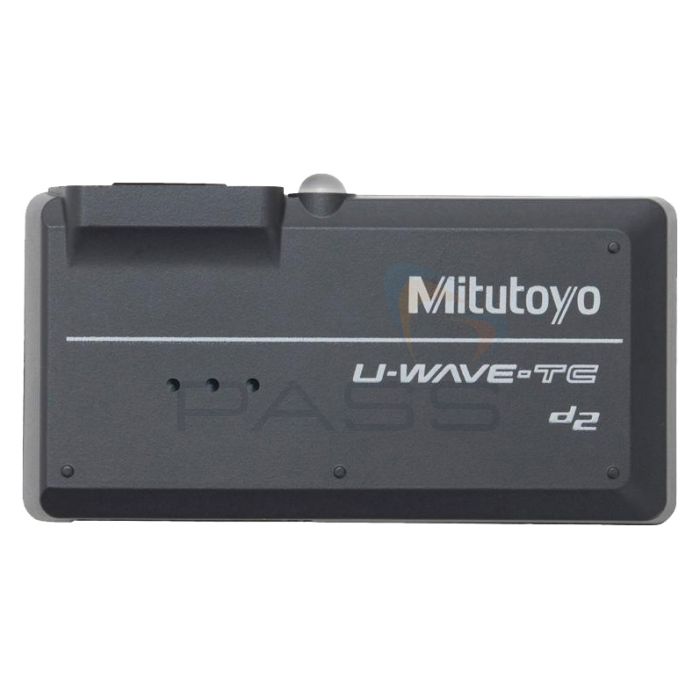

Mitutoyo 264-621 U-WAVE Fit, Buzzer Type, Wireless Transmitter
- Easy to export data
- Low power consumption
- Approx. 20 m (within visible range)
SKU
MIT-264-621
MPN
264-621
The Mitutoyo 264-621 offers the following:
- An IP67 transmitter is available.
- Approx. 20 m (within visible range).
- Low power consumption: 400,000 data transmissions with one battery.
- The transmitter confirms data transfer by a buzzer sound or a red/green LED signal.
- Communication frequency: 2.4GHZ wireless system for reliable and secure data transmission.
- U-WAVE Event will also support a data request from a PC. This is ideal if the system is installed on an inaccessible side.
- Easy to export data to Microsoft Excel or other professional SPC software applications like Mitutoyo MeasurLink.
£223.00
£267.60 inc vat
Only 1 in Stock:
Available Next Working Day*
Free Mitutoyo Book with Online Mitutoyo Orders Over £100
Find Out More
Offers
Free Mitutoyo Book with Online Mitutoyo Orders Over £100
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Technical Information
Specification
| Wireless Communication Protocol | Proprietary (2.4 GHz by original specification based on IEEE 802.15.4) |
|---|---|
| Modulation Method | DS-SS (Direct Sequence Spread Spectrum) |
| Functions | Measurement data transmission (cancel command, error command) and U-WAVE-R scan |
| Measuring Instruments | 100, 150, 200, 300mm IP67 caliper/standard caliper |
| Remarks | Standard |
| Data Reception Indication | Buzzer and LED (green, red, orange) |
| Communication Distance | Approx. 20 m (within visible range) |
| Communication Speed kbps | 250 |
| Communication with Measuring Tool | Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification |
| Communication Frequency | 2.4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval) |
| Transmission Output | 2.5 mW (4 dBm) or below |
| Power Supply | Battery CR2032 x 1 pc. |
| OS Compatibility | Windows 2,000 Professional (≥SP4), Windows XP Professional (≥SP2), Windows XP Home Edition (≥SP2), Windows Vista, Windows 7 (32bit, 64bit), Windows 8, 8.1, 10 (32bit, 64bit) |
| Battery Life | Approx. 400000 transmissions |
| Dimensions (WxDxH) | 56 x 30.4 x 11.5 |
| Mass | 20 |
