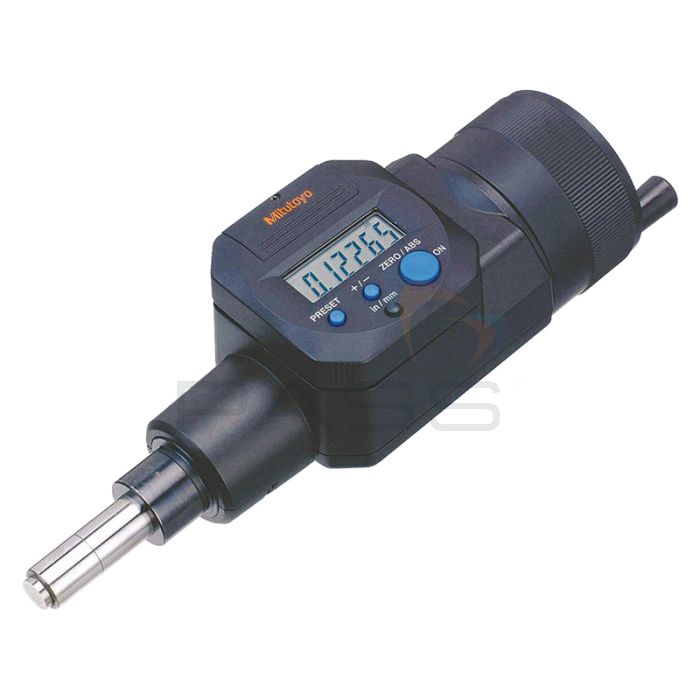

The Mitutoyo MIT-164-164 digital, non-rotating spindle micrometer head with plain ø.71" stem and flat spindle tip. The display is rotatable for viewing convenience. Digimatic data output. Suitable for the Series 176 Toolmakers' Microscope.
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Digital/Analog | Digital |
---|---|
Inch-Metric | Inch/Metric |
Range | 0 - 2 " |
Digital Step | 0.00005"/0.001 mm |
Maximum Permissible Error J MPE | ±0.00015" |
Spindle End | Flat |
Stem Ø | 0.709" mm |
Stem | Flat |
Remarks | Non-rotating spindle |
Display | LCD, character Height 7.5 mm |
Measuring Face | Carbide Tipped |
Power Supply | 2 batteries SR-44 |
Battery Life | Approx. 1.8 years |
Delivered | Including 2x Batteries SR-44 |
ABS / INC (INC ZERO) | Yes |
Auto Power OFF After 20 min. Non Use | Yes |
2 x PRESET | Yes |
Counting Direction Switchable | Yes |
Mass | 490 g |
Reviews
SKU | MIT-164-164 |
---|---|
Manufacturer Part Code | 164-164 |
