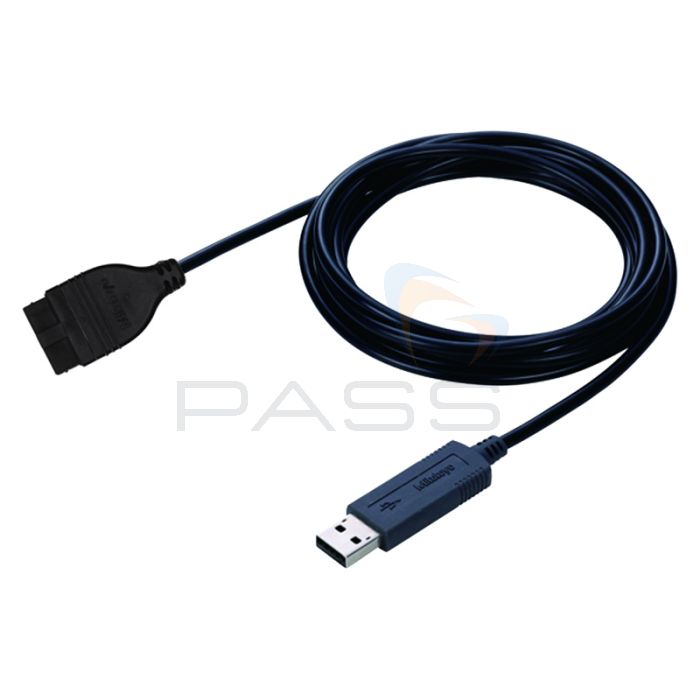

Mitutoyo 06AFM380D USB Input Tool Direct (Digimatic USB), Flat 10-Pin Type
- USB Input Tool SPC data cable
- Suitable for the Series 543 Digimatic High Accuracy/Functionality Indicator ID-H
SKU
MIT-06AFM380D
MPN
06AFM380D
A Mitutoyo MIT-06AFM380D USB Input Tool SPC data cable (D) to suit compatible measuring tools. Suitable for the Series 543 Digimatic High Accuracy/Functionality Indicator ID-H.
Key Features
- This input tool allows you to directly connect Digimatic measuring devices to a USB interface, without needing additional software.
- Measurement data is converted into keyboard codes, enabling interaction with any program working with keyboard entries.
- You can also connect to a USB with a fixed COM assignment in Microsoft Windows as channel identification (VCP).
- The USB-ITPAK software lets you easily create Microsoft Excel worksheets.
- Multi-channel input for measurement values, Microsoft Excel.
- Cables can be cascaded via a standard USB hub.

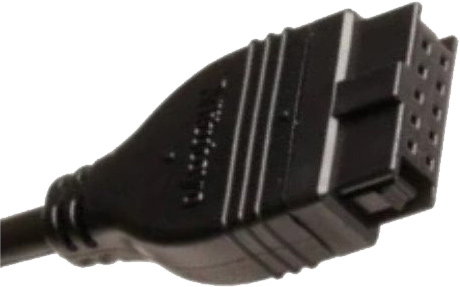

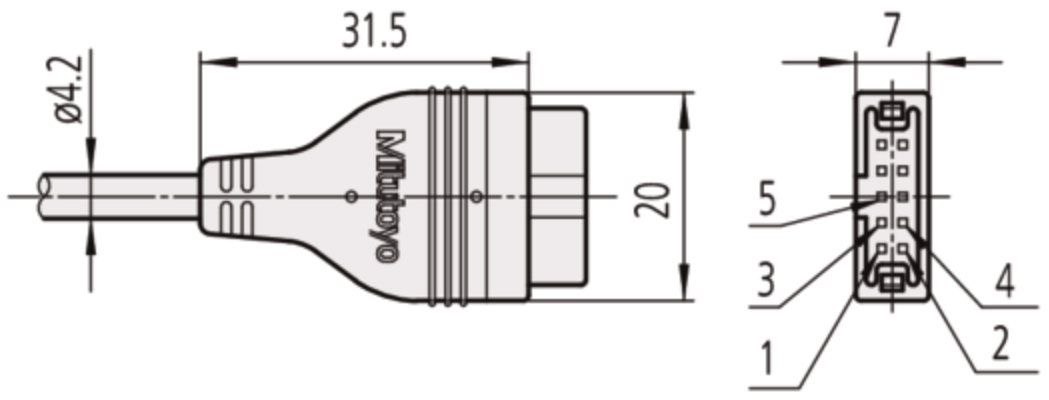

Type D Connector
Advantages of the Digimatic USB Connections
| Application | Situation | Software USB-ITPAK | Data Format | Remarks |
|---|---|---|---|---|
| Arbitrary software which expects a keyboard code | Only a USB Input tools signal cable required | Software is not needed | Measured value as keyboard format (HID = Human Interface Device) | The footswitch cannot be connected |
| Commercial statistics software, such as Mitutoyo's MeasurLink | A USB input tools signal cable and the software USB ITPAK are required | For each measuring instrument (cable) a fixed assigned virtual COM-Port is generated once; afterwards, Software USB ITPAK becomes inactive | MUX-10 Specification (e.g. 01A+138.626) with fixed COM assignment as channel identification | — |
| Arbitrary software, which expects a keyboard code, e.g. Word, txt-format | — | - Connected measuring instruments and footswitches are selected and assigned - Terminator is determined - Procedure is registered as a part program |
Transmission of a measured value in text format (VCP = as virtual COM port) | — |
| Microsoft® Excel® | — | - Connected measuring instruments and footswitches are selected and assigned - Performs organization of the Microsoft® Excel®-table, i.e. the transferred measured values are written into the predefined cells |
Measuring report Microsoft® Excel®-format and character sequence of max. 31 characters (e.g. text input) | — |
Offers
Free Book with £100+ Mitutoyo Orders
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Technical Information
Specification
| Cable Length | 2 m |
|---|---|
| Model | D |
| Output | USB HID and VCP (with optional software USB-ITPAK) |
| OS Compatibility | Windows® 2000 Professional (≥SP4), Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®/7 (32bit,64bit), Windows® 8, 8 .1, 10 (32bit,64bit) |
| Remarks | USB Input Tool Direct Cable Plain (2m) e.g. for ID-H/ID-F Indicator |
| Max Connectable Devices | Microsoft® Windows® 2,000, XP: 100 cables Windows® Vista®, 7, 8, 8. 1, 10: 20 cables |
