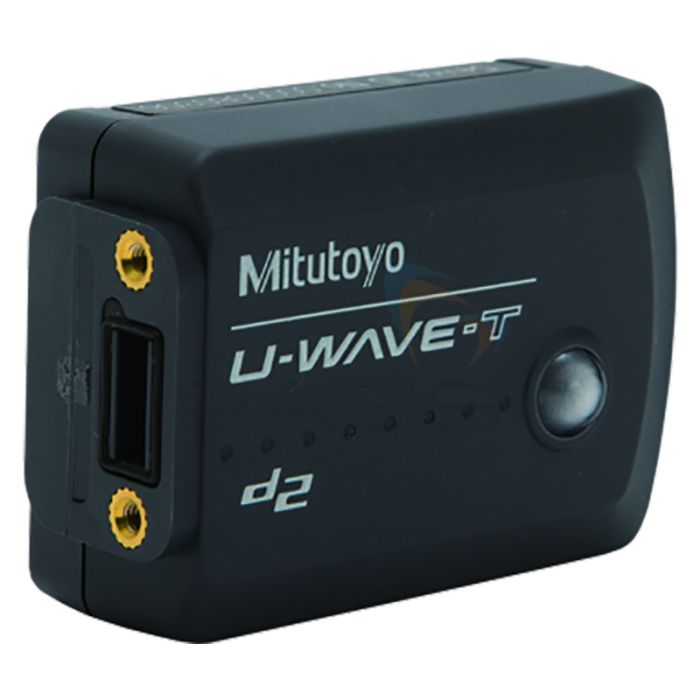

SERIES 02AZD – U-WAVE-T Wireless Communication System
This wireless communication system transfers data directly from a Digimatic measuring instrument to a PC, thus avoiding the need for long cable runs.
- 20-metre communication distance (line of sight)
- Easy data export to Microsoft Excel or other professional SPC software applications like Mitutoyo MeasurLink.
- Data transfer is confirmed by the transmitter through an LED
- An IP67-rated transmitter
- Up to 400,000 data transmissions with a single battery
- U-WAVE Event will also support a data request from a PC. This is ideal if the system is installed on an inaccessible side
- Communication frequency: 2.4GHZ wireless system for reliable and secure data transmission
Technical Data
- Wireless Communication Protocol: IEEE 802.15.4
- Modulation Method: DS-SS (Direct Sequence Spread Spectrum)
- Communication
- Distance: Approx. 20 m line of sight
- Speed: 250 kbps
- Frequency: 2.4 GHz (ISM: universal frequency band)
- User Band: 15 channels (2.405 to 2.475 GHz at intervals of 5 MHz)
- OS Compatibility: Windows 7 / 8 / 10 (32-bit, 64-bit)
This winter when you buy over £100 worth of Mitutoyo products online you’ll receive either a free Mitutoyo Engineers’ Reference Book or a Metrology Handbook depending on the value of your item(s). Available for a limited time or while stocks last, this offer is perfect for metrology professionals and engineers requiring a reference guide complete with conversions, measurement principles, standards, and practices. For further details visit the Mitutoyo Online Offer Free Book Page
Wireless Communication Protocol | Proprietary (2,4 GHz by original specification based on IEEE 802.15.4) |
---|---|
Modulation Method | DS-SS (Direct Sequence Spread Spectrum) |
Measuring Instruments | Indicator, 3-Point Inside Micrometer, Carbon Fibre Caliper, Height Gauge, a.s.o |
Remarks | IP67 |
Data Reception Indication | LED (green, red, orange) |
Communication Distance | Approx. 20 m (within visible range) |
Communication Speed kbps | 250 |
Communication with Measuring Tool | Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification |
Communication Frequency | 2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval) |
Power Supply | Battery CR2032 x 1 pcs. |
Transmission Output | 2.5 mW (4 dBm) or below |
OS Compatibility | Windows 2000 Professional (≥SP4), Windows XP Professional (≥SP2), Windows XP Home Edition (≥SP2), Windows Vista, Windows® 7 (32bit, 64bit), Windows 8, 8. 1, 10 (32bit, 64bit) |
Battery Life | Approx. 400000 transmissions |
Reviews
SKU | MIT-02AZD730G |
---|---|
Manufacturer Part Code | 02AZD730G |
