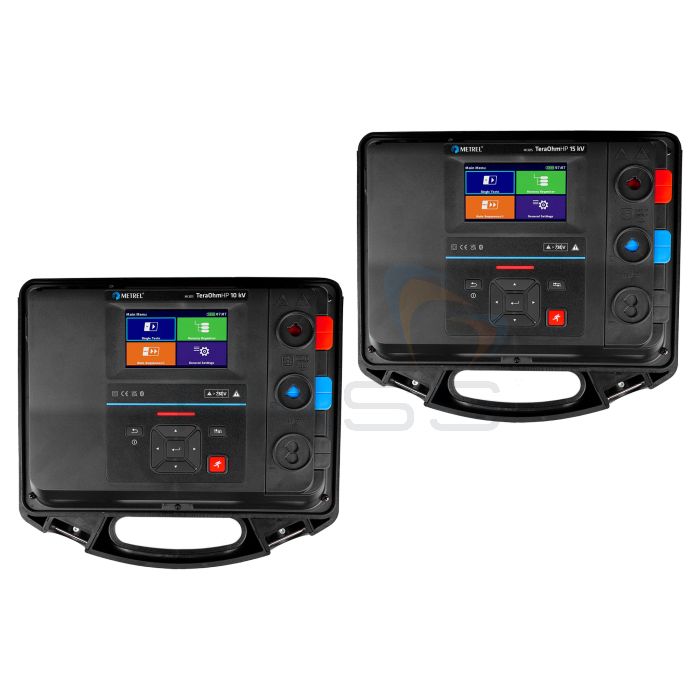

Metrel TeraOhmHP High Voltage Insulation Tester
- Burn or breakdown mode
- Live voltage detection > 30 V
- Two models available: 10 or 15 kV
SKU
MI-3211/5
The Metrel TeraOhmHP analyses insulation resistance in demanding environments. Portable and powered by either battery or mains, the IP65-rated instrument protects against dust and water. The two models available can generate high DC test voltages of up to 10 or 15 kV.
The testers meet CAT IV safety standards and have an intuitive user interface. Touch screen and key-based control allow effortless navigation through the menu-driven LCD. Additionally, the TeraOhmHP test leads with coded banana connectors secure connections and protect against accidental removal.
Key Features
- Insulation resistance measurement
- Generator stator testing
- Insulation resistance measurement of transformer's windings
- Insulation of long cables
- Diagnostic test (PI, DAR, DD)
- Step voltage test
- Withstanding voltage test (DC) up to 10 or 15 kV
- Voltage and frequency measurement up to 999 V TRMS
- Capacitance measurements
- Insulation resistance measurements of up to 20 or 35 TΩ
- Safety-rated category up to CAT IV 600 V or 1000 V to 3000 m
- Dual-case design
- Coded banana connectors with a locking feature
- Newly designed HV crocodiles with a better grip
- Li-ion battery 4400 mAh
- Adjustable test voltage (50 V...10 or 15 kV) 50 V and 100 V step
- Maximum short circuit/charge current: >4 mA (mains supply) or >2.4 mA (battery supply)
- Charging rate for capacitive load <2.7 s/µF at 10 kV or <4 s/µF at 15 kV
- Discharging rate for capacitive load < 0.24 s/µF at 10 kV or <1.6 s/µF at 15 kV (mains supply)
- 8 GB memory SD card for data saving
- Burn or breakdown mode
- Programmable timers
- Automatic discharge of test object after finished measurement
- Live voltage detection > 30 V
- IP65 case rating
- User-friendly and intuitive operation
- High voltage breakdown detection
- Programmable AUTO SEQUENCEs
- Auto adjustment function
- Measurement results in numerical and graphical form
- PC software MESM for downloading and analysing test results and test report printing
- Isolated RS-232 and USB communication ports, Bluetooth interface
- High-quality accessories, including shielded test leads
- High EM interference protection: Input AC noise rejection 8 mA, input AC voltage noise rejection 1.5 kV
- Averaging of the result (5, 10, 30, 60)
- Mains and rechargeable battery power supply
- Dimensions (w x h x d): 360 x 160 x 330 mm
- Weight (with batteries, without accessories): 6.2 kg
What's Included?
MI 3211 TeraOhmHP 10 kV
- Instrument MI 3211 TeraOhmHP 10 kV
- A 1794 HV test lead, 3m, Black
- A 1795 HV test lead, 3m, Blue
- A 1793 HV test lead, 3m, Red
- A 1728 Power cable, 2m, 3 x 0.75mm2
- A 1727 USB cable TypeA/B
- A 1772 Soft carrying bag, Size: XXL
- Metrel ES Manager BASIC Licence
- SW 1201 Metrel ES Manager (FOC Download online)
- Short-form instruction manual
- Calibration certificate
MI 3215 TeraOhmHP 15 kV
- Instrument MI 3215 TeraOhmHP 15 kV
- A 1794 3M HV test lead, 3m, Black
- A 1795 3M HV test lead, 3m, Blue
- A 1793 3M HV test lead, 3m, Red
- A 1728 Power cable, 2m, 3 x 0.75mm2
- A 1727 USB cable TypeA/B
- A 1772 Soft carrying bag Size: XXL
- Metrel ES Manager BASIC Licence
- SW 1201 Metrel ES Manager (FOC Download online)
- Short-form instruction manual
- Calibration certificate
Product Range
- Metrel MI 3211 TeraOhmHP High Voltage Insulation Tester, 10 kV
- Metrel MI 3215 TeraOhmHP High Voltage Insulation Tester, 15 kV
Technical Information
Specification
| MI 3211 - 10 kV | MI 3215 - 15 kV | ||
|---|---|---|---|
| Extra Features | |||
| AUTOSEQUENCES | AUTOSEQUENCE Programmable | ✔ | ✔ |
| Advanced User Interface | Colour Display | ✔ | ✔ |
| Main Features | |||
| Voltage DC | Voltage DC | ✔ | ✔ |
| Voltage AC | Frequency | ✔ | ✔ |
| Voltage TRMS | ✔ | ✔ | |
| Mains voltage | ✔ | ✔ | |
| Insulation Resistance | Test Voltage 50 V | ✔ | ✔ |
| Test Voltage 100 V | ✔ | ✔ | |
| Test Voltage 250 V | ✔ | ✔ | |
| Test Voltage 500 V | ✔ | ✔ | |
| Test Voltage 550 V | ✔ | ✔ | |
| Test Voltage 1000 V | ✔ | ✔ | |
| Test Voltage 1200 V | ✔ | ✔ | |
| Test Voltage 1500 V | ✔ | ✔ | |
| Test Voltage 2500 V | ✔ | ✔ | |
| Test Voltage 5000 V | ✔ | ✔ | |
| Test Voltage 10000 V | ✔ | ✔ | |
| Test Voltage 15000 V | ✘ | ✔ | |
| Max Resistance Range | 20 TOhm | 35 TOhm | |
| Calculation of PI | ✔ | ✔ | |
| Calculation of DAR | ✔ | ✔ | |
| Calculation of DD | ✔ | ✔ | |
| Graph R(t) | ✔ | ✔ | |
| Test Voltage Display | ✔ | ✔ | |
| Programmable Test Voltage with Small Steps | ✔ | ✔ | |
| Adjustable Test Time | ✔ | ✔ | |
| DC Ramp Voltage Test/Varistor Test | ✔ | ✔ | |
| Step Voltage TEST | ✔ | ✔ | |
| Automatic Discharge | ✔ | ✔ | |
| Leakage CurrentDC Insulation Leakage✔✔ | |||
| Additional Features | |||
| PASS / FAIL Indicators | PASS/FAIL Indicators | ✔ | ✔ |
| Low Pass Filter | Noise Immunity Filter | ✔ | ✔ |
| Data Averaging | ✔ | ✔ | |
| Display | LCD | ✔ | ✔ |
| Back Light | ✔ | ✔ | |
| Keyboard | Virtual Keyboard | ✔ | ✔ |
| Power Supply | Rechargeable Batteries in Standard Delivery | ✔ | ✔ |
| Battery Powered | ✔ | ✔ | |
| Power Supply 115 V (50-60Hz) | ✔ | ✔ | |
| Power Supply 230 V (50-60Hz) | ✔ | ✔ | |
| Graphical User Interface | Bar Graph | ✔ | ✔ |
| Communication Port | Communication Port USB | ✔ | ✔ |
| Communication Port RS232 - PS/2 | ✔ | ✔ | |
| Built-in Bluetooth | Built-in Bluetooth | ✔ | ✔ |
| Memory | microSD Memory Card | ✔ | ✔ |
| Downloadable | ✔ | ✔ | |
| Uploadable | ✔ | ✔ | |
| IP Protection | IP 65 | ✔ | ✔ |
| Protection Category | CAT IV | 600 V | 1000 V |
| Special Accessories | |||
| PC Software Package | PC Software Package | ✔ | ✔ |
| Battery Charger | Battery Charger | ✔ | ✔ |
| Electrical Energetics | |||
| Renewable Energy Sources | Generator Stator Testing | ✔ | ✔ |
| Power Distribution | Insulation Resistance Measurement of Transformer's Windings | ✔ | ✔ |
| Insulation of Long Cables | ✔ | ✔ | |
| Standards Applied | |||
| Instrument Safety Towards User | IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements | ✔ | ✔ |
| IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement | ✔ | ✔ | |
| IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits | ✔ | ✔ | |
| IEC/EN 61010-2-034 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-034: Particular requirements for measurement equipment for insulation resistance and test equipment for electric strength | ✔ | ✔ | |
| EMC safety | IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements | ✔ | ✔ |
