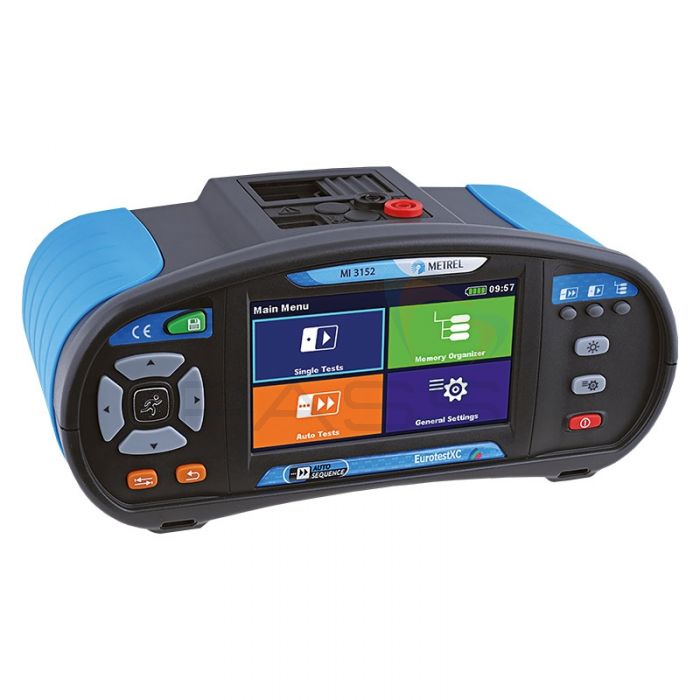

Metrel MI3152-L Eurotest XC Multifunction Installation Tester Kit
Free Gift
- Suitable for conducting installation safety tests in accordance with IEC/ EN 64557
- A comprehensive, easy-to-use, efficient, non-downloading tester
- Can be upgraded to a downloadable tester
SKU
MI3152-L
MPN
MI3152-ES
Metrel MI3152-L Eurotest XC Multifunction Installation Tester
The Metrel MI3152-L Eurotest XC Multifunction Installation Tester is a sophisticated, comprehensive, easy-to-use test instrument. It features an eclectic array of electrical tests and measurement functions making it suitable for the following applications:
- Testing TT, TN, and IT systems
- Testing single- and multi-phase systems
- Initial and periodic testing of domestic installations
- Maintenance work
- Checking lighting installations
- Checking medical installations
- Testing fire brigade, military, and police vehicles
- Testing Electrical Vehicle Supply Equipment (EVSE)
- Checking mobile video/ audio equipment, concert halls, and fair playgrounds
- Applications on construction sites
This application's versatility is possible due to the tester’s extensive measurement capabilities. This instrument can perform the following checks:
Measurement Capabilities
- 50V to 1000V DC insulation resistance tests
- Varistor test
- 200mA DC continuity of PE conductor test with polarity change
- 7mA continuity of PE conductor test (without tripping RCDs)
- Line/ Loop impedance tests
- Loop impedance with a Trip Lock RCD function
- True-RMS voltage measurements
- True-RMS frequency measurements
- Phase sequence tests
- Power and THD measurements (up to the 12th harmonic)
- General RCD testing
- Selective RCD testing (chose from types AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, and PRCD-S)
- Earth resistance tests using the 3-wire and 2-clamp method
- First fault leakage current measurements
- Insulation Monitoring Devices (IMDs) test
Optional Testing Configurations
Further to this, it is possible to configure this instrument so that it is capable of performing the following checks:
- True-RMS leakage and load current tests
- Illumination measurements
- High-resolution loop impedance tests
- Cable location checks
All these checks are OPTIONAL, please get in touch with our sales team BEFORE purchase for further information.
The Metrel MI3152-L Eurotest XC Multifunction Installation Tester features several automatic test sequences including AUTO SEQUENCE testing of TN, TT, and IT earthing systems; AUTO SEQUENCE testing of EVSE; an automated impedance testing procedure combing loop and line testing (Z AUTO); and an automated RCD testing procedure.
Further to this, it is capable of monitoring three voltages in real time and can perform functional inspections. It will also conduct true-RMS current measurements up to RCD tests.
In addition to this, it also includes integrated fuse tables for automatically evaluating the results of loop/ line impedance tests, as well as built-in help screens that facilitate on-site referencing. These additional features improve both the instrument’s testing efficiency and its ease of use. Also adding to this instrument’s efficiency and ease of use is its large, colour, touchscreen display, and ability to filter results according to a specified area group.
Moreover, this instrument can communicate with a PC, Android tablets, Android smartphones, and QR/ barcode scanners and printers (NOT included) via Bluetooth.
It is supplied with an integrated charger and rechargeable batteries, improving the practicality of this instrument and reducing its downtime.
It is also compatible with several ADDITIONAL accessories that can be used to extend its measurement capabilities, for instance, it can be used with a Ro-adapter to conduct specific earth resistance tests.
The Metrel MI3152-L Eurotest XC Multifunction Installation Tester is suitable for conducting installation safety tests in accordance with the IEC/ EN 61557 specifications. This non-downloading tester is versatile, simple to use, and efficient; it is ideal for many applications. Please see the video below for further information.
Videos
Electrical Installation Testing | MI 3152 EurotestXC | Features Overview
Key Features
- A non-downloadable multifunction installation tester
- Can be upgraded to become a downloadable tester, please call for details
- A sophisticated, comprehensive, easy-to-use electrical test instrument
- Suitable for testing a multitude of electrical installation systems and equipment
- Test TT, TN, and IT systems
- Test single- and multi-phase systems
- Can be used for initial and periodic testing of domestic installations
- Suitable for maintenance work
- Check lighting installations
- Check medical installations
- Test fire brigade, military, and police vehicles
- Test Electrical Vehicle Supply Equipment (EVSE)
- Check mobile video/ audio equipment, concert halls, and fair playgrounds
- Suitable for applications on construction sites
- 50V to 1000V DC insulation resistance tests
- Varistor test
- 200mA DC continuity of PE conductor test with polarity change
- 7mA continuity of PE conductor test (without tripping RCDs)
- Line/ Loop impedance tests
- Loop impedance with a Trip Lock RCD function
- True-RMS voltage measurements
- True-RMS frequency measurements
- Phase sequence tests
- Power and THD measurements (up to the 12th harmonic)
- General RCD testing
- Selective RCD testing (chose from types AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, and PRCD-S)
- Earth resistance tests using the 3-wire and 2-clamp method
- First fault leakage current measurements
- Insulation Monitoring Devices (IMDs) test
- AUTO SEQUENCE testing of TN, TT, and IT systems
- AUTO SEQUENCE testing of EVSE
- Automated impedance testing procedure: combines loop and line tests (Z AUTO)
- Automated RCD testing procedure
- Monitor three voltages in real time
- Functional inspections
- Conduct true-RMS current measurements up to RCD tests
- Integrated fuse tables for evaluating the results of loop/ line impedance tests automatically
- Built-in help screens for on-site referencing
- Large, colour, touchscreen display
- Capable of filtering results according to a specified area group
- Bluetooth communication capabilities
- Bluetooth facilitates a connection to PCs, Android tablets, Android smartphones, and QR/ barcode printers and scanners (NOT included)
- Integrated charger and rechargeable batteries
- Can be used with a Ro-adapter (NOT included) to conduct specific earth resistance tests
- True-RMS leakage and load current tests (OPTIONAL)
- Illumination measurements (OPTIONAL)
- High-resolution loop impedance tests (OPTIONAL)
- Cable location checks (OPTIONAL)
- Suitable for conducting installation safety tests in accordance with IEC/ EN 64557 specifications
- A versatile, simple-to-use, and efficient tester
- Ideal for a multitude of applications
What’s Accessories Come with the MI3152-L Eurotest XC MFT?
- MI 3152 EurotestXC Insturment
- Test lead, 3 x 1.5 m
- Power supply adapter
- 6 NiMH rechargeable batteries, type AA
- Test probe, 3 pcs (blue, brown, green)
- Crocodile clip, 3 pcs (blue, brown, green)
- RS232 - PS/2 cable
- USB cable
- Soft carrying bag
- Soft carrying neck belt
- Short instruction manual
- Instruction manual on CD
- Handbook on CD
- Calibration certificate
£1,255.00
£1,506.00 inc vat
Stock Due:
Typically 1-2 Weeks
Offers
Free Electrician's Accessory
- 50M R2 Extension Wander Test Lead (PVC Cable Reel) - TSTL50M, typically £49.00
- Automatic Wire Stripper / Crimper & 30m Fish Tape - MFTPROMO-HIGH, typically £44.98
- Lockout Starter Kit - Incl. Hasps, Padlocks, Tags, MCB Lockout & More - LT-LPP, typically £25.00
- Evik 10 Piece Cable Pulling Fibreglass Rods, Standard Kit in Tube - EV-STD-KIT-T, typically £39.00
Technical Information
Specification
Metrel MI3152-L Eurotest XC Multifunction Installation Tester Technical Specifications
| Function | Measuring Range | Resolution | Accuracy | |
|---|---|---|---|---|
| Continuity | Test Current 7mA 2-wire | 0.00 to 19.99Ω | 0.1Ω | ±5% of r + 3 digits) |
| 20 to 1999Ω | 1Ω | |||
| Test Current 200mA 2-wire | 0.00 to 19.99Ω | 0.01Ω | ±3% of r + 3 digits) | |
| 20.0 to 199.9Ω | 0.1Ω | ±5% of r | ||
| 200.0 to 1999Ω | 1Ω | ±5% of r | ||
| Insulation Resistance | Test Voltage: 50/100/250V | 0.00 to 19.99MΩ | 0.01MΩ | ±5% of r + 3 digits) |
| 20.0 to 99.9MΩ | ±10% of r | |||
| 100.0 to 199.9MΩ | 0.1MΩ | ±20% of r | ||
| Test Voltage: 500/1000V | 0.00 to 19.99MΩ | 0.01MΩ | ±5% of r + 3 digits | |
| 20.0 to 199.9MΩ | 0.1MΩ | ±5% of r | ||
| 200 to 999MΩ | 1MΩ | ±10% of r | ||
| RCD | RCD Uc | 0.00 to 19.99V | 0.1V | (-0%-15%) of r ±10 digits |
| 20.0 to 99.9V | (-0% / +15%) of r | |||
| RCD (t) | 0.00ms to 40.0ms | 0.1ms | ±1ms | |
| 0.0V max time | ±3ms | |||
| RCD I Ramp | 0.2x lΔN to 1.1x lΔN (AC) | 0.05x lΔN | ±0.1 x lΔN | |
| 0.2 x lΔN to 1.5x lΔN (A), LAN ≥30mA | ||||
| 0.2 x lΔN to 2.2x lΔN (A), lΔN <30mA | ||||
| 0.2x lΔN to 2.2x lΔN (B) | ||||
| Impedance | Z-Line L-L, L-N Ipsc | 0.00 to 9.99Ω | 0.01Ω | ±(5% of r + 5 digits) |
| 10.0 to 99.9Ω | 0.1Ω | |||
| 100 to 999Ω | 1Ω | ±(10% of r) | ||
| 1.00kΩ to 9.99kΩ | 10Ω | |||
| Zloop L-PE, lpfc | 0.00 to 9.99Ω | 0.01Ω | ±(5% of r + 5 digits) | |
| 10.0 to 99.9Ω | 0.1Ω | |||
| 100 to 999Ω | 1Ω | ±(10% of r) | ||
| 1.00kΩ to 9.99kΩ | 10Ω | |||
| Voltage | TRMS | 0 to 550V | 1V | ±(2% of r + 2 digits) |
| Frequency | 0.00 to 9.99Hz | 0.01Hz | ±(0.2% of r + 1 digit) | |
| 10.0 to 499.9Hz | 0.1Hz | |||
| Current | TRMS, AC with A 1018 Clamp | 0.0 to 99.9mA | 0.1 mA | ±(5 % of r. + 5 digits) |
| 100 to 999mA | 1 mA | ±(3 % of r. + 3 digits) | ||
| 1.00 to 19.99A | 0.01 A | ±(3 % of r.) | ||
| TRMS, AC with A 1019 Clamp | 0.00 to 99.9mA | 0.1 mA | indicative | |
| 100mA to 999mA | 1 mA | ±(5 % of r.) | ||
| 1.00 to 19.99A | 0.01 A | ±(3 % of r.) | ||
| TRMS, AC/DC with A 1391 | 0.00 to 1.99A | 0.01 A | ±(3 % of r. + 3 digits) | |
| 2.00 to 19.99A | 0.01 A | ±(3 % of r.) | ||
| 20.0A to 39.9A | 0.1 A | ±(3 % of r.) | ||
| TRMS, AC/DC with A 1391 | 0.00 to 19.99A | 0.01 A | indicative | |
| 20.0 to 39.9A | 0.1 A | indicative | ||
| 40.0 to 299.9A | 0.1 A | ±(3 % of r. + 5 digits) | ||
| Earth Resistance | 3 Wire | 0.00 to 19.99Ω | 0.01Ω | ±(5 % of r. + 5 digits) |
| 20 to 199.9Ω | 0.2Ω | |||
| 200.0 to 9999Ω | 1Ω | |||
| 2 Clamp | 0.00 to 19.99Ω | 0.01Ω | ±(10 % of r. + 10 digits) | |
| 20.0 to 30.0Ω | 0.1Ω | ±(20 % of r.) | ||
| 30.1 to 39.9Ω | 0.1Ω | ±(30 % of r.) | ||
| Specific Earth Resistance | 0.0Ωm to 99.9Ωm | 0.1Ωm | ±(5 % of r.) for Re 1 Ω to 1999kΩ | |
| 100 to 999Ωm | 1Ωm | |||
| 1.00kΩm to 9.99kΩm | 0.01kΩm | ±(10% of r) for Re 2kΩ to 19.99kΩ | ||
| 10.0kΩm to 99.9kΩm | 0.1kΩm | |||
| 100kΩm to 9999kΩm | 1kΩm | ±(20% of r) for Re > 20kΩ | ||
| First Fault Leakage Current | 0.00 to 19.9mA | 0.1mA | ±(5% of r + 3 digits) | |
| IMD Test | Threshold Indicative Insulation Resistance | 5 to 640kΩ | 5kΩ | Indicative values, up to 128 steps |
| Illuminance | Type B | 0.01 to 19.99lux | 0.01lux | ±(5 % of r. + 2 digits) |
| 20.0 to 199.9lux | 0.1lux | |||
| 200 to 1999lux | 1lux | ±(5 % of r.) | ||
| 2.00klux to 19.99klux | 10lux | |||
| Type C | 0.01 to 19.99lux | 0.01lux | ±(10 % of r. + 3 digits) | |
| 20.0 to 199.9lux | 0.1lux | |||
| 200 to 1999 lux | 1lux | ±(10 % of r.) | ||
| 2.00 to 19.99klux | 10lux | |||
| General Specs | ||||
| Power Supply | 9V DC (6 x 1.5V battery or accu, size AA) | |||
| Overvoltage Category | 1000V DC CAT II; 600V CAT III; 300V CAT IV | |||
| Protection Class | Double insulation | |||
| COM Port | BT, USB, RS232 | |||
| Weight | 1.3kg | |||
| Size (L x H x W) | 230 x 103 x 115mm | |||
