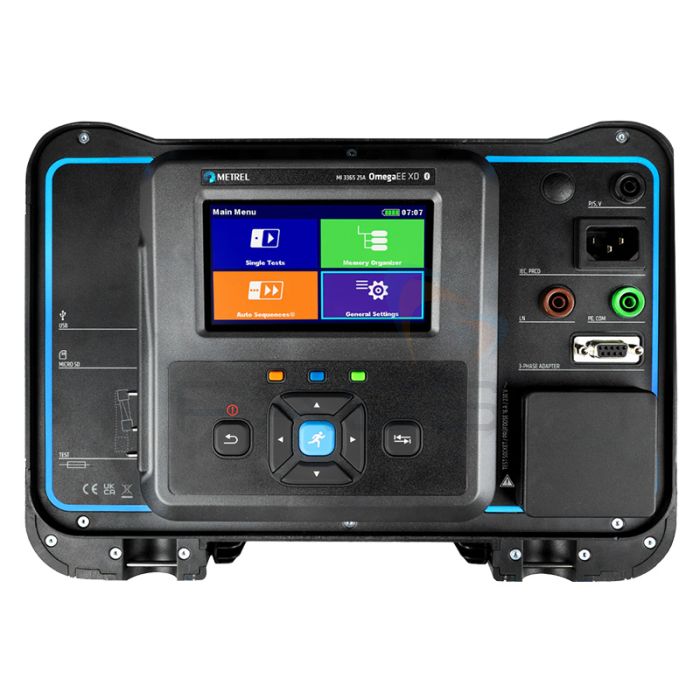

Metrel MI 3365 OmegaEE XD Series PAT Tester

Free Gift

Watch Our Videos

EVSE Diagnostic test
Functional inspections
Four sets available

SKU

MI3365-SERIES

View All PAT Testers

Description Offers Technical Info Reviews

The Metrel OmegaEE XD series delivers four instruments for professional use in the most challenging scenarios. Each model supports user accounts, allowing multiple electricians to use a single device.

The various model versions cater to a variety of testing fields, including portable appliances, welding equipment, medical devices, and professional testing of PRCD devices. Additionally, they support testing of EV charging cables in both mode 2 and mode 3. These models feature an advanced built-in user interface that allows for the execution of pre-defined and user-created AUTOSEQUENCEs.

The generous 8 GB microSD card provides ample memory capacity, allowing users to save and archive data over the long term. The memory structure facilitates easy searching through device archives and swift re-execution of periodic tests. Additionally, all four models are compatible with the Metrel ES Manager PC software.

Key Features

Pre-defined AUTOSEQUENCE®s, according to EN 50678, EN 50699, EV-Cables, P-RCDs, Floating inputs, EN 62368-1, EN 60974-4, EN 62353.
Read the code and test: QR and barcode labelling system combined with AUTOSEQUENCE®s enables the user quick and simple testing of electrical devices.
Testing groups: the instruments have built-in filters in accordance with their application area, which enables the user to simply choose needed test sequences.
Support for IC-CPD testing: support for testing Mode 2 and Mode 3 EV cables in combination with supported adapters.
Support for PRCD testing: support for all types of PRCDs, including 2-pole, 3-pole, K/Di (varistor), S (3 pole) and testing with the PE probe.
Fuse testing: the instrument has a special, integrated testing module for quick testing of all fuses.
High-voltage testing (only MI 3365 F): the instrument enables insulation resistance measurement that has to be performed after repairs or maintenance of electrical devices.
Testing of medical devices (only MI 3365 M): the instrument enables testing of medical devices in accordance with IEC/EN 62353 extended to tests in acc. with IEC 60601.
Simulation of Single fault conditions enables testing of Audio/video, information and communication technology equipment IEC/EN 62368.
Testing of welding equipment (only in combination with A 1422): all models of OmegaEE XD support testing of welding equipment in accordance with IEC/EN 60974-4.
Hard-wired devices: the instruments have integrated additional test terminals that enable the user simple testing of hard-wired devices.
Large memory: support for microSD memory cards, 8 GB card already integrated in the instrument, although that can be expanded to 32 GB.
PC SW Metrel ES Manager: enables the creation of test structures, user-defined AUTOSEQUENCE®s, professional test reports and data transfer for archiving.
Touch screen: high-resolution colour touch screen, 4.3” TFT.
Double manipulation: The keyboard and touch screen enable the user to control the instrument in any manner they like.
aMESM Android SW: enables QR code scanning, and uploading of pre-prepared user-defined AUTOSEQUENCE®s.
Dimensions (w x h x l): 310 x 130 x 250 mm
Weight (with batteries, without accessories): 6.1 kg

Measuring Functions

EN 50678 / EN 50699
Visual inspections
Continuity // Protective earth resistance 200mA
Continuity // Protective earth resistance 10A, 25A¹
Insulation Resistance (Riso, Riso-S)
Protective conductor current (Direct, Residual, Alternative)
Touch leakage current (Direct, Alternative)
Leakage current produced by a floating input, PE current (Direct, Residual)
Leakage current produced by a floating input, Touch current (Direct)
Leaks & Power (Itou, Idiff, P, S, Q, PF, THDu, THDi, CosØ, I, U)
Power (P, S, Q, PF, THDu, THDi, CosØ, I, U)
PRCD test, (2 pole, 3 pole, K/ Di (varistor), S (3-pole))
PRCD test (PE conductor, Open conductor, PE probe)
RCD test (type A, AC, B, B+, F)
IC-CPD test (EV-RCD, PE conductor)
Voltage, SELV/PELV;
Flash test, (1500V, 3000V)²
Polarity / Active polarity test
EVSE Diagnostic test
Fuse test
Clamp current³
Functional inspections
¹(25A, M, F, models only), ²(MI 3365 F model only), ³(With optional A 1283)

IEC/EN 62353 extended to tests in acc. with IEC 60601, (MI 3365 M only)
Insulation resistance;
Touch leakage current;
Patient leakage current;
Equipment leakage (Direct, Differential, Alternative);
Applied part leakage (Direct, Alternative).

IEC/EN 60974-4 (optional A 1422)
Insulation resistance;
Welding circuit leakage;
Protective conductor leakage;
No-load voltage.

What's Included?

MI 3365 Standard Set
Instrument MI 3365 OmegaEE XD
A 1493 Power cable L=2m 1.5mm2 EU, 2pcs
A 1340 Test lead L=1,5m 2,5mm2 Black
A 1014 Test probe Black CAT III 1000V
A 1013 Crocodile clip Black CAT III 1000V
A 1271 Carrying bag Size: S
A 1727 USB cable L=1m
Instruction manual (short version)
Calibration Certificate
SW 1201 PC SW Metrel ES Manager BASIC

MI 3365 25A Standard Set
Instrument MI 3365 25A OmegaEE XD
A 1493 Power cable L=2m 1.5mm2 EU, 2pcs
A 1340 Test lead L=1,5m 2,5mm2 Black
A 1014 Test probe Black CAT III 1000V
A 1013 Crocodile clip Black CAT III 1000V
A 1271 Carrying bag Size: S
A 1727 USB cable L=1m
Instruction manual (short version)
Calibration Certificate
SW 1201 PC SW Metrel ES Manager BASIC

MI 3365 F Standard Set
Instrument MI 3365 F OmegaEE XD
A 1493 Power cable L=2m 1.5mm2 EU, 2pcs
A 1340 Test lead L=1,5m 2,5mm2 Black
A 1014 Test probe Black CAT III 1000V
A 1013 Crocodile clip Black CAT III 1000V
A 1271 Carrying bag Size: S
A 1727 USB cable L=1m
A 1047 Test lead L=2m 0,75mm2 Red
A 1064 Crocodile clip Red CAT III 1000V
Instruction manual (short version)
Calibration Certificate
SW 1201 PC SW Metrel ES Manager BASIC

MI 3365 M Standard Set
Instrument MI 3365 M OmegaEE XD
A 1493 Power cable L=2m 1.5mm2 EU, 2pcs
A 1340 Test lead L=1,5m 2,5mm2 Black
A 1014 Test probe Black CAT III 1000V
A 1013 Crocodile clip Black CAT III 1000V
A 1271 Carrying bag Size: S
A 1727 USB cable L=1m
Instruction manual (short version)
Calibration Certificate
SW 1201 PC SW Metrel ES Manager BASIC

Product Range

Metrel MI3365 OmegaEE XD Standard Set
Metrel MI3365-25A OmegaEE XD 25A Standard Set
Metrel MI3365F OmegaEE XD F Standard Set
Metrel MI3365M OmegaEE XD M Standard Set

Metrel OmegaEE XD Videos

Introduction

MI 3365 | OmegaEE XD | Promotional

First Setup and Unboxing

First Setup and Unboxing | MI 3365 | How To Video

Printer Testing

Printer | Testing in accordance with the EN 62368-1 | MI 3365 | Instructional

E-Mobility Testing

E-Mobility | Testing of a Mode 3 Charging Cables | MI 3365 | Instructional

Testing Devices with Floating Inputs

Educational Institutions & Labs | Testing Devices with Floating Inputs | MI 3365 | Instructional

£2,294.00

£2,752.80 inc vat

Free Delivery*

Select A Free Gift

PAT Testing Reference Card 5th Edition FREE £5.00

Available Models Select An Option

OmegaEE XD MI3365 £2,294.00 MI3365-25A - Standard Set, OmegaEE XD 25A MI3365-25A £2,594.00 OmegaEE XD F MI3365F £2,894.00 MI3365M - Standard Set, OmegaEE XD M MI3365M £3,194.00

2294 Reward Points 60 Days Return

Offers

FREE PAT Reference Card

PAT Testing Reference Card 5th Edition - PAT-TEST-CARD, typically £5.00

Technical Information

Specification

Extra Features
		MI 3365	MI 3365 25A	MI 3365 F	MI 3365 M
Workspaces	Industrial Mode	✔	✔	✔	✔
	Medical Mode	✘	◯	✘	✔
	Welding Mode	◯	◯	◯	◯
	Portable Appliance Mode	✔	✔	✔	✔
	Service & Repair Mode	✘	✘	✔	✘
	Project Structure	✔	✔	✔	✔
	Visual Inspection Mode	✔	✔	✔	✔
	Functional Inspection Mode	✔	✔	✔	✔
AUTOSEQUENCES	AUTOSEQUENCE Profile	✔	✔	✔	✔
	AUTOSEQUENCE Programmable	✔	✔	✔	✔
	Custom Visual/Functional Inspection	✔	✔	✔	✔
	AUTOSEQUENCE 3-Phase	✔	✔	✔	✔
	AUTOSEQUENCE Barcode Testing	✔	✔	✔	✔
	AUTOSEQUENCE Medical	✘	◯	✘	✔
	AUTOSEQUENCE PRCD	✔	✔	✔	✔
	AUTOSEQUENCE PAT	✔	✔	✔	✔
	AUTOSEQUENCE Welding	◯	◯	◯	◯
	PASS/FAIL System Evaluation	✔	✔	✔	✔
	On-site Parameter Settings	✔	✔	✔	✔
Automatic Test Sequences	Multitest Sequence	✔	✔	✔	✔
Advanced User Interface	Colour Display	✔	✔	✔	✔
	Touchscreen	✔	✔	✔	✔
	Adaptable User Interface	✔	✔	✔	✔
	Graphical Help Menus	✔	✔	✔	✔
	Database System Built In	✔	✔	✔	✔
	Programmable Memory Structure	✔	✔	✔	✔
	Multi-level Memory Organiser	✔	✔	✔	✔
Main Features
Voltage DC	SELV/PELV DC	✔	✔	✔	✔
Voltage AC	Voltage TRMS	✔	✔	✔	✔
Voltage AC	SELV/PELV AC	✔	✔	✔	✔
Current AC	Current TRMS	◯	◯	◯	◯
Three Phase	Differential Leakage Current	◯	◯	◯	◯
	Power / Functional Test	◯	◯	◯	◯
	Active Power Readout	◯	◯	◯	◯
	Reactive Power Readout	◯	◯	◯	◯
	Power Factor Readout	◯	◯	◯	◯
	3-Phase RCD / Test current	◯	◯	◯	◯
	Portable RCD Trip-out (B type PRCD)	◯	◯	◯	◯
	Welding Circuit Leakage Current	◯	◯	◯	◯
	Primary Leakage Current Readout	◯	◯	◯	◯
	No Load Voltage Readout	◯	◯	◯	◯
Earth Bond / Continuity	Max Test Current 200 mA 2-wire	✔	✔	✔	✔
	Max Test Current 10 A 2-wire	✘	✔	✔	✔
	Max Test Current 25 A 2-wire	✘	✔	✔	✔
Insulation Resistance	Test Voltage 250 V	✔	✔	✔	✔
	Test Voltage 500 V	✔	✔	✔	✔
	Max resistance range 200 MOhm	✔	✔	✔	✔
	Automatic Discharge	✔	✔	✔	✔
Leakage Current	Differential Leakage	✔	✔	✔	✔
	Touch Leakage Current	✔	✔	✔	✔
	Substitute Leakage Current	✔	✔	✔	✔
	PE Leakage Current	✔	✔	✔	✔
	Equipment Leakage Current (Alt., Dir., Diff.)	✘	◯	✘	✔
	Applied Part Leakage Current (Alt., Dir., Diff.)	✘	◯	✘	✔
	Touch Leakage Current (Medical)	✘	◯	✘	✔
	Leakage Current (with optional Clamp)	✔	✔	✔	✔
	AC Insulation Leakage	✔	✔	✔	✔
RCD	RCD Type AC	✔	✔	✔	✔
	RCD Type A	✔	✔	✔	✔
	RCD Type F	✔	✔	✔	✔
	RCD Type B	✔	✔	✔	✔
	RCD Type B+	✔	✔	✔	✔
	RCD Uc	✔	✔	✔	✔
	RCD (t)	✔	✔	✔	✔
	10 mA	✔	✔	✔	✔
	30 mA	✔	✔	✔	✔
	100 mA	✔	✔	✔	✔
	300 mA	◯	◯	◯	◯
	500 mA	◯	◯	◯	◯
	RCD Auto	✔	✔	✔	✔
	RCD 3-Phase	◯	◯	◯	◯
	EV-RCD	✔	✔	✔	✔
PRCD	PRCD-S , PRCD-K	✔	✔	✔	✔
	PRCD-Open Conductor Test	✔	✔	✔	✔
	PRCD-PE Conductor Test	✔	✔	✔	✔
	PRCD-PE Probe Test	✔	✔	✔	✔
	PRCD 2pole, 3pole, K/Di(Varistor), S(3Pole)	✔	✔	✔	✔
	PRCD Type AC	✔	✔	✔	✔
	PRCD Type A	✔	✔	✔	✔
	PRCD Type B	✔	✔	✔	✔
	PRCD Type B+	✔	✔	✔	✔
	PRCD Type F	✔	✔	✔	✔
Polarity	IEC Lead Test / Polarity	✔	✔	✔	✔
	1-Phase Active polarity (with P-RCD)	✔	✔	✔	✔
	3-Phase Active polarity (with P-RCD)	◯	◯	◯	◯
Functional Test and Troubleshooting	Apparent Power - (S)	✔	✔	✔	✔
	Power P, Q, PF/Cosφ	✔	✔	✔	✔
	Leakages (Touc.,Diff.) &Power (P,S,Q,PF,…)	✔	✔	✔	✔
	AC Current	✔	✔	✔	✔
	Load Test	✔	✔	✔	✔
Power Measurements	Active Power	✔	✔	✔	✔
	Reactive Power	✔	✔	✔	✔
	Apparent Power	✔	✔	✔	✔
	Power Factor	✔	✔	✔	✔
Harmonics Analysis	THD Current	✔	✔	✔	✔
Harmonics Analysis	THD Voltage	✔	✔	✔	✔
EVSE Measurements	Connection for Mode 3 Cable	◯	◯	◯	◯
Applied Parts Connectors	Connection for Mode 3 Cable	✘	✘	✘	✔
Single-fault Condition	Automatic single-fault condition measurements	✘	✔	✔	✔
Additional Features
Security	User Accounts	✔	✔	✔	✔
PASS / FAIL Indicators	PASS/FAIL Indicators	✔	✔	✔	✔
Fuse Test	Fuse Test	✔	✔	✔	✔
Display	LCD	✔	✔	✔	✔
Display	Back Light	✔	✔	✔	✔
Keyboard	QWERTY Keyboard	✔	✔	✔	✔
Keyboard	Virtual Keyboard	✔	✔	✔	✔
Power Supply	Power Supply 115 V (50-60Hz)	✔	✔	✔	✔
	Power Supply 230 V (50-60Hz)	✔	✔	✔	✔
	Mains Supply / PE Check	✔	✔	✔	✔
Test Lead Compensation	Test Lead Compensation	✔	✔	✔	✔
Test Lead Compensation	IEC Test Lead Compensation	✔	✔	✔	✔
Buzzer	Buzzer	✔	✔	✔	✔
Appliance Tests	230 V Appliance Testing	✔	✔	✔	✔
Appliance Tests	115 V Appliance Testing	✔	✔	✔	✔
Graphical User Interface	Graphical Online Help	✔	✔	✔	✔
Remote Communication	Remotely controled	✔	✔	✔	✔
Remote Communication	Black-Box Communication Protocol	✔	✔	✔	✔
Communication Port	Communication Port USB	✔	✔	✔	✔
Communication Port	Communication Port RS232 - PS/2	✔	✔	✔	✔
Built-in Bluetooth	Built-in Bluetooth	✔	✔	✔	✔
Mobile Application	Android Application	✔	✔	✔	✔
Printing / Scanning	Barcode Printing / Scanning	◯	◯	◯	◯
	QR-Code Printing / Scanning	◯	◯	◯	◯
	Simple-Code Printing	◯	◯	◯	◯
Memory	Internal Memory	✔	✔	✔	✔
	MicroSD Memory Card	✔	✔	✔	✔
	Downloadable	✔	✔	✔	✔
	Uploadable	✔	✔	✔	✔
IP Protection	IP 40	✔	✔	✔	✔
Protection Category	CAT II 300 V	✔	✔	✔	✔
Electrical Equipment
Portable and Fixed Appliances	PAT measurements and management	✔	✔	✔	✔
Medical Facilities
Surgery Rooms or Operating Theatres	Medical Devices	✘	◯	◯	✔
Other Applications
Preventative Maintenance	Safety of Portable Appliances	✔	✔	✔	✔
Troubleshooting	Appliances Troubleshooting	✔	✔	✔	✔
Standards Applied
Building LV Installation	IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series	✔	✔	✔	✔
	IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts	✔	✔	✔	✔
	AS / NZ 3017 Electrical installations - Verification guidelines	✔	✔	✔	✔
Portable Appliances Safety	PAT Competences: Portable Appliances Safety Testing	✔	✔	✔	✔
	AWE Competences: Arc Welding Equipment Safety Testing	✔	✔	✔	✔
	EN 50699 Recurrent Test of Electrical Equipment	✔	✔	✔	✔
	EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair	✔	✔	✔	✔
	AS / NZ 3760 In-service safety inspection and testing of electrical equipment	✔	✔	✔	✔
	VDE 0701 Inspection after repair, modification of electrical appliances - periodic	✔	✔	✔	✔
	VDE 0702 Inspection on electrical appliances - general requirements for electrical safety	✔	✔	✔	✔
	NEN 3140 Guidelines for safe working practices	✔	✔	✔	✔
	IEC/EN 60974 Arc welding equipment series	◯	◯	◯	◯
	IEC/EN 60974-4 Arc welding equipment - Part 4: Periodic inspection and testing	◯	◯	◯	◯
	IEC 62368-1:2023 Audio/video, information and communication technology equipment - Part 1: Safety requirements	✔	✔	✔	✔
	IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment	✔	✔	✔	✔
Mobile Units Electrical Safety	eMOB Competences: Electrical LV Installations in Mobile Units Safety	✘	✔	✘	✘
Mobile Units Electrical Safety	IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations - Supplies for Electrical Vehicles	✘	✔	✘	✘
Electrical Vehicle Supply Equipment	EC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)	◯	◯	◯	◯
Electrical Vehicle Supply Equipment	IEC/EN 62955 Residual direct current detecting device (RDC-DD) to be used for mode 3 charging of electric vehicles	✘	✔	✘	✔
Medical Electrical Equipment	MEDe Competences: Medical Electrical Equipment Safety	✘	✔	✘	✔
Medical Electrical Equipment	IEC/EN 62353 Medical electrical equipment - Recurrent test and test after repair of medical electrical equipment	✘	✔	✘	✔
Instrument Safety Towards User	IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series	✔	✔	✔	✔
Key:	✔ Supported ✘ Not Supported ◯ Optional
