Metrel MA 2067 Full Low-Voltage Installation Demonstration Board

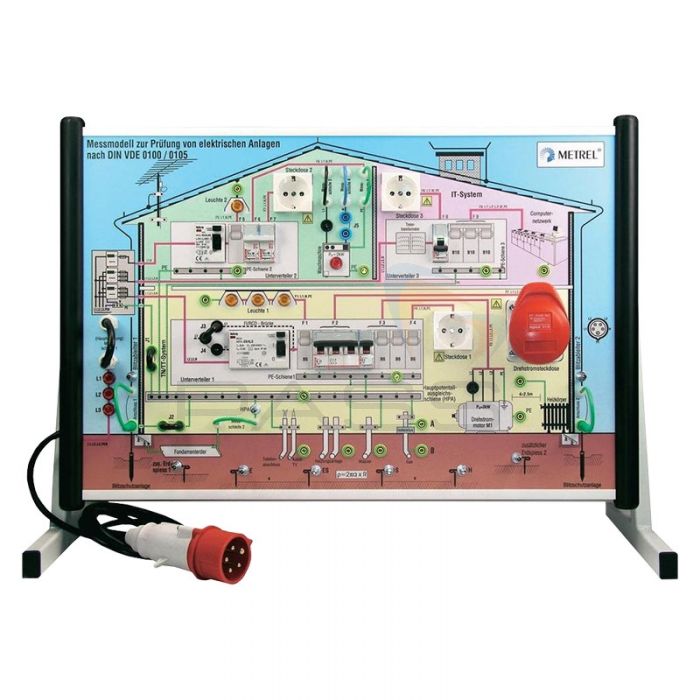

The Metrel MA 2067 Full Low-Voltage Installation Demonstration Board is an educational tool that can be used to train electro-technical students, as well as demonstrate the benefits and uses of electrical test equipment. As such this product is of particular use to educational and training institutions as well as sales departments.

 This board is designed to simulate the conditions of low-voltage electrical installations, it includes:

• Various RCDs
• Fuses
• PE equalisation bars
• 1-phase sockets
• 3-phase sockets
• A selection of consumers of electrical energy
• An array of grounding systems, including TT, TN and IT earth systems

It can be used to simulate an eclectic variety of potential electrical faults: it is possible to select from nineteen errors on the lockable distributor. These faults can be identified and diagnosed using an array of electrical test equipment. To this end, the Metrel MA 2067 Full Low-Voltage Installation Demonstration Board is compatible with all of Metrel’s Installation Safety Testers.

It is possible to use the Metrel MA 2067 Full Low-Voltage Installation Demonstration Board to practice and/or demonstrate up to sixty-five different measurements in accordance with the standard EN 61557, including:

• Insulation resistance
• Continuity of PE conductors
• Earth resistance
• Specific earth resistance
• Line and loop impedance
• Phase rotation
• Leakage current
• Voltage
• Frequency

Further to this, the inclusion of various RCDs facilitates comprehensive RCD testing, allowing the student, teacher or salesperson to measure trip-out time, trip-out current and contact voltage for numerous types of RCDs.

To help with diagnosing and testing electrical installations, the Metrel MA 2067 Full Low-Voltage Installation Demonstration Board is supplied with a theory and exercise booklet optimised for students and educators.

Finally, it is possible to connect the Metrel MA 2067 Full Low-Voltage Installation Demonstration Board to a three-phase or single-phase supply system. This tool requires a power supply of 230V/ 400V, 50 Hz.

The Metrel MA 2067 Full Low-Voltage Installation Demonstration Board is a useful, comprehensive and adaptable educational demonstration tool. It is ideal for sales personnel, as well as students and trainers of electro-technical specialities and/or electrical contractors learning to conduct measurements on low voltage installations.

Metrel MA 2067 Full Low-Voltage Installation Demonstration Board Key Features

• An educational tool that can be used to train electro-technical students
• Can be used to demonstrate the purposes and benefits of electrical test equipment
• Of particular use to educational and training institutions, as well as sales departments
• Designed to simulate the conditions of low-voltage electrical installations
• Includes various RCDs, fuses, PE equalisation bars, 1-phase sockets, 3-phase sockets, a selection of consumers of electrical energy, and TT, TN and IT earth systems
• Can be used to simulate a variety of electrical faults
• Select from 19 errors on the lockable distributor
• Troubleshoot and diagnose faults using electrical test equipment
• Compatible with all of Metrel’s Installation Safety Testers
• Can be used to practice and/or demonstrate up to 65 different measurements in accordance with EN 61557
• Measure insulation resistance
• Test the continuity of PE conductors
• Check earth resistance
• Determine specific earth resistance
• Measure line and loop impedance
• Determine phase rotation
• Check leakage current
• Measure voltage
• Measure frequency
• Perform comprehensive RCD tests
• Measure trip-out time, trip-out current and contact voltage for various types of RCDs
• Supplied with a theory and exercise booklet optimised for students and educators
• Can be connected to a three-phase or single-phase supply system
• Requires a power supply of 230V/ 400V, 50Hz
• A useful, comprehensive and adaptable educational demonstration tool
• Ideal for sales personnel
• Ideal for students and trainers of electro-technical specialities
• Suitable for electrical contractors learning to conduct measurements on low voltage installations

What’s Included?

• Metrel MA 2067 Full Low-Voltage Installation Demonstration Board
• Jumper, 4 pcs
• Board Support for Vertical Use
• Three Phase to One Phase Adapter
• 1-Phase Mains Cable
• Instruction manual
• Theory and Exercise Booklet
• Calibration Certificate
