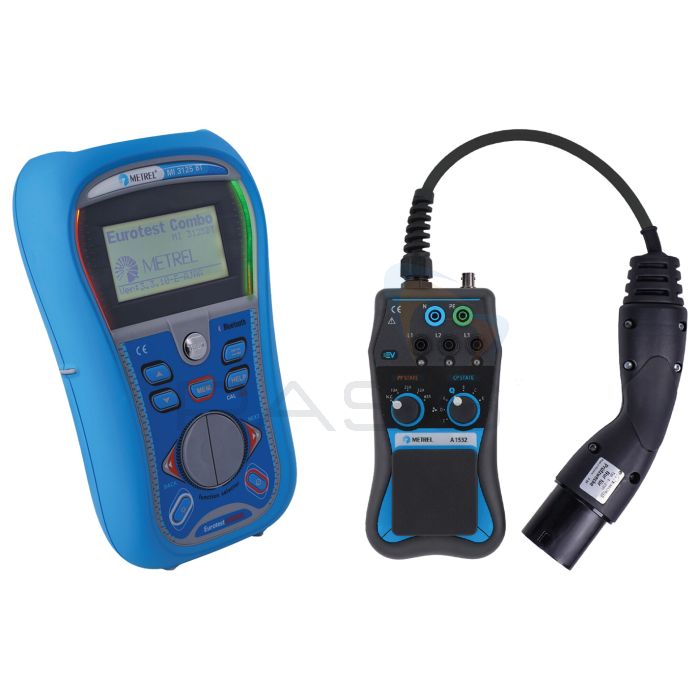

Metrel MI3125BT Multifunction Tester & A1532 EVSE Adapter Kit 1
Free Gift
- Verify safety and functionality
- Simulate EV status & cable presence
- Test 6mA EV RCDs and evaluate results
SKU
EVKIT1
MPN
EVKIT1
The Metrel MI3125BT Multifunction Tester & A1532 EVSE Adapter Kit 1 is specifically designed for testing Electric Vehicle Supply Equipment (EVSE) such as charging stations. To this end, it includes the following Metrel products:
- Metrel MI3125BT Eurotest Combo Bluetooth Multifunction Tester (and standard accessories)
- Metrel A1532 EVSE Adapter for Electric Vehicle Charger Testing (and standard accessories)
For a complete list of the items included in the Metrel MI3125BT Multifunction Tester & A1532 EVSE Adapter Kit 1, please see the ‘What’s Included?’ section.
Metrel MI3125BT Eurotest Combo Bluetooth Multifunction Tester
The Metrel MI3125BT Multifunction Tester is perfect for engineers who frequently conduct high-volume testing or work on TT and TN systems. It includes all essential tests for installation safety and introduces the new capability to test B-type (DC-sensitive) RCDs.
The Metrel MI3125BT Eurotest Combo Bluetooth Multifunction Tester features integrated characteristics of fuses and RCDs (including EV types) for evaluating line/loop impedance results. Its bright, backlit graphic display ensures that results, indications, measurement parameters, and messages are clear and easy to read. Additionally, the red and green LEDs on either side of the display provide a clear PASS/FAIL evaluation of test results.
Each test comes with a help screen that explains how to connect the instrument to the installation and perform the measurement. All results can be quickly saved and referenced on the instrument and then downloaded via the MESM software.
Key Features
- LED Pass/Fail indicators: two LED indicators for PASS / FAIL evaluation of test results are placed on both sides of the LCD
- Help screens: The instrument comes complete with built-in help screens for referencing on-site.
- Earth resistance measurement: The instrument performs 3-wire earth resistance testing with two additional rods.
- Built-in fuse tables: this unique feature allows automatic evaluation of the line/loop impedance compared to the regulations.
- Online voltage monitoring: monitors all 3 voltages in real-time.
- Upgradeable: if changes occur to the regulations, upgrades can be made to the firmware to keep the instrument up to date.
- Polarity swap: automatic polarity reversal on continuity test.
- Insulation range: wide range of insulation test voltages from 50 V to 1000 V, reading up to 1000 MΩ.
- Trip Lock function: The Zs (RCD) function performs a loop impedance test without tripping the RCD.
- Multi-system testing: tests on single and multiphase TT and TN systems.
- Built-in charger & rechargeable batteries: The unit has a built-in charging circuit and comes complete with a set of rechargeable NiMH batteries.
- RCD auto: The automated RCD testing procedure significantly reduces test time.
- B-type RCD testing is supported.
- BT connectivity: it enables BT communication with Android tablets and smartphones via built-in BT.
- PC SW Eurolink PRO included in the standard set enables the downloading of test results and parameters and the creation of test reports.
- Dimensions: 140 x 80 x 230 mm
- Mass: 1.0 kg
Metrel A 1532 EVSE Adaptor
The Metrel A 1532 EVSE Adapter is a specialised accessory designed for testing Mode 3 electric vehicle supply equipment with a type 2 connector.
Key Features
- Banana socket outputs for connection to a 3-phase installation tester.
- Voltage indicators on EVSE output.
- Proximity Pilot resistance selector for simulation of EV cable presence and current rating detection.
- Control Pilot resistance selector for simulation of electric vehicle status.
- Socket output for connection to a 1-phase installation tester (Phase 1, Neutral, PE).
- Type 2 Male Plug connector for connection to EVSE.
- 6 mA EV RCD support.
- MESM report creation.
- Dimensions (w x h x l): 200 x 100 x 70 mm
- Mass (without accessories): 0.82 kg
What's Included?
- Metrel MI3125BT Eurotest Combo Bluetooth Multifunction Tester
- Metrel A1532 EVSE Adapter
- Soft hand strap
- Small soft carrying bag
- Test lead, 3 x 1.5 m
- Mains Plug Lead
- Tip Commander, 1.5m
- Test probe, 3 pcs (blue, brown, green)
- Crocodile clip, 3 pcs (blue, brown, green)
- Power supply adapter + 6 rechargeable batteries NiMH, type AA
- USB cable
- Metrel ES Manager BASIC license
- Metrel aMESM PRO Android app
- Short instruction manual
- Calibration certificate
- Small, Soft Carrying Bag for A1532
- Instruction Manual for A1532
Videos
A1532 EVSE Adapter Part 1 - Overview
Electric Vehicle Supply Equipment | A 1532 EVSE adapter | Testing 1
A1532 EVSE Adapter Part 2 - Testing Procedure
Electric Vehicle Supply Equipment | A 1532 EVSE adapter | Testing 2
£964.00
£1,156.80 inc vat
Stock Due:
Typically 1-6 Days
Offers
Free Electrician's Accessory
- 50M R2 Extension Wander Test Lead (PVC Cable Reel) - TSTL50M, typically £49.00
- Lockout Starter Kit - Incl. Hasps, Padlocks, Tags, MCB Lockout & More - LT-LPP, typically £25.00
- TestSafe Fibreglass Fish Tape Cable Puller – 30m - TS-FG-FT-30M, typically £24.99
- Evik 10 Piece Cable Pulling Fibreglass Rods, Standard Kit in Tube - EV-STD-KIT-T, typically £39.00
Technical Information
Specification
Metrel MI 3125BT Eurotest Combo Bluetooth Multifunction Tester
| Extra Features | AUTOSEQUENCES | PASS/FAIL System Evaluation | ✔ |
|---|---|---|---|
| Advanced User Interface | Graphical Help Menus | ✔ | |
| SDK support | Upload structure | ✔ | |
| Download | ✔ | ||
| Main Features | Voltage AC | Frequency | ✔ |
| Voltage TRMS | ✔ | ||
| Three Phase | 3-Phase system (Phase SEQUENCE) | ✔ | |
| Earth Bond / Continuity | Ring Test 200 mA (UK installations) | ✔ | |
| Ring Auto 200 mA (UK installations) | ✔ | ||
| Max Test Current 7 mA 2-wire | ✔ | ||
| Max Test Current 200 mA 2-wire | ✔ | ||
| Automatic polarity reversal | ✔ | ||
| Insulation Resistance | Test Voltage 50 V | ✔ | |
| Test Voltage 100 V | ✔ | ||
| Test Voltage 250 V | ✔ | ||
| Test Voltage 500 V | ✔ | ||
| Test Voltage 1000 V | ✔ | ||
| Automatic Discharge | ✔ | ||
| Z Line / Loop Impedance | Zline L-L, L-N Ipsc - 3 Wire | ✔ | |
| Zline L-L, L-N Ipsc - 2 Wire | ✔ | ||
| Zloop L-PE, Ipfc - 3 Wire | ✔ | ||
| Zloop L-PE, Ipfc - 2 Wire | ✔ | ||
| Zs (rcd) - 3 Wire | ✔ | ||
| Zref, ΔU% | ✔ | ||
| Fuse Tables | ✔ | ||
| RCD | RCD type AC | ✔ | |
| RCD type A | ✔ | ||
| RCD type F | ✔ | ||
| RCD type B | ✔ | ||
| RCD Uc | ✔ | ||
| RCD (t) | ✔ | ||
| 10 mA | ✔ | ||
| 30 mA | ✔ | ||
| 100 mA | ✔ | ||
| 300 mA | ✔ | ||
| 500 mA | ✔ | ||
| 1000 mA | ✔ | ||
| RCD I Ramp | ✔ | ||
| RCD Auto | ✔ | ||
| RCD 3-Phase | ✔ | ||
| EV-RCD | ✔ | ||
| MI-RCD | ✔ | ||
| RCD-S (Selective) | ✔ | ||
| Earth/Ground Resistance | Earth Resistance 3-wire | ✔ | |
| EVSE measurements | Monitoring of voltage | ◉ | |
| Monitoring of current | ◉ | ||
| Simulation of external load | ◉ | ||
| Additional Features | Hand-Held | Hand-Held | ✔ |
| PASS / FAIL Indicators | PASS/FAIL Indicators | ✔ | |
| Voltage Monitoring | Voltage Monitoring | ✔ | |
| Display | LCD | ✔ | |
| Back Light | ✔ | ||
| Power Supply | Rechargeable Batteries in standard delivery | ✔ | |
| Battery Powered | ✔ | ||
| Power Supply 115 V (50-60Hz) | ✔ | ||
| Power Supply 230 V (50-60Hz) | ✔ | ||
| Mains Supply / PE Check | ✔ | ||
| Test Lead Compensation | Test Lead Compensation | ✔ | |
| Graphical user interface | Graphical Online Help | ✔ | |
| Communication Port | Communication Port USB | ✔ | |
| Communication Port RS232 - PS/2 | ✔ | ||
| Built-in Bluetooth | Built-in Bluetooth | ✔ | |
| Mobile Application | Android Application | ✔ | |
| Printing / Scanning | QR-Code Printing / Scanning | ◉ | |
| Memory | Internal memory | ✔ | |
| Downloadable | ✔ | ||
| Uploadable | ✔ | ||
| IP protection | IP 40 | ✔ | |
| Protection category | CAT IV 300 V | ✔ | |
| CAT III 600 V | ✔ | ||
| Special Accessories | Passive 3-Phase Adapter | Passive 3-Phase Adapter | ◉ |
| Active Euro Checkbox | Active Euro Checkbox | ◉ | |
| Active Ring Adapter EASYswitch | Active Ring Adapter EASYswitch (UK only) | ◉ | |
| Tip Commander | Tip Commander | ◉ | |
| Plug Commander | Plug Commander | ◉ | |
| PC Software Package | PC Software Package | ✔ | |
| MESM Compatible | ✔ | ||
| Report creation | ◉ | ||
| Professional reporting | ◉ | ||
| Battery Charger | Battery Charger | ✔ | |
| Medical Facilities | Patient recovery rooms and hospital wards | Public and workspace electrical safety in healthcare | ✔ |
| Secondary power sources in healthcare | Field hospital | ✔ | |
| Other applications | Preventative maintenance | Earth continuity and insulation testing | ✔ |
| Line and loop impedance and RCD testing | ✔ | ||
| Basic earth resistance | ✔ | ||
| Voltage measurements | ✔ | ||
| Current measurements | ✔ | ||
| Frequency measurements | ✔ | ||
| Troubleshooting | Installation Troubleshooting | ✔ | |
| Standards Applied | Building LV Installation | EISinsp Competences: Low Voltage Electrical Installation Safety Inspection | ✔ |
| EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers | ✔ | ||
| IEC/EN 60364 Electrical Installations for Buildings series | ✔ | ||
| IEC/EN 60364-6 Electrical Installations for Buildings - Verification | ✔ | ||
| IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock | ✔ | ||
| IEC/EN 60755 General safety requirements for residual current operated protective devices | ✔ | ||
| IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs) | ✔ | ||
| IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series | ✔ | ||
| IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements | ✔ | ||
| IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance | ✔ | ||
| IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance | ✔ | ||
| IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems | ✔ | ||
| IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence | ✔ | ||
| IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures | ✔ | ||
| VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series | ✔ | ||
| AS / NZ 3017 Electrical installations – Verification guidelines | ✔ | ||
| AS / NZ 3018 Electrical installations - Domestic installations | ✔ | ||
| BS 7671 IEE Wiring Regulations (18th edition) | ✔ | ||
| CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC | ✔ | ||
| Earthing and lightning protection | LPSinsp Competences: Lightning Protection of Buildings Inspection | ✔ | |
| LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers | ✔ | ||
| IEC 62305 Protection against Lightning - series | ✔ | ||
| IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth | ✔ | ||
| IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding | ✔ | ||
| Instrument safety towards the user | Directive EMC 89/336/EE on electromagnetic compatibility | ✔ | |
| IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series | ✔ | ||
| IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage | ✔ | ||
| EMC safety | IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series | ✔ | |
| Key | ✔ Supported | ◉ Optional | ||
A 1532 EVSE Adaptor
| Extra Features | Workspaces | EVSE Mode | ✔ |
|---|---|---|---|
| AUTOSEQUENCES | AUTOSEQUENCE EVSE | ✔ | |
| Main Features | EVSE measurements | Proximity pilot 0-64 A | ✔ |
| Control Pilot states settings | ✔ | ||
| Line impedance for charging station | ✔ | ||
| Fault loop impedance for charging station | ✔ | ||
| Functional test of proximity pilot | ✔ | ||
| Functional test of control pilot | ✔ | ||
| Isolation test for charging station | ✔ | ||
| 1-phase charging station testing | ✔ | ||
| 1-phase test through socket | ✔ | ||
| 3-phase charging station testing | ✔ | ||
| CP short error simulation (E state) | ✔ | ||
| Additional Features | IP protection | IP 40 | ✔ |
| Protection category | CAT II 300 V | ✔ | |
| Building Facilities | Special locations | EVSE construction and testing | ✔ |
| Transportation | e-Mobility | EVSE domestic installation testing | ✔ |
| EVSE periodic inspection | ✔ | ||
| Renewable power and car charging | ✔ | ||
| Mobile installations | Vehicles with an on-board generator | ✔ | |
| Standards Applied | Building LV Installation | EISinsp Competences: Low Voltage Electrical Installation Safety Inspection | ✔ |
| EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers | ✔ | ||
| IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series | ✔ | ||
| Mobile Units Electrical Safety | ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety | ✔ | |
| Electrical Vehicle Supply Equipment | EVSE Competences: Electrical Vehicle Supply Equipment Safety | ✔ |
Metrel A 1532 Electric Vehicle Charger Tester Compatibility Chart
| Multifunction Installation Tester | A 1532 EVSE Adapter | 6mA RCD | Functional Test | EVSE AUTOSEQUENCE | EVSE Report |
| MI 3155 Eurotest XD | Y | Y | Y | Y | Y |
| MI 3152 Eurotest XC | Y | Y | Y | Y | Y |
| MI 3152H EurotestXC 2.5kV | Y | Y | Y | Y | Y |
| MI 3102 BT Eurotest XE | Y | Y | Y | ||
| MI 3102H BT EurotestXE 2.5kV | Y | Y | |||
| MI 3125 BT Eurotest COMBO | Y | Y | Y | ||
| MI 3100 SE EurotestEASI | Y | ||||
| MI 3100 s EurotestEASI | Y | ||||
| MI 3125 EurotestCOMBO | Y | ||||
| MI 3105 EurotestXA | Y | ||||
| MI 3101 EurotestAT | Y |
Document Downloads
Metrel MI3125BT1 Eurotest Combo Bluetooth Multifunction Tester - Datasheet
Metrel A 1532 EVSE Adaptor Datasheet
Metrel MI3125BT1 Eurotest Combo Bluetooth Multifunction Tester - Instruction Manual
Metrel A1532 EVSE Adapter for Electric Vehicle Charger Testing - User Manual
Metrel A1532 EVSE Adapter for Electric Vehicle Charger Testing - Brochure
Additional Information
SKU
EVKIT1
Manufacturer Part Code
EVKIT1
Country of Origin
Slovenia
Accessories
Product
SKU
MPN
Price (Ex VAT)
Metrel MI3125BT Multifunction Tester & A1532 EVSE Adapter Kit 1
£964.00
£1,156.80 inc vat
£964.00
£1,156.80 inc vat
