Metrel CS 2890 Power Calibrator/ Simulator
- Calibrate and adjust Metrel Class A and Class S PQAs
- Simulate voltage and current power quality phenomena and other electrical events
- 4.3” TFT display
SKU
CS2890
MPN
CS2890
Metrel CS 2890 Power Calibrator/ Simulator

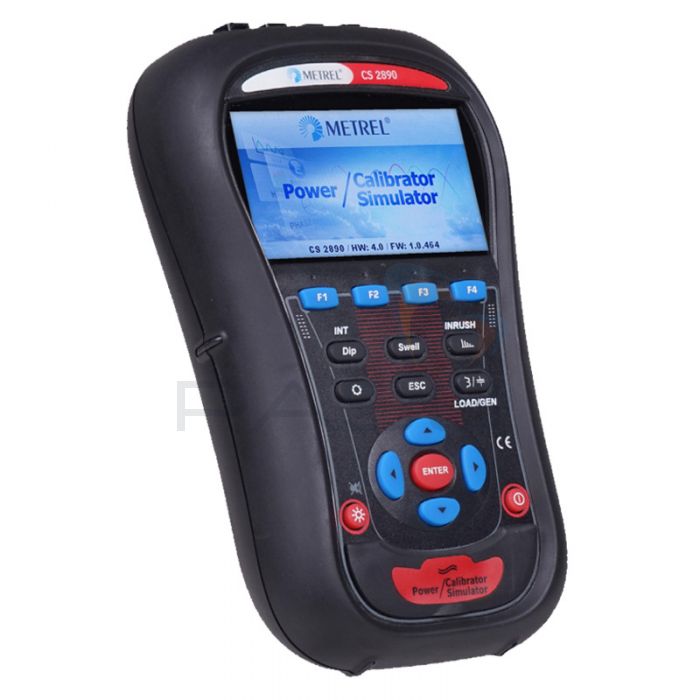

The Metrel CS 2890 Power Calibrator/ Simulator is a handheld, four-phase waveform generator with a 4.3” TFT colour display. It can be used to calibrate and adjust Metrel’s Class A and Class S Power Quality Analysers, as well as simulate voltage and current power quality phenomena and other electrical events. It is ideal for calibration, adjustment, training, demonstration, and education purposes.
Power Simulation
The Metrel CS 2890 Power Calibrator/ Simulator supports simultaneous voltage and current simulation. It features four voltage channels with a simulation range up to 350Vrms and four current channels with current clamp simulation up to 2000A. Furthermore, the Metrel CS 2890 Power Calibrator/ Simulator includes 16-bit digital to analogue conversion for accurate signal generation, as well as comprehensive signal parameter and event occurrence (key, manual, periodically, random) settings which enable simulation of various faults/events and electrical phenomena. It can simulate the following:
- Dip, swell, interrupt, signalling, transient, and inrush events
- Voltage and current harmonics waveforms
- Unbalanced voltage and current waveforms
- Square flicker
- Various character load/ character type (inductive/ capacitive) combinations
- Voltage, current, and frequency
- Harmonics, phase angle, phase sequence, and unbalance (U, I)
Calibration & Adjustment
The Metrel CS 2890 Power Calibrator/ Simulator can be used to calibrate and adjust the following Class A and Class S PQAs:
- Metrel MI 2892 PowerMaster Power Quality Analyser
- Metrel MI 2885 Master Q4 Power Quality Analyser
- Metrel MI 2883 Energy Master Power Quality Analyser
It includes predefined calibration points specific to the aforementioned instruments; these calibration/adjustment points have a voltage/current stability of ±0.06%. It also supports fine adjustment of the calibration points using a highly precise voltmeter.
The Metrel CS 2890 Power Calibrator/ Simulator is a precise, versatile, and ergonomic calibration, adjustment, and simulation instrument.
Key Features
- A handheld, four-phase waveform generator
- 4.3” TFT colour display
- Calibrate and adjust Metrel Class A and Class S Power Quality Analysers
- Simulate voltage and current power quality phenomena, as well as other electrical events
- Ideal for training, demonstration, and education purposes
- Simultaneous voltage and current simulation
- Four voltage channels with a simulation range up to 350Vrms
- Four current channels with current clamp simulation up to 2000A
- 16-bit digital to analogue conversion for accurate signal generation
- Comprehensive signal parameter settings
- Event occurrence programming (key, manual, periodically, random)
- Dip, swell, interrupt, signalling, transient, and inrush event simulation
- Voltage and current harmonics waveform simulation
- Unbalanced voltage and current waveform simulation
- Square flicker simulation
- Various character load/ character type (inductive/ capacitive) combination simulation
- Voltage, current and frequency simulation
- Harmonics, phase angle, phase sequence, and unbalance (U, I) simulation
- Predefined calibration points specific to the relevant Metrel PQAs
- Calibration/ adjustment points have a voltage/current stability of ±0.06%
- Supports fine adjustment of calibration points using a highly precise voltmeter
- Precise, versatile, and ergonomic calibration, adjustment, and simulation instrument
What’s Included?
- Metrel CS 2890 Power Calibrator/ Simulator
- 5x Voltage Measurement Leads (Brown, Black, Grey, Green, Blue)
- Power Supply Cable for Voltage Offset Measurement
- 4x Current Measurement Leads
- Labels for Colour Coding
- Power Supply Adapter
- 6x 1.2V NiMH Rechargeable Battery
- Soft Carrying Case
- USB Cable
- Instruction Manual
- Calibration Certificate
Technical Information
Specification
Metrel CS 2890 Power Calibrator/ Simulator Technical Specifications
| Technical Specification - Calibrator | |||
| Warmup time | Minimum 30 minutes, connection to external power supply required | ||
| Settling time | Less than 10 seconds | ||
| Reference temperature | 23 °C ± 2 °C | ||
| Voltage/current stability | ±0.06 % (90 days) | ||
| Calibration currents | 0.05 – 0.1 – 0.2 – 1 – 2 V | ±0.1 % | |
| Calibration voltages | 5-11-14-23-50-75-110-150-165-206-230-250-345-400-500 V | ±0.1 % | |
| Voltage selection | Frequency | Uncertainty / 90 days |
Setup resolution (under Adjustment menu) |
| 5-11-14-23-50-75-110-150-165-206- 230-250-345-400-500 V |
50 Hz | ±0.06 % | 0.0001 V |
| Technical Specification - Simulator | |||
| Fundamental RMS voltage output | Output voltage AC | Resolution | Accuracy |
| 50 ... 350 V | 10 V | ±0.1 % | |
| Event RMS voltage output | Output voltage AC | Resolution | Accuracy |
| 0 ... 350 V | 0.01 V | ±2 % | |
| Fundamental RMS current | Range | Output voltage | Overall current accuracy |
| A 1033 (1 A ... 2000 A) | 1 mV ... 1 V | ±0.1 % | |
| Inrush RMS current output | Inrush curren | Accuracy | Crest factor |
| Range 1: 2.0 mVRMS ... 200.0 mVRMS | ±0.5 % · URMS | 1.5 | |
| Range 2: 20.0 mVRMS ... 2.0000 VRMS | ±0.5 % · URMS | 1.5 | |
| Frequency | Output range | Resolution | Accuracy |
| 45 Hz ... 70 Hz | 1 Hz | ±10 mHz | |
| Flickers | |||
| Flicker type | Measuring range | Resolution | Accuracy |
| Pst | 0.5 ... 5.0 | 0.1 | ±1 % |
| Voltage harmonics | Measuring range | Resolution | Accuracy |
| Uhn 1 % ... 100 % of fundamental output voltage | 1 % | ±5 % of Uhn | |
| Uhn | Generated harmonic voltage | ||
| n | Harmonic component 2nd ... 50th | ||
| Current harmonics and THD | Measuring range | Resolution | Accuracy |
| Ihn 1 % ... 100 % of fundamental current | 1 % | ±5 % of Ihn | |
| Ihn | Measured harmonic current | ||
| n | Harmonic component 2th ... 50th | ||
| Unbalance | Unbalance Range | Resolution | Accuracy |
| u- | 0.5 % ... 5.0 % | 0.1 % ±0.15 % | |
| i- | 0.0 % ... 20 % | 0.1 % ± 1 % | |
| Overdeviation and underdeviation | Measuring range | Resolution | Accuracy |
| U Over | 0 ... 50 % UNom | 0.001 % ±0.15 % | |
| U Under | 0 ... 90 % UNom | 0.001 % ±0.15 % | |
| Event duration and recorder time-stamp and uncertainty | Measuring range | Resolution | Error |
| Event duration | 10 ms ... 7 days | 1 ms ±1 cycle | |
| Event duration (signalling) | 1 s ... 100 s | 100 ms | |
| Record and event timestamp | N/A | 1 ms ±1 cycle | |
| General | |||
| Measuring category | CAT I / 300 V | ||
| Dimensions | 230 x 140 x 80 mm | ||
| Weight (with batteries) | 1.36 kg | ||
| Display | Colour 4.3 TFT liquid crystal display (LCD) with backlight, 480 x 272 dots. | ||
| Batteries | 6 x 1.2 V NiMH rechargeable batteries type HR 6 (AA) | ||
| Working temperature range | 0 °C ... +40 °C | ||
