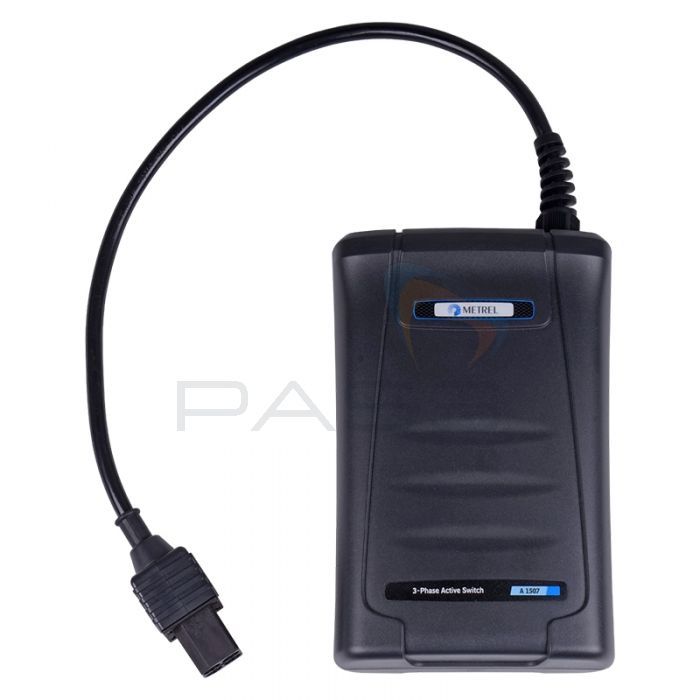

Metrel A1507 3-Phase Active Switch
- Voltage and three-phase sequence
- Insulation resistance
- Resistance to earth
- RCD testing
- Automatic On/Off
SKU
A1507
MPN
A1507
The Metrel A1507 3-Phase Active Switch is designed for use with Metrel’s electrical installation testers (MI3155 EurotestXD or MI3152 EurotestXC) with Auto Sequences® and can be used to automate the process of electrical safety testing three-phase circuits.
To this end, the Metrel A1507 3-Phase Active Switch is equipped with banana socket outputs, crocodile clips, test leads and test tips which facilitate connections to three-phase systems. It is also possible to connect the Metrel A1507 3-Phase Active Switch to three-phase sockets using ADDITIONAL adapters.
The Metrel A1507 3-Phase Active Switch is motor-driven through communication with compatible Metrel electrical safety testers and is able to support the following measurements:
- Voltage and three-phase sequence
- Insulation resistance
- Continuity of protective conductor
- Resistance to earth
- Resistance N-PE
- RCD testing
- Loop/ line impedance
Finally, the Metrel A1507 3-Phase Active Switch features an Automatic On/Off function allowing it to conserve battery power and adding to its ease of operation.
The Metrel A1507 3-Phase Active Switch is a useful accessory for automating the process of electrical safety testing three-phase circuits.
Metrel A1507 3-Phase Active Switch Key Features
- Designed for use with Metrel’s MI3155 EurotestXD and MI3152 EurotestXC electrical installation testers with Auto Sequences®
- Automate the process of electrical safety testing three-phase circuits
- Equipped with banana socket outputs, crocodile clips, test leads and test tips
- Connect to three-phase systems using the crocodile clips and probes
- Connect to three-phase sockets using ADDITIONAL adapters
- Motor-driven through Bluetooth communication with compatible Metrel electrical safety testers
- Supports an array of tests/ measurements
- Voltage and three-phase sequence
- Insulation resistance
- Continuity of protective conductor
- Resistance to earth
- Resistance N-PE
- RCD testing
- Loop/ line impedance
- Automatic On/Off
- A useful accessory for automating the process of electrical safety testing three-phase circuits
What’s Included?
- Metrel A1507 3-Phase Active Switch
- Power Supply Adapter
- 3x Type AA NiMH Rechargeable Batteries
- 1.5m Test Leads: 3x Black, 1x Green, 1x Blue
- Test Tips: 3x Black, 1x Green, 1x Blue
- Crocodile Clips: 3x Black, 1x Green, 1x Blue
- Small Soft Carrying Bag
- Instruction Manual
- Calibration Certificate
£808.48
£970.18 inc vat
Stock Due:
Typically 1-6 Days
Technical Information
Specification
Metrel A1507 3-Phase Active Switch Technical Specifications
| Battery power supply | 4.5 V d.c. (3 x 1.5 V battery or accu, size AA) |
| Operation | Typical 10 h |
| Measuring category | 600 V CAT III, 300 V CAT IV |
| Degree of protection | IP 54 (case open) |
| Dimensions (L x W x H) | 13 cm x 7 cm x 20 cm |
| Working temperature range | 0 °C … 40 °C |
| Maximum relative humidity | 95 %RH (0 °C … 40 °C), non-condensing |
| Supported Instruments | MI 3152 EurotestXC |
| MI 3152H EurotestXC 2.5kV | |
| MI 3155 EurotestXD | |
| Standards | Electromagnetic compatibility |
| EN 61326-1 | |
| EN 61326-2-2 | |
| Safety | |
| EN 61010-1 | |
| EN 61010-2-030 | |
| EN 61010-031 |
Document Downloads
Metrel A1507 3-Phase Active Switch - Datasheet
Metrel A1507 3-Phase Active Switch - Datasheet
Metrel A1507 3-Phase Active Switch - Datasheet
Additional Information
SKU
A1507
Manufacturer Part Code
A1507
Country of Origin
Slovenia
