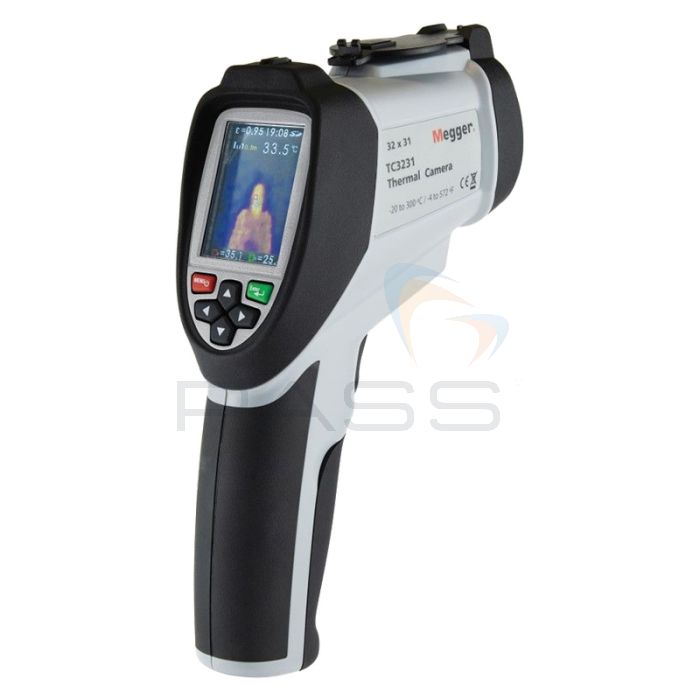

Megger TC3231 Spot Thermal Imaging Camera (9Hz)
Megger TC3231 Spot Thermal Imaging Camera
The Megger TC3231 Spot Thermal Imaging Camera functions as a combined infrared imaging camera and infrared thermometer. It is ideal for basic troubleshooting and qualitative hot/cold spot detection. For instance, this thermal imaging camera can be used to detect faulty electrical components and exposed blocked pipes.
The Megger TC3231 has a field-of-view of 38° x 38°, a fixed focus, and automatic level and span. It has a frame rate of 9Hz, a thermal sensitivity (NETD) of ≤ 150mK, and is able to measure temperatures between -20°C and +300°C.
The thermal images have an IR resolution of 32 x 31px and include 992 measurement points. This infrared imager compensates for reflected temperature and provides on-screen emissivity correction. The user can view the centre-spot temperature and can program the TC3231 to include temperature alarms, allowing him/her to identify potential issues quickly. In addition to this, the camera includes selectable thermal palettes allowing the operator to tailor the thermal image to the application.
Furthermore, it includes a visual camera which captures digital images that may be overlaid onto thermal images to enhance features; this is particularly useful when pinpointing the source of faults such as the failing component on an electrical panel.
Up to six-thousand thermal images can be saved to the supplied microSD card; these pictures can be downloaded to a PC as .BMP files for inclusion in reports. The TC3231 features USB interface to facilitate image download as well as recharging of its Li-Ion battery. It also features an Auto Power Off function which will turn the IR imager off after ten minutes of inactivity.
The Megger TC3231 Spot Thermal Imaging Camera is a combined thermal imager and infrared thermometer that provides a simple, efficient and effective solution to basic troubleshooting and hot and cold spot tracking.
Key Features
- Combined infrared imaging camera and infrared thermometer
- Ideal for basic troubleshooting and qualitative hot/ cold spot detection
- Detect faulty electrical components
- Identify exposed blocked pipes
- FOV: 38° x 38°
- Fixed focus
- Automatic level and span
- Frame rate: 9Hz
- Thermal sensitivity (NETD): ≤150mK
- Temperature range: -20°C to +300°C
- IR resolution: 31 x 32px
- 992 measurement points
- Compensates for reflected temperature
- Provides on-screen emissivity correction
- View centre-spot temperature
- Programmable temperature alarms
- Visual camera
- Digital images can be overlaid onto thermal images to enhance details
- Date/ time setup controls
- Save up to 6000 images to the microSD card
- Download pictures to a PC as .BMP files
- USB interface for downloading and charging
- Li-Ion battery
- Auto Power Off: switches the IR imager off after ten minutes of inactivity
- Provides a simple, efficient and effective solution to troubleshooting and hot and cold spot tracking
What’s Included?
- Megger TC3231 Spot Thermal Imaging Camera (9Hz)
- USB Mains Charger
- Charger Adapters (UK, Schuko, US, AUS)
- USB Lead
- MicroSD Card
- SD Card Adapter
Megger TC3231 Spot Thermal Imaging Camera Technical Specifications
| Temperature | |
| Measurement Range | -20 to 300 °C (-4° to 572 °F) |
| Measurement Accuracy | +/-2% +/-2 °C as tested (at 25 °C) |
| On-Screen Emissivity Correction | Yes |
| On-Screen Reflected Background Temperature Compensation | Yes |
| Image Performance | |
| Image Capture Frequency | 9Hz |
| Detector Type | Un-cooled pyroelectric ceramic |
| Thermal Sensitivity (NETD) | ≤ 150 mK |
| Infrared Spectral Band | 6.5 μm to 14 μm |
| Visual Camera | 48608 pixels |
| Field of View | 38° x 38° |
| Focus Mechanism | Fixed Focus |
| Image Presentation | |
| Palettes | Hot Metal, Ironbow, Rainbow, Rainbow High Contrast, Grayscale (white hot), Grayscale (black hot) |
| Level and Span | Auto |
| Image Capture and Data Storage | |
| Image Capture | Image available for review before a save |
| Storage Medium | Micro SD memory card, stores up to 6,000 images, 4 GB supplied |
| File Format | bmp |
| Memory Review | Scroll through all saved images and view on-screen images / delete unwanted images |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +60 °C |
| Relative Humidity | 10 % to 90 % non-condensing |
| Display | 2.2 inch (55.88 mm) diagonal, 320 x 240 TFT LCD |
| Overload Display | - |
| Dimensions | 208 mm (H) x 62 mm (W) x 150 mm (D) |
| Weight | 406 g (including battery) |
| Battery (fitted) | 18500 3.7 V 1400 mAh Li-Ion |
| Auto Power Off | 10 minutes |
