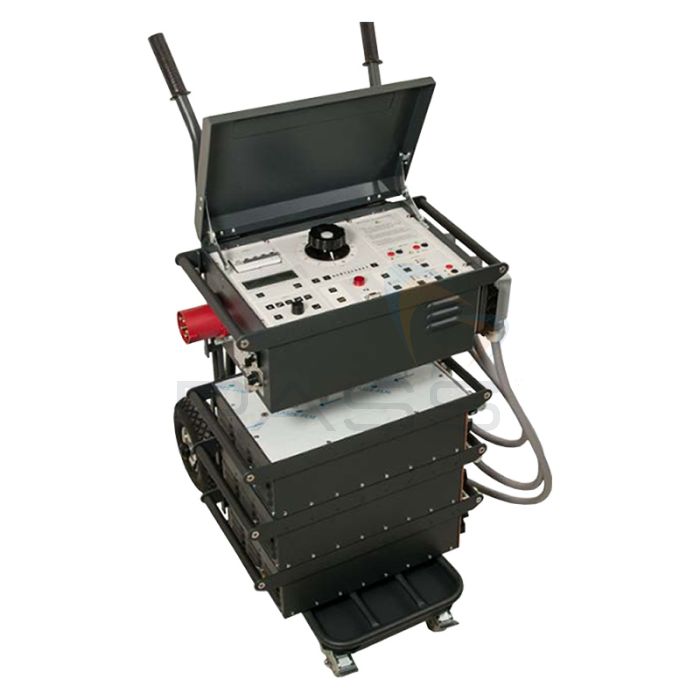

Megger ODEN 240V AT/S/X/H Primary Current Injection Test System
Description

The Megger ODEN AT primary current injection test system has been specially designed for testing protective relay equipment and circuit breakers. It can also be used to test the turn ratio of current transformers and for other applications that require high variable currents. The ODEN AT can also be set to test circuit breakers with reclosing relays and sectionalisers and is ideal for performing heat runs as the current can be applied continuously or through programmable intervals. It is also capable of testing the integrity of ground grids and safety-ground devices.

The system consists of a control unit with one, two, or three current units. There are three versions of the current unit: S, X, and H. The S and X current units are identical except that the X unit has an additional 30/60 V output. The H unit is rated for an even higher current. These current units make it possible to configure the ODEN AT system for a range of different tests.

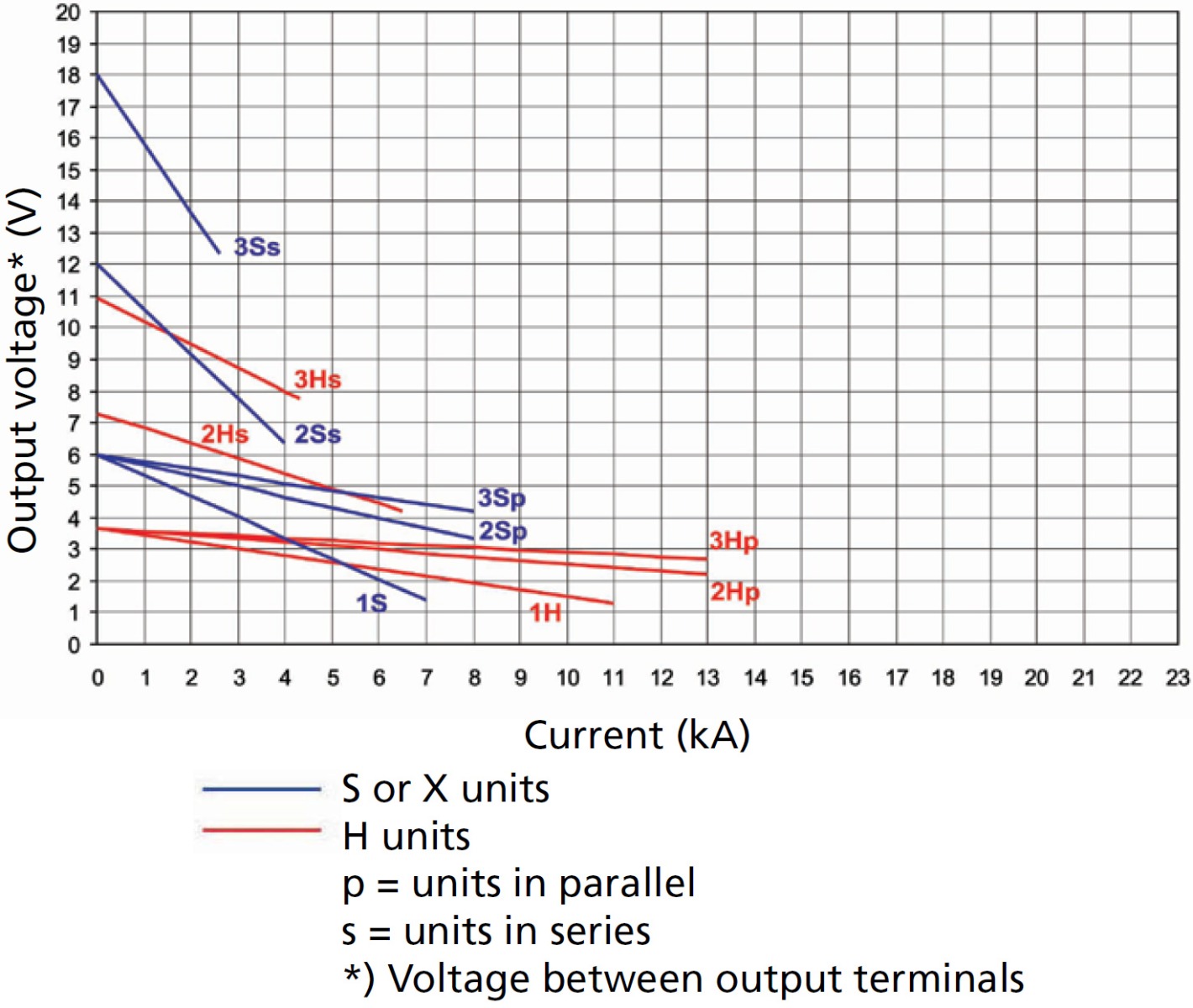

High current output - ODEN AT systems for 240 V, 50 Hz

Megger ODEN 240V AT/S/X/H Primary Current Injection Test System - High current output - ODEN AT systems for 240 V, 50 Hz

The control unit has many advanced features, such as a powerful measurement section that can display turn ratio as well as time, voltage, and current. A second measurement channel can also be used to test an additional current or voltage. The ODEN AT can calculate the current transformer turns ratio, impedance, resistance, power, power factor/tan delta, and phase angle.

The current and voltage can be presented as percentages of nominal value. It also has a fast-acting hold function that freezes short-duration readings on the digital display, so when the voltage or contact signal arrives at the 'stop' input, the object under test interrupts the current, or the injection is stopped.

All parts are portable, and the ODEN AT can be quickly assembled and connected. An ODEN AT system consists of a control unit and one, two, or three current units. There are three different versions of the current units: S-unit (standard), X-unit (extra 30/60 V outlet), and H-unit (high current). The system designation indicates the number and version of current units included.

Key Features

  1. Display
  2. Miniature circuit breaker used for current output
  3. Current reduction button
  4. Fine adjustment knob
  5. Indicator lamps
  6. Input for voltmeter
  7. Input for ammeter 2
  8. Hold function
  9. Selection/setting (CHANGE) knob
  10. Setting buttons
  11. Injection
  12. Momentary Injection
  13. Red warning lamp
  14. Manual shut-off
  15. Automatic injection stop
  16. Stop-condition indicator
  17. Status indicator
  18. Stop input
  19. USB port
Megger ODEN 240V AT/S/X/H Primary Current Injection Test System Layout

What's Included?

  • 0.7-metre ground cable
  • 0.22-metre ground cable
  • 5-metre ground cable
  • Cable set
  • 5-metre 240 V mains voltage cable
Ground cable GA-00204, 5m (16ft)

5-metre ground cable

240 V Mains voltage 04-00094, 5m

5-metre 240 V mains voltage cable

GA-00240 0.7m ground cable

0.7-metre ground cable

GA-00230 0.22m ground cable

0.22-metre ground cable

Cable set GA-02052

Cable set

Product Range

  • Megger BH-42420 ODEN AT 240C 240 V Control Unit
  • Megger BH-52410 ODEN 240S 240 V Standard Current Unit
  • Megger BH-52420 ODEN 240X 240 V Current Unit Extra Winding
  • Megger BH-52430 ODEN 240H 240 V High Current Unit
  • Megger BH-62411 ODEN AT/1S 240 V 1 Control Unit, 1 S Current Unit
  • Megger BH-62412 ODEN AT/2S 240 V 1 Control Unit, 2 S Current Units
  • Megger BH-62413 ODEN AT/3S 240 V 1 Control Unit, 3 S Current Units
  • Megger BH-62421 ODEN AT/1X 240 V 1 Control Unit, 1 X Current Unit
  • Megger BH-62422 ODEN AT/2X 240 V 1 Control Unit, 2 X Current Units
  • Megger BH-62423 ODEN AT/3X 240 V 1 Control Unit, 3 X Current Units
  • Megger BH-62431 ODEN AT/1H 240 V 1 Control Unit, 1 H Current Unit
  • Megger BH-62432 ODEN AT/2H 240 V 1 Control Unit, 2 H Current Units
  • Megger BH-62433 ODEN AT/3H 240 V 1 Control Unit, 3 H Current Units
Downloads

Datasheets

Megger ODEN Systems Datasheet Datasheets
Tech Specs
SPECIFICATIONS ODEN AT
Specifications are valid at nominal input voltage and an ambient temperature of +25°C, (77°F). Specifications are subject to change without notice.
Environment Application Field The instrument is intended for use in high-voltage substations and industrial environments
Operating Temperature 0°C to +50°C (+32°F to +122°F)
Storage & Transport Temperature -25°C to +55°C (-13°F to +127°F)
Humidity 5% - 95% RH, non-condensing
CE-Marking LVD 2014/35/EU
EMC 2014/30/EU
RoHS 2011/65/EU
General Mains Voltage 240 V AC, 50 / 60 Hz
Mains Inlet IEC 60309-2, 63 A
Input Current Output current x open circuit voltage / input voltage
Protection The output transformer has a built-in thermal cut-out, and a miniature circuit breaker protects the primary side
Control Unit AT Dimensions 570 x 310 x 230 mm (22.4” x 12.2” x 9”)
Current Unit S, X H Dimensions 570 x 310 x 155 mm (22.4” x 12.2” x 6”)
Dimensions Complete with Cart 690 x 350 x 860 mm (27.2” x 13.8” x 33.9”)
Control Unit AT Weight 25 kg (55 lbs)
Current Unit S Weight 42 kg (92.6 lbs)
Current Unit X Weight 45 kg (99.3 lbs)
Current Unit H Weight 49 kg (108 lbs)
Cart Weight 11 kg (24.3 lbs)
Display LCD
Available Languages English, German, French, Spanish, Swedish
Measurement Section Ammeter 1 Measurement method AC, true RMS (or DC if the function is activated)
Ammeter 1 Inaccuracy 1% of range ±1 digit
Ammeter 1 Ranges Current unit S, 0 - 4800 A / 0 - 15 kA
Current unit H, 0 - 9600 A / 0 - 30
Current unit X, 0 - 960 A / 0 - 3 kA
The above is valid for one current unit or units in parallel.
Ammeter 2 Ranges 0 - 2.000 A / 0 - 20.00 A
Voltmeter Measurement Method AC, true RMS (or DC if activated)
Voltmeter Ranges 0 - 9.999 V
10.00 - 99.99 V
100.0 - 200.0 V
Voltmeter Inaccuracy 1% of range ±1 digit
Voltmeter Input Resistance (Rin) 240 kΩ (range 0 - 200 V)
24 kΩ (other ranges)
Voltmeter Dielectric Withstand 2.5 kV
Timer Presentation In seconds, mains frequency cycles or hours and minutes
Timer Ranges 0.000 - 999.9 s
0 - 9999 cycles
0.001 s - 99 h 59 min
Timer Inaccuracy ±(1 digit + 0.01% of value)
For the stop condition in INT-mode, 1 ms shall be added to the specified measurement error
Stop Input Max. Input Voltage 250 V AC / 275 V DC
Phase Angle Range 0 - 359º
Phase Angle Resolution
Phase Angle Inaccuracy ±2º (for voltage and current readings that are higher than 10% of the selected range)
Z, P, R, X, S, Q and Power Factor (cos φ) For these measurements, the result is calculated using U, I, and sometimes φ
Imax Stores the highest current value that exists ≥100 ms
INT-level Threshold indicating that current is interrupted. It can be set to 0.7% or 2.1% of the Ammeter 1 range
