Megger HVB10 High Voltage Bridge - Optional Audio Frequency (HVB 10-1-AF)
- Perform sheath testing
- Reduce downtime
- Standard and high-accuracy modes

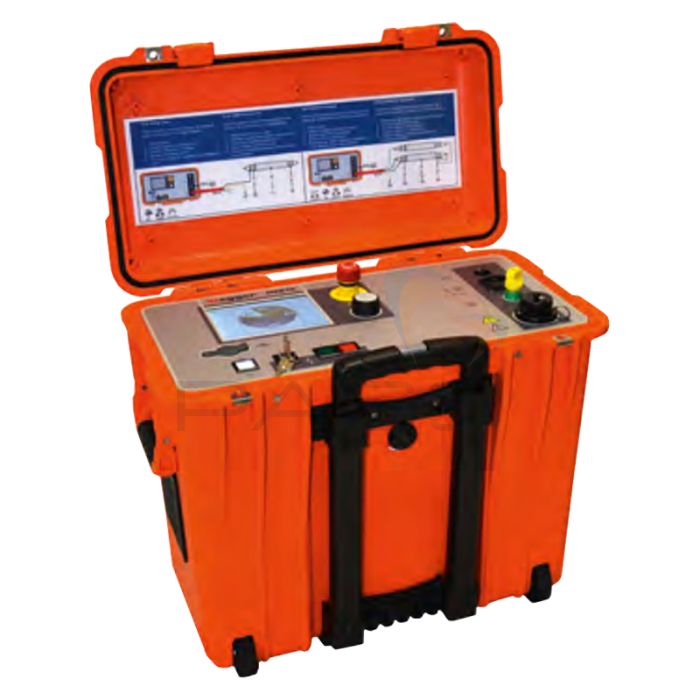

The Megger HVB10 is a highly accurate high voltage (HV) bridge designed to locate cable and sheath faults, perform sheath testing, and pinpoint sheath faults. It is particularly suited for long HV cables.
With its top resolution, intermittent fault detection function, and load adaptation for faster cable charging, the HVB10 is an indispensable tool for all utilities that want to reduce downtime and facilitate the repair of power in, for example, pilot and communication cables.
The HVB10 has two different methods for fault locations, a standard mode, and a high-accuracy mode.
The standard mode provides good results for typical sheath faults with fault resistances of up to some hundreds of kilo Ohms and shieldS cross sections in the range of 25 to 50 mm2. This measurement is typically done in an app within 30 seconds
The high accuracy mode takes approximately 1 minute for the algorithm to complete but will use the full potential of the measuring and control circuits of the instrument. Thus, it is ideally suited for pre-locating difficult, high-resistive faults (e.g., in the inner insulation of PILC cables). An intermittent fault detection algorithm is applied to gain a result under even worse conditions with sparking faults. An Audio Frequency option is available.
Key Features
- Top-class measurement and accuracy
- Automatic test sequence
- Bi-polar pre-location for the elimination of external influences
- Detection and indication of wrong connections
- Only one high-voltage connection cable
- Completely independent of the parameters of auxiliary lines
- Easy Go operating system
- Touch-screen display
- USB port
- On/off push-button
- HV “interlock” key switch
- “HV ON” push-button
- “HV OFF” push-button
- Rotary encoder
- Protective earthing connection
- HV output
The HVB 10 generates a dangerous voltage of up to 10 kV during HV operation. This is induced into the HV connection cable through the HV output.
- Power supply socket with fuses F1 / F2 (2 x M6.3/250)
- 12 … 24 V DC charging socket
- Emergency off button
- Socket to connect the external safety device
Product Range
- Megger 1012574 HVB 10 HV Test Bridge-System
- Megger 1012575 HVB 10-AF HV Test Bridge-System AF
Call 01642 931 329 or complete the form:
| Output Voltage | 0 ... 10 kV DC, bi-polar |
|---|---|
| Output Current | 200 mA @ 0.5 ... 1.5 kV, 60 mA @ 5 kV, 30 mA @ 10 kV |
| Max. Test Object Capacity | 25 μF |
| Test Voltage | 0 ... - 10 kV |
| Prelocation Method | Voltage drop method (automatic.) |
| Accuracy | ± 0,1 % |
| Pinpointing | 0 ... - 10 kV DC, pulsed |
| Voltage | 0.5:1 / 1:2 / 1.5:0.5 / 1.5:3.5 |
| Pulse Rate | 3 and 4.8 Hz for A-frame |
| Supply Voltage | 88 V ... 264 V, 50/60 Hz |
| DC Supply (charge only) | 12/24 V DC |
| Battery | Int. NiMH battery (340 Wh) |
| Battery Operating Time | approx. 2 hours |
| Power Consumption | max. 500 VA |
| Display | 320 x 240 pixel LCD, LED rear light |
| Interfaces | USB port |
| Storage | 2 GB Flash memory for System and data |
| Data logging | by USB stick |
| Operating Temperature | 25° C ... + 55° C, max. 93 % rel. humidity |
| Storage Temperature | - 40° C ... + 70° C |
| Dimensions (W x H x D) | 500 x 457 x 305 mm |
| Weight | 25 kg |
| Protection Class Acc. IEC 61140 | I (Protective earthing) |
| Protection Class Acc. IEC 60529 | IP 53 (with closed lid) |
