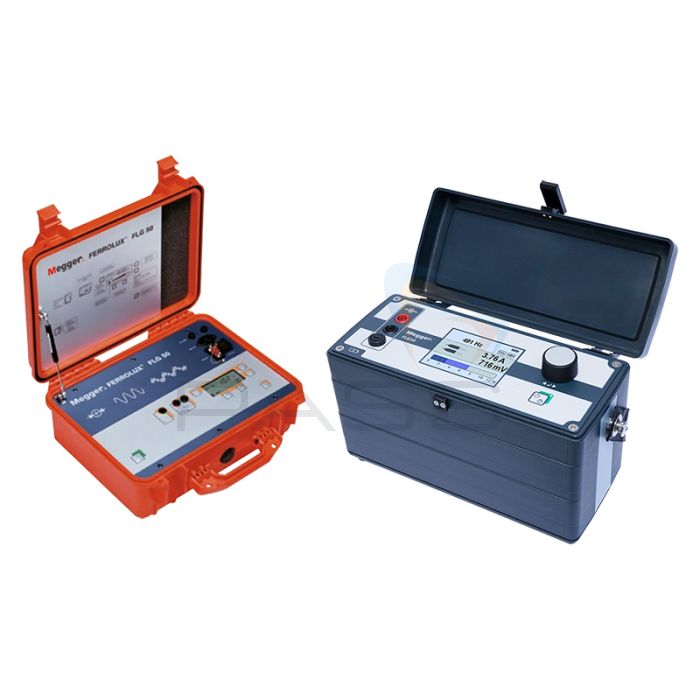

Megger FLG 12/50 Ferrolux Audio Frequency Generator - 12 or 50W
- Durable operation
- Precise location with SignalSelect
- Available in 12W or 50W models
SKU
FLG-1012XXX
The Megger Ferrolux FLG audio frequency generator is a measuring system that provides solutions to a wide variety of problems for operators of power and telecommunication cable systems as well as public utility companies for gas and water supply. The Ferrolux FLG can be used for cable tracing, cable selection, cable fault location, or the location of metallic pipelines.
The Ferrolux FLG can transmit all available frequencies simultaneously. It eliminates the need to switch frequencies manually on the transmitter while tracing the line.
Furthermore, a pulsed signal allows for clear identification of the transmitter signal in a noisy environment. The Ferrolux FLG transmitter has an integrated antenna for inductive coupling of the signal and a large colour display and the proven EasyGo menu allows for intuitive operation.
The instrument measures and displays the loop impedance of the test object, output voltage, current, and phase angle. Continuous operation when feeding capacitive loads (insulated gas pipes) or inductive loads (shorted cables) also does not cause any overheating problems. Available in 12W or 50W models.
Key Features
- Precise location, even above a bunch of cables, with SignalSelect
- Multi-frequency operation prevents manual switching
- Durable operation
- Automatic impedance matching
- Intuitive EasyGO operation system
- Automatic or manual selection of frequencies
- Pulsed signal operation
- Indication of output voltage which is dangerous to touch
- Protected against external voltage
- In-built antenna for inductive coupling
- Vehicle charging
What's Included? FLG12
- Generator
- Carrying strap
- Mains charging adapter
- Test leads
- Earth spike
What's Included? FLG50
- Generator
- Set of cables
- Main cables
- Accessory bag
Product Range
- Megger 1012522 FLG 12-VS, AF Transmitter Ferrolux 12W
- Megger 1012965 FLG 50-VS, AF Transmitter Ferrolux 50W
Technical Information
Specification
| Ferrolux FLG12 | Ferrolux FLG50 | |
|---|---|---|
| Output Power | 0 ... 12 W | 0 ... 50 W, manually switchable in 2.5 W increments |
| Output Current | 0 ... 5 A | 10A max |
| Output Frequencies | 491 Hz, 512 Hz, 640 Hz, 982 Hz, 1090 Hz, 8440 Hz, 9820 Hz, 32768 Hz | 491 Hz / 982 Hz / 8440 Hz (user-specific frequencies on request) |
| Impedance Matching | Automatic from 0.5 ... 1024 Ω | 0.5 ... 1024 Ω, automatically |
| Operating Time | >2,5 hours at 12 W | >1 h at PA = 50 W, >5 h at P A = 10 W |
| Operating Temperature | -20 ̊C ... 55 ̊C | -20 ºC ... +55 ºC |
| Weight | 2.4 kg | approx. 14 kg |
| Dimensions (W x H x D) | 250 mm x 170 mm x 120 mm | 410 mm x 335 mm x 175 mm |
| IP Protection Class | IP 54 (IEC60529 (DIN VDE 0470-1)) | IP 54 |
