Megger DLRO10X Low Resistance Ohmmeter w/ DH4-C Duplex Probe Lead Set

SKU
MEGLO44
Rating:
0%
(0)
Reward Points
:
3999
£4,798.80 £3,999.00
2 in Stock
Free UK Delivery*

Black Friday - Free Items With Orders Over £300

Black Friday Freebies
Spend £100 to £749.99
LED Head Torch (Worth: £15.99)

Spend Over £750
Free LED Head Torch & Extendable Flash Light (Worth: £35.98)

Prices Ex VAT
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know

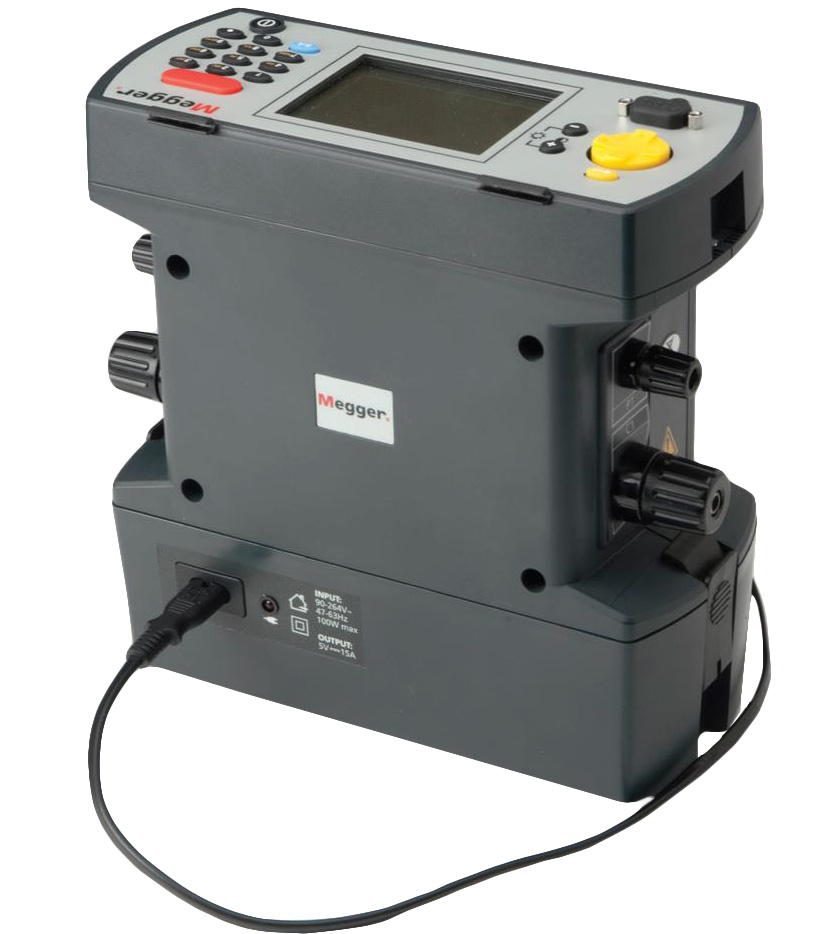

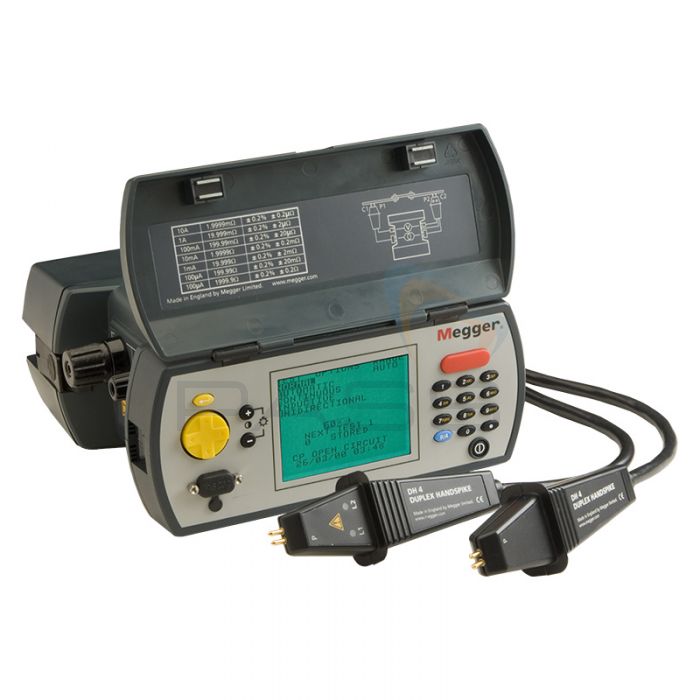

Megger DLRO10X Low Resistance Ohmmeter with DH4-C Duplex Probe Lead Set

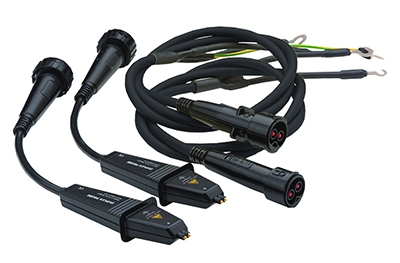

Megger DH4-C Test Leads for DLRO10X

Important Note

This kit version of the Megger DLRO10 includes Megger's DH4-C (part number 1006-444) two-wire, four-terminal duplex probe lead set as standard.

The lead set consists of:

  • DP1-C - Duplex Probes (2x Included)
  • TL1.50C - 1.5m Connect Lead (1x)
  • TL1.5-CL - 1.5m Connect Lead with Indicator Lights

These leads are suitable for use with Megger's DLRO10, DLRO10X and DLRO10HD.

About the Megger DLRO10X Low Resistance Ohmmeter

The Megger DLRO10X is a powerful, easy-to-use low resistance ohmmeter (digital microhmeter) suitable for a wide variety of DC resistance measurement applications including:

  • Switch and contact breaker resistance
  • Busbar and cable joints
  • Aircraft frame bonds and static control circuits
  • Integrity of welded joints
  • Inter-cell connections on battery systems up to 600V peak
  • Quality control of resistive components
  • Transformer and motor winding resistance
  • Rail and pipe bonds
  • Metal alloys, welds and fuse resistance
  • Graphite electrodes and other composites
  • Wire and cable resistance
  • Transmitter aerial and lightning conductor bonding

Megger's DLRO10X is the upgraded version of the standard DLRO10. The main differences between the two units are that the DLRO10X has a built-in alpha-numerical keypad for entering test notes, allows the user to select high and low testing limits and can also output results to a PC or a printer (sold separately) after testing by storing results in its internal memory.

When testing, the DLRO10X makes performing testing procedures as simple as possible thanks to fully automatic procedures. The DLRO10X is intelligent enough to automatically select the most suitable testing circuit up to 10A DC and can be used to measure resistance from 0.1μΩ to 2000Ω across 7 different measurement ranges.

If you require more control over measurements, the DLRO10X has a built-in menu system which is controlled by a two-axis paddle. This allows you to manually select the maximum test current as needed to cater for use in a wide variety of different applications.

There's so much more to the DLRO10X too - see below for a comprehensive breakdown of the features of this advanced low resistance ohmmeter.

Supplied with Megger's Duplex Connect Test Leads

Megger's DLRO duplex connect leads are designed to make sure you have all of the test lead terminations and lead lengths you need to cater for any application encountered when performing low resistance testing.

Their unique lead system includes a bespoke connector which allows connection of kelvin clips or duplex test probes to be changed as required, with simple push and twist changing and a lockable twist cap to secure in place.

This pack includes 2 x duplex probes and the leads required for measurements - various optional leads in other lengths, including extension leads are also available for purchase (see below for more information). Optional connectors such as kelvin clips are also available for purchase separately.

The system is fully modular, so you can buy additional accessories at a later date as and when needed.

Megger DLRO10X Low Resistance Ohmmeter Key Features

  • Powerful instrument ideal for any low resistance measurement application with range from 0.1μΩ to 2000Ω (7 ranges)
  • Manual and automatic modes - automatically choose a test current of up to 10A DC or you can manually set the test current yourself
  • Variety of different measurement modes:
  • Normal Mode - initiates a test by pressing the Test button on the instrument front panel after connecting the test leads. Continuity on all four connections is checked, forward and reverse currents are applied
  • Auto Mode - allows forward and reverse current measurements to be made and the average displayed simply by making contact with all four probes
  • Continuous Mode - allows repeated measurements to be made on the same sample
  • Inductive Mode - intended for use when measuring inductive loads
  • Unidirectional Mode - exclusive to the DLRO10X - applies a current in one direction only
  • Small, lightweight and portable design - ideal for use in tight places, reducing the need for extra long leads and two person operation
  • Four terminal resistance method - shows the true resistance of the item under test
  • Bright LCD display which is clearly visible under all lighting conditions
  • Automatically applies forward/reverse currents which cancel out any standing voltages on sample under test
  • Checks for excessive noise during measurements to ensure accurate results
  • Automatically detects continuity in P and C circuits, preventing erroneously high readings taking due to high resistance contact
  • Powered by a NiMH rechargeable battery pack (interchangeable). Optional mains/line power supply available
  • Internal memory storage with download to PC via RS232 connection
  • Printer output (printer sold separately)
  • Alpha-numerical keypad for entering test notes
  • User-selectable high and low limits for simple go-no-go testing
  • Interchangeable, modular test leads with simple push and twist connection. Compatible with a wide range of optional probes and accessories (see below for more information)

What's Included?

  • Megger DLRO10X Low Resistance Ohmmeter
  • 7Ah NiMH Battery Module
  • DH4 Duplex Handspikes (x2)
  • Test Leads
  • Battery Charger
  • Cigar Lighter Adapter
  • User Guide
  • Warranty Card

Optional Accessories

  • 18313: Carrying Bag for Cables
  • 249000: Calibration Shunt, 10Ω, 1mA
  • 249001: Calibration Shunt, 1Ω, 10mA
  • 249002: Calibration Shunt, 100mΩ, current rating 1A
  • 249003: Calibration Shunt, 10mΩ, current rating 10A
  • CERT-NIST: Calibration Certificate for Shunts
  • DLRO10LPU-EU: Mains Power Attachment with Schuko Plug
  • DLRO10LPU-UK: Mains Power Attachment with UK Plug
  • DLRO10LPU-US: Mains Power Attachment with US Plug
  • 25940-021: Needle Point Replacement Tips for DH4, DH5 and DH6 Handspikes
  • 25940-014: Serrated End Replacement Tips for DH4, DH5 and DH6 Handspikes

Test leads (please download the datasheet below for much more information on optional test leads):

  • 1006-456: TL1.5-CL Connect Test Leads with Indicator Lights (1.5m)
  • 1006-458: TL3-CL Connect Test Leads with Indicator Lights (3m)
  • 1006-459: TL6-CL Connect Test Leads with Indicator Lights (6m)
  • 1006-452: TL1.5-C Connect Test Leads no Lights (1.5m)
  • 1006-454: TL3-C Connect Test Leads with no Lights (3m)
  • 1006-455: TL6-C Connect Test Leads with no Lights (6m)
  • 1006-460: EL6-C Extension Lead (6m)
  • 1006-450: DP1-C Duplex Connect Handspike Probe
  • 1006-449: DTP1-C Duplex Connect Twist Probe
  • 1006-448: CP1-C Concentric Duplex Connect Probe
  • 1006-447: Heavy Duty Kelvin Clip
  • 1006-451: Large Touchproof Insulated Clip with Adjustable Jaw Opening
  • 1006-444: DH4-C Complete Lead Set with 2 x Duplex Probes, 1.5m Connect Lead and 1.5m Connect Lead with Indicator Lights
  • 1006-462: KC1-Tl3-C Kelvin Clip 3m Lead Set with 2 x Kelvin Clips, 3m Connect Lead and 3m Connect Lead with Indicator Lights
  • 1006-461: KL2-C Insulated Kelvin Clip Set with 2 x Insulated Kelvin Clips, 3m Connect Lead and 3m Connect Lead with Indicator Lights

Megger DLRO10 Technical Specifications/Comparison Chart

The following table outlines the functionality of the Megger DLRO10 as well as the differences between the DLRO10 and the DLRO10X.

  DLRO 10 DLRO 10X
Measurement
Mode  Manual, Auto, Continuous, Inductive  Manual, Auto, Continuous, Inductive, Undirectional
Control Fully Automatic Fully Automatic/Manual
Speed  <3s for forward & reverse current and to display average
 Display
 Measurement  4 1/2 digit seven segment LED
 Range and Safety  LED indication Large backlit LCD
 Test Method Single cycle reversing d.c. ratiometric measurement -average result display
 Test Current
 Accuracy  ±10%
 Stability  <10 ppm per second
 Maximum Lead Resistance  100 mΩ total for 10 A operation irrespective of battery
condition.
 Voltmeter Input Impedance  > 200 kΩ
Hum Rejection Less than 1% ±20 digits additional error with 100 mV peak 50/60 Hz. on the potential leads. Warning will show if hum or noise exceeds this level.
 Data Transfer  - Real Time or from storage via RS232
 Storage  - 700 tests
 Memo Field  - Up to 200 characters per test via integral alphanumeric keypad
 Battery Capacity 7 Ah NiMH rechargeable
 Battery Life  Typical 1000 x 10A Tests Before Recharge
 Recharge Via external 90 V - 260 V 50/60 Hz charger or from 12 to 15 V dc supply
 Standard Charging Rate 2.5 hours to 90% capacity, 4 hrs for full charge
 Temperature  +5 ºC to +45 ºC (41 ºF to 113 ºF) at full specification
-10 ºC to +50 ºC (14 ºF to 122 ºF) at reduced accuracy
Storage Co-Efficient  -30 ºC to +70 ºC (-22 ºF to 158 ºF)
 Slow Charging <0.01% per ºC over range 5 ºC to 40 ºC (<0.006% per ºF from 4 1ºF to 104 ºF)
 Humidity (MAX)  +10 ºC to +45 ºC (50 ºF to 113 ºF)
 Altitude (MAX)  90% RH @ 40 ºC (104 ºF) non-condensing
Safety  2000 m (6562 ft) to full safety specifications
 EMC  In accordance with IEC61010-1 600 V Category III - only when DH6 leads are used.
In accordance with IEC61326-1
 Dimensions  220 x 100 x 237 mm (8.6 x 4 x 9.5 in)
 Weight  2.6 kg (5 3/4 lb.) including battery module
* The accuracy stated assumes forward and reverse measurements.
Inductive mode or undirectional mode will introduce an undefined error if an external EMF is present.
