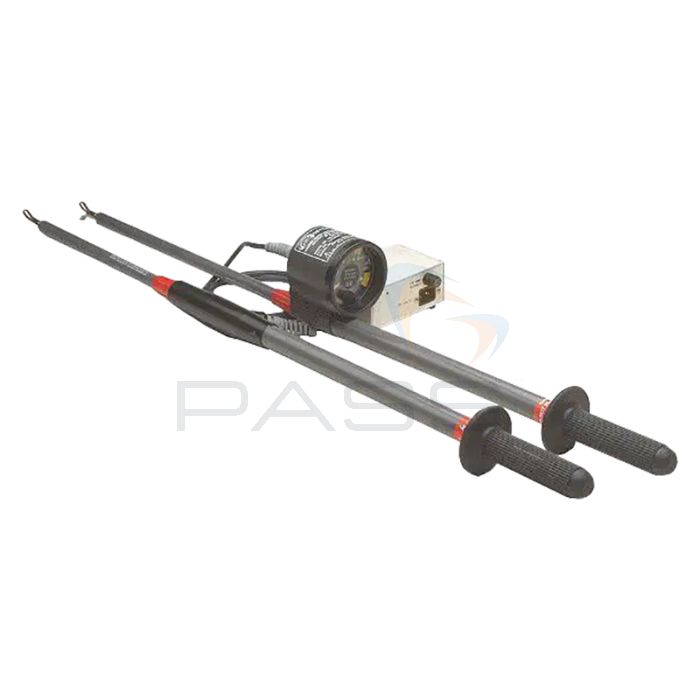

Megger Detex Voltage Detector
Description

The Megger DETEX voltage detectors are suitable for use on any grounded electrical system, they are also piezo verifiers. Piezo verifiers are an essential safety tool used to confirm the correct operation of voltage detectors that do not have a self-testing capability. When the verifier handle is depressed at the rate of 3 strokes per second, a piezo crystal generates approximately 1800 volts. This voltage, when applied to the tip of the detector, tests the integrity of the current path and ensures the proper operation of the indicators.

The voltage detectors come in seven models that cover everything from distribution class to transmission line voltages up to 550 kV. These models include six electronic 'beeper' models that provide an audible and visual indication of the presence of phase-to-ground AC voltages, per ANSI C84.1-1982 standards. They also include one model (514440-2) that uses an LED indicator designed for indoor testing grounded AC systems as the bright LED provides easy visibility in poor lighting conditions. All voltage testers have their carrying case included.

Key Features

  • Seven models available
  • Continuous monitoring
  • IEC conformance
  • Carry case included
  • All DETEX models provide continuous monitoring with no on/off switch

Product Range

  • Megger 514242-1 67-235 kV Electronic DETEX Voltage Detector
  • Megger 514242-2 200-550 kV Electronic DETEX Voltage Detector
  • Megger 514360-5 4-14.5 kV Electronic DETEX Voltage Detector
  • Megger 514360-6 11.7-36.2 kV Electronic DETEX Voltage Detector
  • Megger 514360-7 24.3-72.5 kV Electronic DETEX Voltage Detector
  • Megger 514360-8 2.3-7.2 kV Electronic DETEX Voltage Detector with 51" (1295mm) Telescopic Pole
  • Megger 514440-2 3.6-36.5 kV Neon DETEX Voltage Detector with 48" (1219mm) Telescopic Pole
Downloads

Datasheets

Megger DETEX Datasheet Datasheets
Tech Specs
SKU Model Operating Voltage Range Mechanical Style Min. Voltage (Phase to Ground) Nominal System Voltage Range, 50/60 Hz (phase to phase) Weight
514242-1 Electronic, with red LED and audible indication 67 to 235 kV Spline fitted for attachment to a universal hot line pole (not included) 38 kV 69 to 230 kV 1.5 lb (0.67 kg)
514242-2 200 to 550 kV 115 kV 230 to 500 kV
514360-5 4 to 14.5 kV 2.3 kV 4.16 to 13.8 kV 1.1 lb (0.5 kg)
514360-6 11.7 to 36.2 kV 6.8 kV 12 to 34.5 kV
514360-7 24.3 to 72.5 kV 14 kV 24.94 to 69 kV
514360-8 2.3 to 7.2 kV 48-in. telescopic pole 1.2 kV 2.4 to 6.9 kV 2.2 lb (1 kg)
514440-2 White LED 3.6 to 36.5 kV 2.1 kV 4.16 to 34.5 kV 2.1 lb (0.95 kg)
