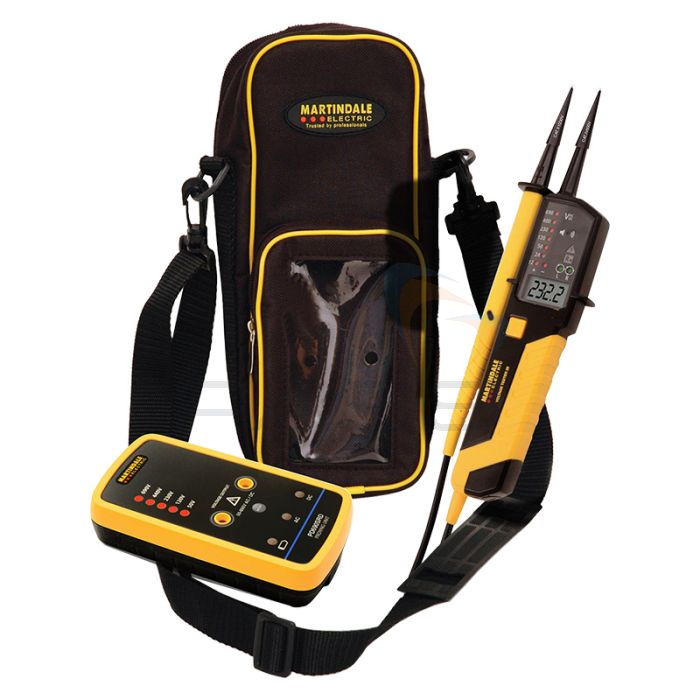

Martindale VT28PD-S Voltage Tester & Proving Unit Kit
The Martindale VT28PD-S Voltage Tester & Proving Unit Kit is a comprehensive solution for safe isolation procedures.
The VT28 is a rugged, compact two-pole tester that measures AC/DC voltages from 12V to 690V. It features bright LED indicators for voltage levels and includes a continuity test function with a buzzer. Additionally, it can perform single-pole phase tests and phase rotation measurements.
The PD690SRD Proving Unit is part of the kit and provides stepped outputs at 50V, 120V, 230V, 440V, and 690V. It ensures the proper functioning of the VT28 and meets GS38 compliance requirements.
The kit fully meets the requirements of GS38 and proving dead procedures and comes in a heavy denier carry case for convenient storage and protection when not in use.
Martindale VT28 Two-Pole Voltage Tester Description
Capable of measuring AC/DC voltages between 12V and 690V, the Martindale VT28 Two-Pole Voltage Tester is a compact, two-pole voltage detector with a 7-LED scale and an LCD for indicating exact values. In addition to this, the Martindale VT28 Two-Pole Voltage Tester offers Phase Rotation, Single-Pole Voltage Detection, and Continuity (with LED and buzzer) functions.
The Martindale VT28 Two-Pole Voltage Tester is also equipped with an Auto Power Off function for conserving battery life. Other practical features include a built-in white LED torch close to the probe tips ensuring the Martindale VT28 Two-Pole Voltage Tester can be used in dark/low-light environments.
Finally, the Martindale VT28 Two-Pole Voltage Tester meets the latest safety standards. It features removable GS38-compliant probe caps and a 1.2m double-insulated cable with a contrasting inner and outer core designed to provide a clear indication of any damage.
The Martindale VT28 Two-Pole Voltage Tester is a safety-optimised, simple-to-use voltage indicator ideal for proving circuits are dead before commencing work.
Martindale VT28 Two-Pole Voltage Tester Key Features
- Two-pole voltage indicator
- Measure AC/DC voltages between 12V and 690V
- 7-LED voltage scale
- LCD
- Indicates voltage even if the battery is dead
- Phase Rotation
- Single-Pole Voltage Detection
- Continuity with LED indication and buzzer
- Auto Power Off function
- Built-in white LED torch
- Audible continuity & phase rotation test
- Safety CAT III 1000V / CAT IV 600V
- Meets the latest safety standards
- BS EN61243-3 compliant
- Removable GS38 probe caps
- 1.2m double-insulated cable with a contrasting inner and outer core
- A safety-optimised, simple-to-use voltage indicator ideal for proving circuits are dead
Martindale PD690SRD Proving Unit Description
The Martindale PD690SRD Proving Unit can be used to prove the Martindale VT28 Two-Pole Voltage Tester is working correctly before and after use, as required by safe isolation procedures. This compact proving unit can produce up to 690V AC / DC voltages making it suitable for checking low- and high-impedance voltage indicators, test lamps, and two-pole testers.
Practical features include a tough over-moulded low-profile design, a long battery life, a low battery indicator, and an Auto Power Off function.
The Martindale PD690SRD Proving Unit is an ergonomic, easy-to-use proving device.
Martindale PD690SRD Proving Unit Key Features
- Suitable for use with voltage indicators up to 690V
- Switchable AC / DC output mode via push button
- Stepped voltage output matched to two-pole tester thresholds
- Compatible with S-series magnetic hanger
- Ideal for proving indicators and measurement devices up to 690V AC or DC in domestic and commercial applications
What’s Included?
- 1x Martindale VT28 Two-Pole Voltage Tester
- 1x Martindale PD690SRD Proving Unit
- 1x Martindale TC70 Carry Case
- 2x Probe Tip Covers
- 2x 1.5V AAA Batteries
- 6x 1.5V AA Alkaline Batteries
- Instruction Manual
- Neck Strap
Martindale VT28PD-S Voltage Tester & Proving Unit Kit Technical Specifications
| Function | VT28 | PD690SRD |
| Electrical | ||
| Maximum working voltage | 690V DC & AC rms | |
| Nominal voltage threshold indications | 12, 24, 50, 120, 230, 690V AC/DC | |
| Nominal voltage threshold tolerance | Conforms to BS EN 61243-3:2014 | |
| Internal impedance at ELV AC | 260kΩ | |
| Polarity indication | from 12V DC/AC rms | |
| Range detection | automatic | |
| Response time | <1s to 100% of each nominal voltage | |
| Frequency range | DC, 16 to 400Hz | |
| Test current (In) | <3.5mA | |
| Duty ratio | 30s ON (operated) / 240s OFF (recovery) | |
| Overvoltage protection | 690V DC or AC rms | |
| Output voltage | 690V, 440V, 230V, 120V or 50V nominal | |
| Output frequency | DC or 50Hz nominal | |
| Digital Voltmeter | ||
| Voltage range | 10V to 690V (DC, 16 to 400Hz) |
|
| Resolution | 0.1V | |
| Accuracy | ± (3% + 5 digits) | |
| Single Pole Phase Test | ||
| Voltage range | 100 to 690V AC rms | |
| Frequency range | 50 to 60Hz | |
| Phase Rotation Test | ||
| Voltage range | 120 to 400V AC rms (phase to earth) | |
| Frequency range | 50 to 60Hz | |
| Continuity | ||
| Resistance range | 0 to 500kΩ | |
| Test current | 3µA | |
| Overvoltage protection | 690V DC or AC rms | |
| Environmental | ||
| Temperature (Operating) | -10°C to 55°C | -10°C to 40°C at max |
| Temperature (Storage) | -20°C to 70°C, Non condensing | |
| Humidity (Operating & Storage) | ≤ 85% R.H. | max. 70% R.H. |
| Altitude | up to 2000m | up to 2000m |
| Pollution degree | 2 | 2 |
| General | ||
| Power | 2 x 1.5V, AAA alkaline batteries (IEC LR03, NEDA 24A) | 6 x 1.5V, AA alkaline batteries (IEC LR6, NEDA 15A) |
| Battery consumption | 80mA max. | |
| Dimensions | 285 x 72 x 41 mm | 150 x 80 x 35mm |
| Weight | 250g | 350g approx. with batteries |
| Safety | ||
| Conforms to | BS EN 61243-3, BS EN 61010-1 CAT IV 600V, CAT III 1000V |
|
| Class II, double insulation | ||
| IP rating | IP64 to BS EN 60529 | |
| GS38 compliance (with probe covers fitted) | ||
| EMC | ||
| Conforms to | BS EN 31326-1 | |
