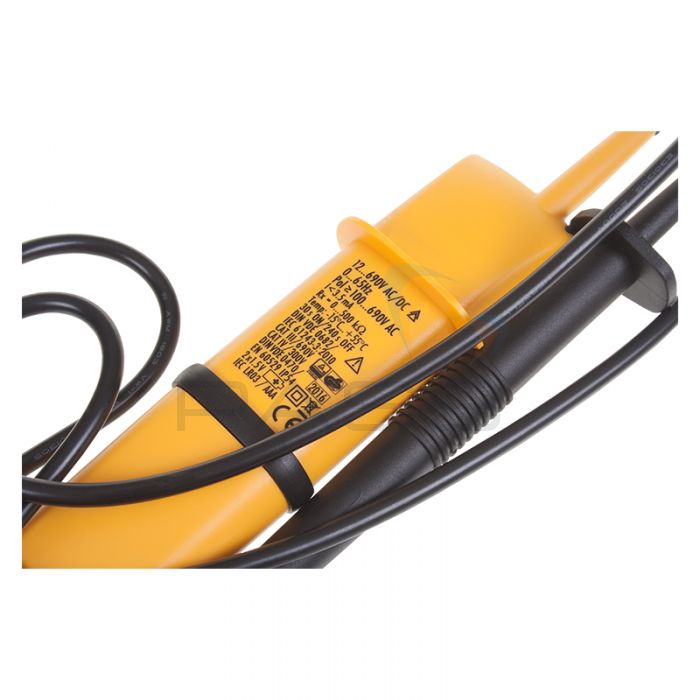

Martindale VT12 Voltage & Continuity Tester
The Martindale VT12 is a dual-pole voltage and continuity tester suitable for use in detecting AC/DC voltage up to 690V.
Supplied as standard with GS38 compliant caps, the VT12 uses bright LED indicators to show the level of detected voltage in accordance with all of the latest safety standards. The tester is also especially rugged, making it suitable for both industrial and commercial use.
The VT12 also includes an intregrated continuity testing function with optical/acoustic indication up to 500kΩ.
Martindale VT12 Voltage Indicator Key Features
- Two-pole voltage tester
- Designed for use in universal applications
- Constructed in accordance with standards and regulations
- LED indication of voltages
- Continuity testing procedures with buzzer
- Polarity indication
- Simple to use
- Ergonomic design
Technical Specifications
| Voltage Range | 12-690V AC/DC |
| LED Resolution | +/-12, 24, 50, 120, 230, 400, 690V |
| Tolerance | acc. EN 61243 |
| AC/DC Voltage Detection | Automatically |
| Range Detection | Automatically |
| Response Time | <0.1 s |
| Frequency Range | DC, 0 - 65Hz |
| Internal Load | Approx. 2,1 W/690V |
| Test Current | <3.5mA |
| Duration Time | DT=30s |
| Recovery Time | 4min |
| Auto Power-On | >12V AC/DC |
| Frequency Range | 45 - 65Hz |
| Continuity Test | Optical/acoustical |
| Resistance Range | 0-200 kΩ |
| Test Current | 3 μA |
| Overvoltage Protection | 690V AC/DC |
| Power Supply | 2 x 1,5 V IEC LR03/AAA |
| Power Consumption | max. 30 mA/approx. 250 mW |
| Temperature Range | -I0°C - 55°C |
| Humidity | Max 85% rel. H. |
| Height Above Sea Level | Up to 2000 m |
| Measurement CAT | CAT III/690V |
| Pollution Degree | 2 |
| Protection Degree | IP54 |
| Safety Accuracy | EN 61243-3, EN 61010, IEC 61010 |
| Weight | approx. 130g |
| Dimensions | approx. 205 x67 x27mm |
