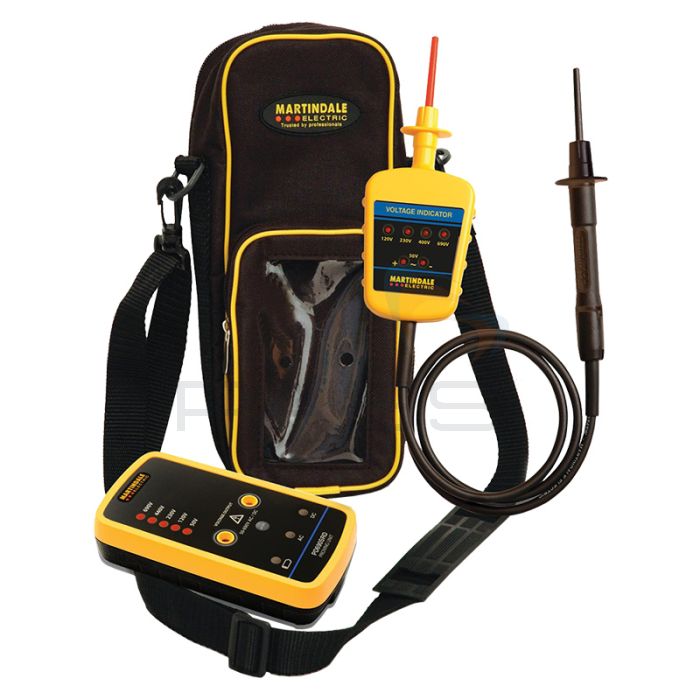

Martindale VIPD150-S Voltage Indicator & Proving Unit Kit
The Martindale VIPD150-S Voltage Indicator & Proving Unit Kit is a safe isolation kit containing Martindale’s VI15000 Voltage Indicator, PD690SRD Proving Unit, and TC71 Combination Carry Case. It is an essential safety aid for electricians, and service and maintenance technicians working in 1000V CAT IV environments.
The industry-leading 690V Martindale PD690SRD Proving Unit can be used to verify the functionality of the Martindale VI15000 Voltage Indicator. It is suitable for testing high- and low-impedance meters, and may be used through the TC71 Carry Case for maximum convenience. The Martindale VI1500 Voltage Indicator determines the presence of AC/DC voltages between 50 and 1000V. It features LEDs for indicating the voltage range and polarity. Finally, the Martindale VI15000 Voltage Indicator is compliant with GS38 and BS EN 61243-3 and features a heavy-duty, double-insulated cable with contrasting inner lining for indicating damage.
The Martindale VIPD150-S Voltage Indicator & Proving Unit Kit is a reliable, practical, and durable safe isolation set.
Martindale VIPD150-S Voltage Indicator & Proving Unit Kit Key Features
- Safe isolation kit containing Martindale’s VI15000 Voltage Indicator, PD690SRD Proving Unit, and TC71 Combination Carry Case
- Essential safety aid for electricians and service and maintenance technicians working in CAT IV 1000V environments
- Industry-leading 690V PD690SRD Proving Unit suitable for testing low- and high-impedance testers
- Use the PD690SRD Proving Unit through the TC71 Carry Case
- VI15000 Voltage Indicator range: 50 to 1000V AC/DC
- LEDs indicate the voltage range and polarity
- Compliant with GS38 and BS EN 61243-3
- Heavy-duty, double-insulated cable with a contrasting inner lining to indicate damage
- Reliable, practical, and durable safe isolation set
What’s Included?
- Martindale VI15000 Voltage Indicator
- Martindale PD690SRD Proving Unit
- Martindale TC71 Combination Carry Case
Martindale VI15000 Voltage Indicator Technical Specifications
| Electrical | |
| Nominal voltage range | 50 - 1000V DC/AC rms |
| Nominal voltage threshold indications | ± 50, 120, 230, 400, 690 V DC/AC rms |
| Voltage threshold tolerance | Conforms to BS EN 61243-3 |
| Polarity & voltage indication | 50V DC/AC rms |
| AC/DC voltage detection | automatic |
| Range detection | automatic |
| Response time | <0.1s |
| Frequency range | DC, 1 - 400Hz |
| Test current | < 3.5mA at 1000V DC/AC rms |
| Duty ratio | 30s ON (operated) / 240s OFF (recovery) |
| Environmental | |
| Temperature & Humidity (Operating & Storage) | -10°C to 55°C ≤ 85% R.H. |
| Altitude | up to 2000m |
| General | |
| Power | From circuit under test |
| Dimensions | 205(L) x 67(W) x 27(D) mm |
| Weight | 130g approx. |
| Safety | |
| Conforms to | BS EN 61243-3 CAT IV 1000 V |
| Class II, Double Insulation | |
| Pollution Degree 2 | |
| EMC | Conforms to BS EN 61326-1 |
Martindale PD690SRD Proving Unit
| Output voltage | 690V, 440V, 230V, 120V or 50V nominal |
| Output frequency | DC or 50Hz nominal |
| Environmental | |
| Operating temperature | -10°C to 40°C at max. 70% R.H. |
| Altitude | up to 2000m |
| Pollution degree | 2 |
| General | |
| Internal batteries | 6 x 1.5V, AA alkaline batteries (IEC LR6, NEDA 15A |
| Dimensions | 150 x 80 x 35mm |
| Weight packed | 350g approx. with batteries |
| Includes | 6 x 1.5V AA alkaline batteries, instructions |
