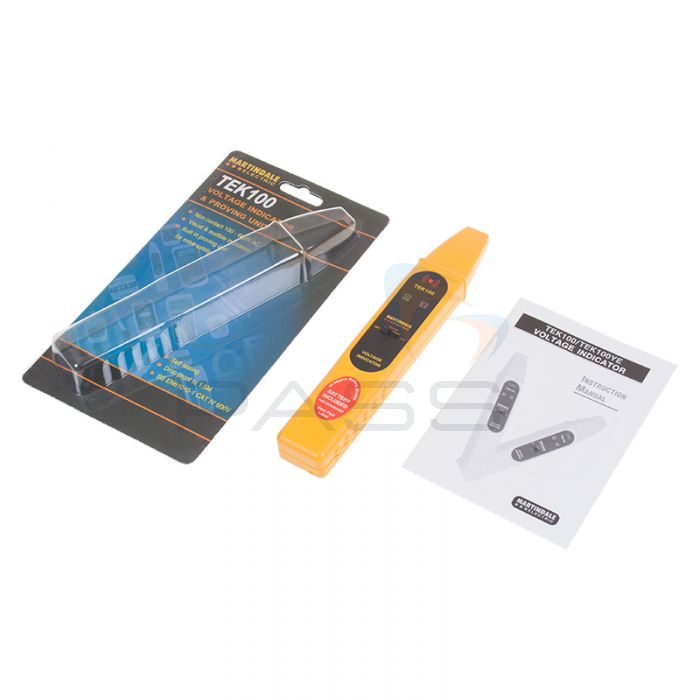

Martindale TEK100 Non-Contact Voltage Indicator
- No need for contact
- Detect up to 600V of AC voltage
- Can be held and operated in one hand
SKU
MARTEK100
MPN
MARTEK100
Simply hold the TEK100 near a voltage source from 100-600V AC and it'll let you know if voltage is present!
If voltage is detected, the TEK100 will use a combination of an audible tone and a red visual indicator to alert the user. A built-in self testing function allows the meter to remain accurate throughout its lifetime and will check the tip of the tester at 50Hz plus the condition of the battery and LED indicator.
The self-testing function eliminates the need for a separate proving unit.
Martindale TEK100 Non-Contact Voltage Indicator Key Features
- Pocket-sized unit
- Voltage detection without making contact
- 100-600V AC range
- LED light indicators
- Audible indicator
- Self-test function means there's no need to use proving units
£39.00
£46.80 inc vat
Stock Due:
Typically 1-6 Days
Technical Information
Specification
Technical Specifications
| Voltage Range | 100-600V AC |
| Frequency Range | 50Hz to 50kHz |
| Sensitivity |
3mm for 100V, 50Hz 23mm for 240V, 50Hz |
| Visual Indicator | Red LED |
| Audible Indicator | 2kHz Tone |
| Self-Test | Integrated Unit |
| Operating Temperature | 0 to 50°C |
| Overvoltage | CAT III 1000V, CAT IV 600V |
| Supply | 9V Alkaline Battery, MN1604/PP3 or Equivalent |
| Housing | Flame Retardant ABS |
| Dimensions | 202 x 32 x 22mm |
| Weight | Approx. 140g (excl. battery) |
Document Downloads
Additional Information
SKU
MARTEK100
Manufacturer Part Code
MARTEK100
