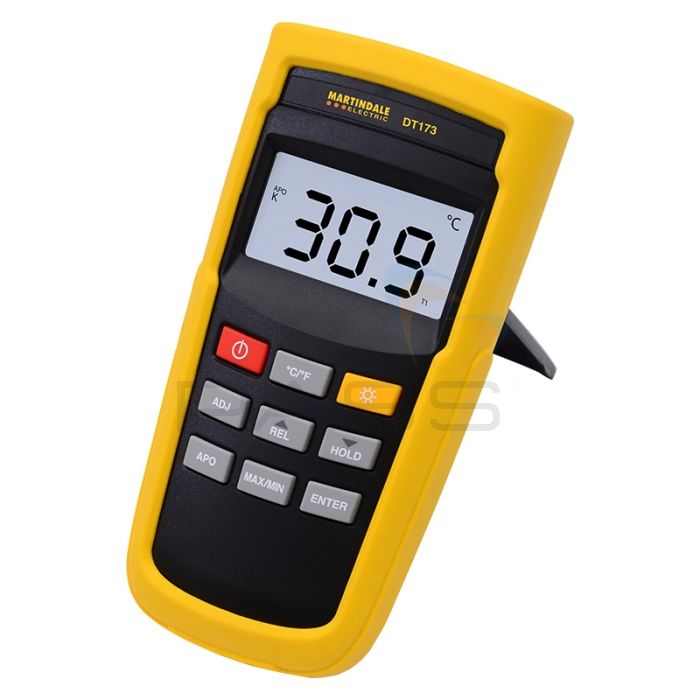

Martindale DT173 Single Input K-Type Digital Thermometer
- Temperature range: -200°C to +1372°C
- Selectable measurement units (°C or °F) and MIN/MAX/AVG functions
- Supplied with a type-K thermocouple bead probe and features a tough casing with an integrated fold-away stand
SKU
MARDT173
MPN
MARDT173
The Martindale DT173 Single Input K-Type Digital Thermometer is supplied with a type-K thermocouple bead probe and can be used to measure temperatures between -200°C and +1372°C.
This digital thermometer is also compatible with a number of other type-K Martindale probes (NOT included) such as:
- Air probes
- Penetration probes
- Clamp probes
- Surface probes
The Martindale DT173 Single Input K-Type Digital Thermometer’s extensive compatibility makes it suitable for a variety of applications.
Temperature readings can be taken in either °C or °F, allowing the user to tailor the Martindale DT173 Single Input K-Type Digital Thermometer to his/her preferences. He/she can also adjust the offset in order to improve the thermocouple’s performance over the required temperature range.
In addition to adjustable offsets and selectable measurement units, the Martindale DT173 Single Input K-Type Digital Thermometer also includes MIN, MAX and AVG measurement functions optimised for determining the minimum, maximum and average readings (respectively) detected over a prolonged testing period. As these functions are optimised for use during long measurement periods, when they are engaged the Auto Power Off function is deactivated.
Measurements are indicated via the Martindale DT173 Single Input K-Type Digital Thermometer’s backlit display with large digits. This tester is also equipped with an integrated fold-away stand, allowing the user to adjust the viewing angle as necessary.
Finally, this compact digital thermometer is equipped with a tough casing that, along with its backlit display and fold-away stand, expands its scope-for-use as it ensures that the Martindale DT173 Single Input K-Type Digital Thermometer is suitable for use in a variety of rugged environments.
The Martindale DT173 Single Input K-Type Digital Thermometer is an ergonomically designed, adaptable and easy-to-use thermometer.
Martindale DT173 Single Input K-Type Digital Thermometer Key Features
- Supplied with a type-K thermocouple bead probe
- Can measure temperatures between -200°C and +1372°C
- Compatible with Martindale’s K-type air, penetration, clamp and surface probes
- Extensive compatibility makes it suitable for a variety of applications
- Selectable °C or °F measurement units
- Adjustable offset for optimising the thermocouple’s performance over the required temperature range
- MIN/ MAX/ AVG measurement functions
- MIN/MAX/AVG functions are optimised for prolonged measurement periods and so disengage the Auto Power Off function
- Backlit display with large digits
- Integrated fold-away stand for adjusting the viewing angle
- Tough casing
- Compact design
- Suitable for use in a variety of challenging environments
- Ergonomically designed, adaptable and easy-to-use thermometer
What’s Included?
- Martindale DT173 Single Input K-Type Digital Thermometer
- Type-K Thermocouple Bead Probe
- 4x 1.5V AAA Alkaline Batteries
- Instructions
£72.00
£86.40 inc vat
Stock Due:
Typically 1-6 Days
Technical Information
Specification
Martindale DT173 Single Input K-Type Digital Thermometer Technical Specifications
| Electrical | |
| All specified accuracies are at 23°C ± 5°C, <75% RH for 1 year, not including thermocouple error. | |
| Temperature coefficient | 0.1 x (applicable accuracy) per °C. (0°C to 18°C, 28°C to 50°C) |
| Temperature scale | Celsius or Fahrenheit, user-selectable |
| Thermocouple type | K |
| Measurement range | -200°C to 1372°C. (-328°F to 1999°F) |
| Note | Measurement range will be limited by the range of the thermocouple probe used. |
| Resolution | 0.1° to 199.9°C/°F, 1° t 200°C/°F |
| Temperature Accuracy | |
| -200°C to -60°C | ± (0.1% of rdg + 2°C) |
| -60°C to 1372°C | ± (0.1% of rdg + 1°C) |
| -328°F to -76°F | ± (0.1% of rdg + 4°F) |
| -76°F to 1999°F | ± (0.1% of rdg + 2°F) |
| Input protection | 24V DC or AC rms maximum input voltage on any combination of input pins. |
| Input connector | Accepts standard miniature thermocouple connectors (flat blades spaced 7.9mm. centre to centre). |
| Supplied thermocouple probe | 4-foot Type K thermocouple bead probe (Teflon tape insulated). |
| Maximum insulation temperature | 260°C (500°F). |
| Probe accuracy | ± 2.2°C or ± 0.75% of reading (whichever is greater) |
| General | |
| Display | 3½ digit liquid crystal display (LCD) wita h maximum reading of 1999 |
| Measurement rate | 2.5 times/second |
| Polarity | Automatic, positive implied, ‘-‘ for negative polarity indication |
| Overrange | (OL) is displayed |
| Power | 4 x 1.5V, AAA alkaline batteries (IEC LR03, NEDA 24A) |
| Battery life | 200 hours typical with alkaline batteries |
| Low battery indication | Low battery symbol is displayed |
| Auto power off | After 30 minutes |
| Dimensions | 160 mm (H) x 83 mm (W) x 38 mm (D). |
| Weight | Approx. 240g, including batteries |
| Includes | Type K bead thermocouple (x2 for DT175), 4 x 1.5V AAA alkaline batteries and instructions |
| Environmental | |
| Temperature & Humidity | (Operating): 0°C to 50°C, <70% R.H. |
| (Storage): -20°C to 60°C, 0 to 80% R.H., batteries removed | |
| Altitude | up to 2000m |
| Pollution degree | 2 |
| Safety | Conforms to BS EN 61010-1 |
| Class II, double insulation | |
| EMC | Conforms to BS EN 61326-1 |
