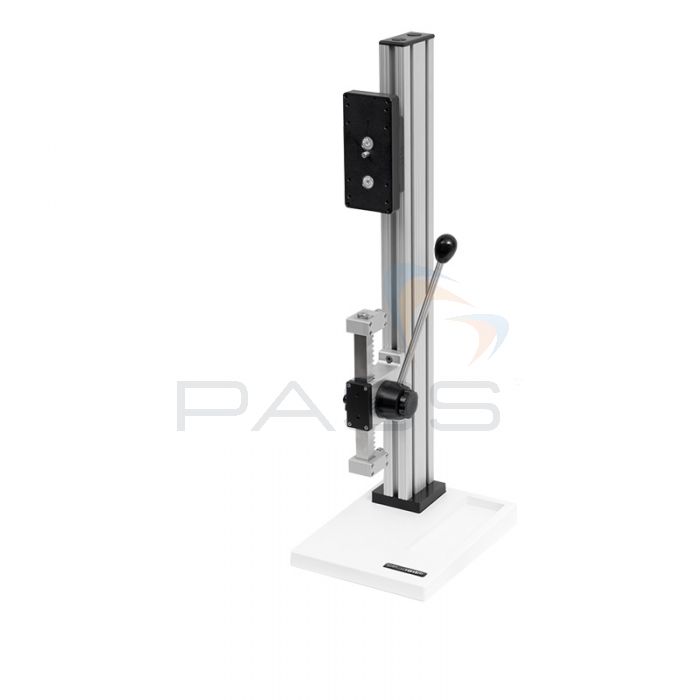

Mark-10 TSA750 Test Stand, Lever-Operated, 750 lbF / 3.75 kN, Vertical

The Mark-10 TSA750 is a perfect solution for quick-action pull testing and compression testing of up to 750lbF (3.75kN) of tensile or compressive force. Made of rugged, machined aluminium components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments.

The vertical test stand includes adjustable travel stops and a frictional low-force brake.

Key Features

• Compatible with all Mark-10 force gauges, accessories, and grips
• Loading lever can be positioned in 30° increments for ease of operation
• Threaded holes for bench mounting
• Adjustable travel stops
• Precision ground rack and pinion mechanism
• Adjustable wear plates for smooth, precise motion
• Optional digital travel display
• Adjustable friction brake modulates the effort required to turn the lever
• Competitor force gauge mounting kits are available

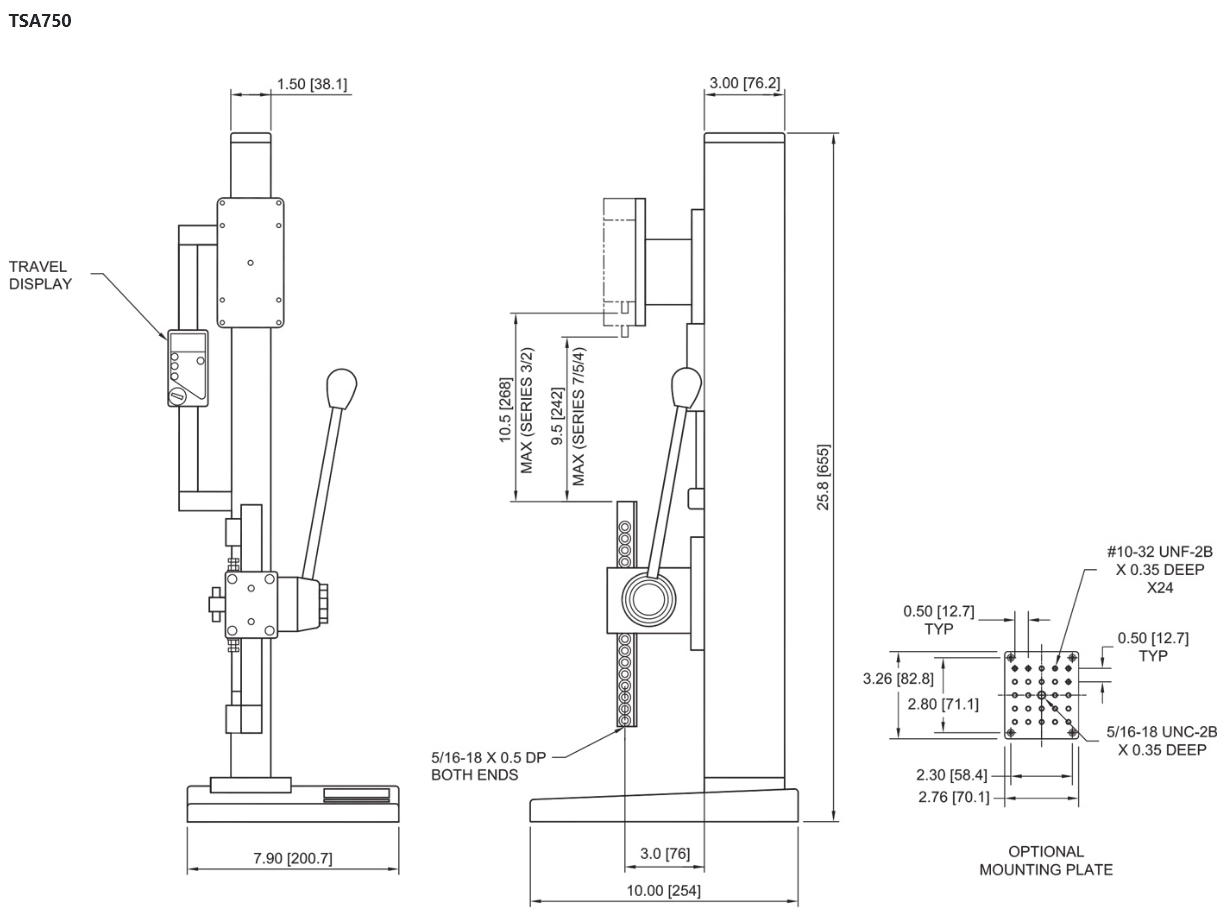

• Maximum force: 750 lbF [3.75 kN]
• Maximum travel, with stops: 3.75" [95 mm]
• Maximum travel, without stops: 6" [150 mm]
• Travel rate: 3" [76.2 mm]/lever revolution
• Weight TSA750: 16 lb [7.3 kg]

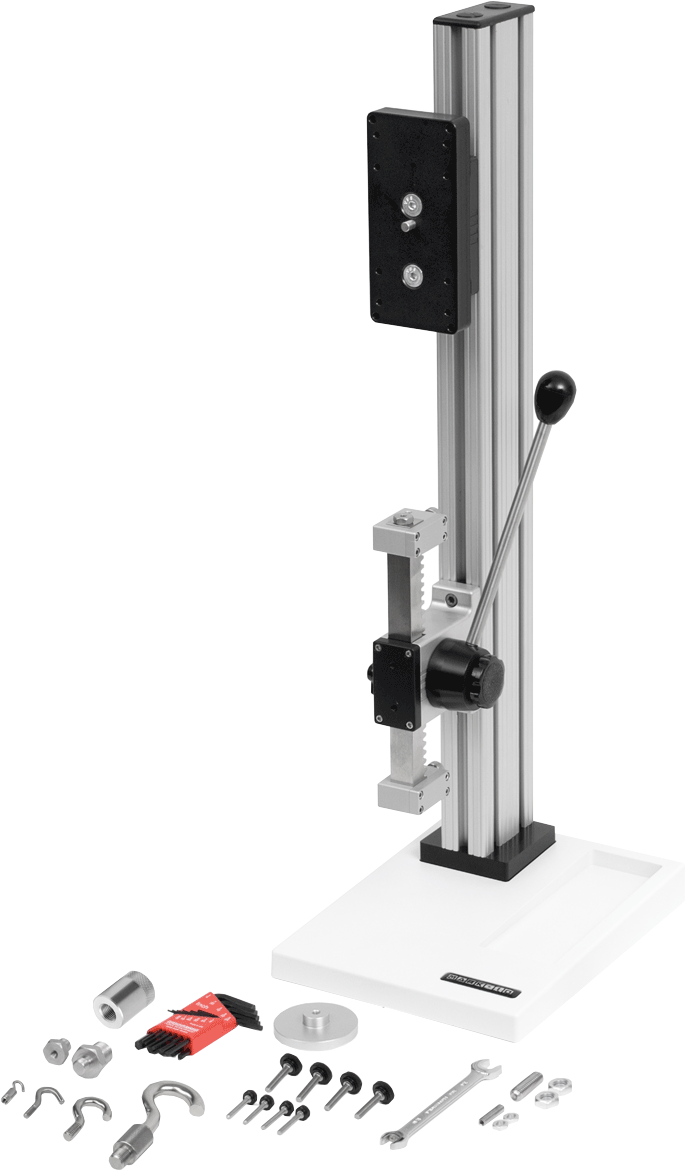

What's Included?

• (1) TSA750 test stand
• (1) G1009 compression plate, 2” dia.
• (1) G1028 small hook
• (1) G1030 thread adapter, 5/16-18M to #10-32F
• (1) G1035 large hook
• (1) G1038 medium hook
• (1) G1041 thread adapter, 5/16-18M to #1/2-20M
• (1) G1042 extra large hook
• (1) G1091 thread coupler, 1/2-20F, 1/2-20F
• (1) 5/16-18 Stud with jam nuts
• (1) #10-32 stud with jam nuts
• (1) Wrench 5/16-3/8
• (1) Base
• (4) Thumb screw for force gauges with 0.12 - 500 lbF capacities
• (4) Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
• (1) Allen wrench set
