    Mark-10 PTA Plug & Test, User-Configurable Adapter with Software

    Mark-10 PTA Plug & Test, User-Configurable Adapter with Software
    All Mark-10 Products
    • Program the adapter via USB or RS-232 through the indicator
    • Screw terminal block allows for easy connection of sensor wires
    • Compatible with strain gage-based load cells, force sensors, and torque sensors
    SKU
    PTA
    MPN
    PTA

    Read More

    View All Force Accessories

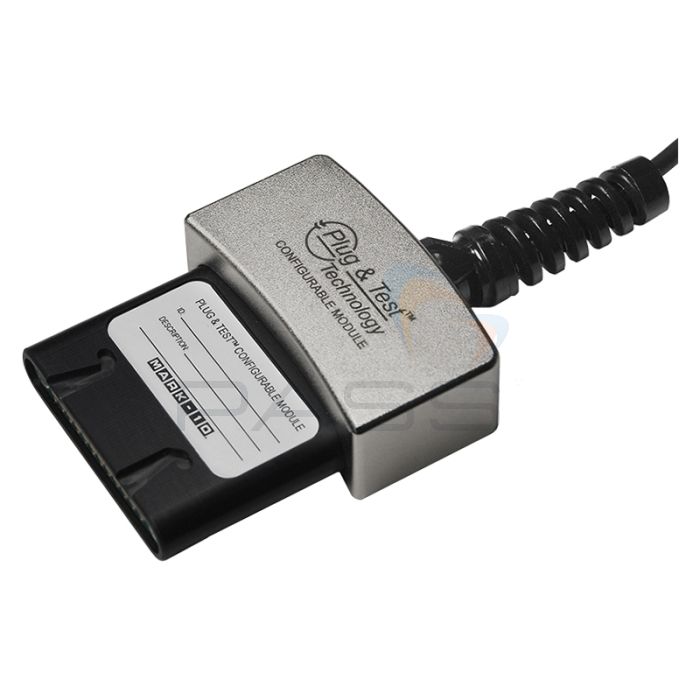

    Connect common strain gauge-based load cells, force sensors, and torque sensors to Models M7I, M5I, and M3I indicators and Series F test frames with the user-configurable adapter.

    Sensor capacity and resolution may be configured via an included software utility, which includes a library of common force capacities from 0.12 to 750,000 lbF (0.5 N to 4,000 kN), and torque capacities from 10 ozFin to 40,000 lbFft (7 Ncm to 57,000 Nm). An identification number may be configured, which is displayed upon indicator power-up or the indicator’s Information screen.

    Through Plug & Test® technology, all configuration and calibration information is saved within the adapters. This flexibility allows for interchangeability between multiple sensors with any Mark-10 indicator or Series F test frame.

    Key Features

    • Compatible with strain gage-based load cells, force sensors, and torque sensors
    • Screw terminal block allows for easy connection of sensor wires
    • Configure sensor capacity, resolution, and identification number via included software utility
    • Program the adapter via USB or RS-232 through the indicator
    • Supplied with strain relief, user-writeable identification label

    Sensor Requirements

    • Type: Full bridge
    • Resistance: 300 - 1000 ohms
    • Sensitivity: 1-3 mV/V
    • Mark-10 indicator with firmware version 1.0.9 or later




    Force Capacity x Resolution With Models M7I and M5I Indicators & IntelliMESUR Software
    lbF ozF kgF gF N kN mN T-US t-Sl
    0.25 x 0.0001 4 x 0.002 - 100 x 0.05 1 x 0.0005 - 1000 x 0.5 - -
    0.5 x 0.0002 8 x 0.005 - 250 x 0.1 2.5 x 0.001 - 2500 x 1 - -
    1 x 0.0005 16 x 0.01 - 500 x 0.2 5 x 0.002 - 5000 x 2 - -
    2 x 0.001 32 x 0.02 1 x 0.0005 1000 x 0.5 10 x 0.005 - - - -
    5 x 0.002 80 x 0.05 2.5 x 0.001 2500 x 1 25 x 0.01 - - - -
    10 x 0.005 160 x 0.1 5 x 0.002 5000 x 2 50 x 0.02 - - - -
    20 x 0.01 320 x 0.2 10 x 0.005 10000 x 5 100 x 0.05 - - - -
    25 x 0.01 400 x 0.2 10 x 0.005 10000 x 5 100 x 0.05 - - - -
    50 x 0.02 800 x 0.5 25 x 0.01 25000 x 10 250 x 0.1 - - - -
    75 x 0.05 1200 x 0.5 40 x 0.02 40000 x 20 400 x 0.2 - - - -
    100 x 0.05 1600 x 1 50 x 0.02 50000 x 20 500 x 0.2 - - - -
    150 x 0.1 2400 x 2 75 x 0.05 75000 x 50 750 x 0.5 - - - -
    200 x 0.1 3200 x 2 100 x 0.05 100000 x 50 1000 x 0.5 - - - -
    250 x 0.1 4000 x 2 100 x 0.05 - 1000 x 0.5 1 x 0.0005 - - -
    300 x 0.2 4800 x 5 150 x 0.1 - 1500 x 1 1.5 x 0.001 - - -
    500 x 0.2 8000 x 5 250 x 0.1 - 2500 x 1 2.5 x 0.001 - - -
    750 x 0.5 12000 x 10 400 x 0.2 - 4000 x 2 4 x 0.002 - - -
    1000 x 0.5 16000 x 10 500 x 0.2 - 5000 x 2 5 x 0.002 - - -
    1500 x 1 24000 x 20 750 x 0.5 - 7500 x 5 7.5 x 0.005 - - -
    2000 x 1 - 1000 x 0.5 - - 10 x 0.005 - 1 x 0.0005 1 x 0.0005
    2500 x 1 - 1000 x 0.5 - - 10 x 0.005 - 1 x 0.0005 1 x 0.0005
    3000 x 2 - 1500 x 1 - - 15 x 0.01 - 1.5 x 0.001 1.5 x 0.001
    5000 x 2 - 2500 x 1 - - 25 x 0.01 - 2.5 x 0.001 2.5 x 0.001
    7500 x 5 - 4000 x 2 - - 40 x 0.02 - 4 x 0.002 4 x 0.002
    10000 x 5 - 5000 x 2 - - 50 x 0.02 - 5 x 0.002 5 x 0.002
    15000 x 10 - 7500 x 5 - - 75 x 0.05 - 7.5 x 0.005 7.5 x 0.005
    20000 x 10 - 10000 x 5 - - 100 x 0.05 - 10 x 0.005 10 x 0.005
    25000 x 10 - 10000 x 5 - - 100 x 0.05 - 10 x 0.005 10 x 0.005
    30000 x 20 - 15000 x 10 - - 150 x 0.1 - 15 x 0.01 15 x 0.01
    50000 x 20 - 25000 x 10 - - 250 x 0.1 - 25 x 0.01 25 x 0.01
    75000 x 50 - 40000 x 20 - - 400 x 0.2 - 40 x 0.02 40 x 0.02
    100000 x 50 - 50000 x 20 - - 500 x 0.2 - 50 x 0.02 50 x 0.02
    150000 x 100 - 75000 x 50 - - 750 x 0.5 - 75 x 0.5 75 x 0.5
    200000 x100 - 100000 x 50 - - 1000 x 0.5 - 100 x 0.05 100 x 0.05
    250000 x 100 - 100000 x 50 - - 1000 x 0.5 - 100 x 0.5 100 x 0.5
    300000 x 200 - 150000 x 100 - - 1500 x 1 - 150 x 0.1 150 x 0.1
    500000 x 200 - 250000 x 100 - - 2500 x 1 - 250 x 0.1 250 x 0.1
    750000 x 500 - 400000 x 200 - - 4000 x 2 - 400 x 0.2 400 x 0.2

    Force Capacity x Resolution With Model M3I Indicator
    lbF kgF gF N kN
    0.12 x 0.0001 - 50 x 0.05 0.5 x 0.0005 -
    0.25 x 0.0002 - 100 x 0.1 1 x 0.001 -
    0.5 x 0.0005 - 250 x 0.2 2.5 x 0.002 -
    1 x 0.001 - 500 x 0.5 5 x 0.005 -
    2 x 0.002 1 x 0.001 - 10 x 0.01 -
    5 x 0.005 2.5 x 0.002 - 25 x 0.02 -
    10 x 0.01 5 x 0.005 - 50 x 0.05 -
    20 x 0.02 10 x 0.01 - 100 x 0.1 -
    25 x 0.02 10 x 0.01 - 100 x 0.1 -
    50 x 0.05 25 x 0.02 - 250 x 0.2 -
    75 x 0.1 40 x 0.05 - 400 x 0.5 -
    100 x 0.1 50 x 0.05 - 500 x 0.5 -
    150 x 0.2 75 x 0.1 - 750 x 1 -
    200 x 0.2 100 x 0.2 - 1000 x 2 -
    250 x 0.2 100 x 0.2 - 1000 x 2 -
    300 x 0.5 150 x 0.2 - 1500 x 2 -
    500 x 0.5 250 x 0.2 - 2500 x 2 -
    750 x 1 400 x 0.5 - 4000 x 5 -
    1000 x 1 500 x 0.5 - 5000 x 5 -
    1500 x 2 750 x 1 - 7500 x 10 -
    2000 x 2 1000 x 1 - - 10 x 0.01
    2500 x 2 1000 x 1 - - 10 x 0.01
    3000 x 5 1500 x 2 - - 15 x 0.02
    5000 x 5 2500 x 2 - - 25 x 0.02
    7500 x 10 4000 x 5 - - 40 x 0.05
    10000 x 10 5000 x 5 - - 50 x 0.05
    15000 x 20 7500 x 10 - - 75 x 0.1
    20000 x 20 10000 x 10 - - 100 x 0.1
    25000 x 20 10000 x 10 - - 100 x 0.1
    30000 x 50 15000 x 20 - - 150 x 0.2
    50000 x 50 25000 x 20 - - 250 x 0.2
    75000 x 100 40000 x 50 - - 400 x 0.5
    100000 x 100 50000 x 50 - - 500 x 0.5
    150000 x 200 75000 x 100 - - 750 x 1
    200000 x 200 100000 x 100 - - 1000 x 1
    250000 x 200 100000 x 100 - - 1000 x 1
    300000 x 500 150000 x 200 - - 1500 x 2
    500000 x 500 250000 x 200 - - 2500 x 2
    750000 x 1000 400000 x 500 - - 4000 x 5

    £302.50
    £363.00 inc vat
    Free Delivery*
    Important Notice
    This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
    302 Reward Points 60 Days Return
    Ask An Expert
    Price Match
    Technical Information
    Specification
    Torque Capacity x Resolution With Models M7I and M5I Indicators
    lbFin ozFin lbFft Ncm Nm Nmm KgFmm gFmm kgFm
    - 10 x 0.005 - 7 x 0.005 - 70 x 0.05 7 x 0.005 700 x 0.5 -
    - 20 x 0.01 - 14 x 0.01 - 140 x 0.1 14 x 0.01 1400 x 1 -
    - 50 x 0.02 - 35 x 0.02 - 350 x 0.2 35 x 0.02 3500 x 2 -
    - 100 x 0.05 - 70 x 0.05 - 700 x 0.5 70 x 0.05 7000 x 5 -
    - 1000 x 0.5 - 700 x 0.5 - 7000 x 5 700 x 0.5 70000 x 50 -
    12 x 0.005 192 x 0.1 1 x 0.0005 135 x 0.1 1.35 x 0.001 - - - -
    20 x 0.01 320 x 0.2 1.5 x 0.001 220 x 0.1 2.2 x 0.001 - - - -
    25 x 0.01 400 x 0.2 2 x 0.001 290 x 0.2 2.9 x 0.002 - - - -
    50 x 0.02 800 x 0.5 4 x 0.002 570 x 0.5 5.7 x 0.005 - - - -
    100 x 0.05 1600 x 1 8 x 0.005 1150 x 0.5 11.5 x 0.005 - - - -
    150 x 0.1 - 12.5 x 0.01 1700 x 1 17 x 0.01 - 1700 x 1 - -
    200 x 0.1 - 16 x 0.01 2200 x 1 22 x 0.01 - 2200 x 1 - -
    250 x 0.2 - 20 x 0.02 2800 x 2 28 x 0.02 - 2800 x 2 - -
    400 x 0.2 - 32 x 0.02 4500 x 2 45 x 0.02 - 4500 x 2 - -
    500 x 0.2 - 40 x 0.02 5800 x 2 57 x 0.02 - 5800 x 2 - -
    600 x 0.5 - 50 x 0.05 6900 x 5 69 x 0.05 - 6900 x 5 - -
    1000 x 0.5 - 80 x 0.05 11500 x 5 115 x 0.05 - 11500 x 5 - -
    1500 x 1 - 125 x 0.1 17000 x 10 170 x 0.1 - 17000 x 10 - -
    2000 x 1 - 150 x 0.1 22000 x 10 220 x 0.1 - 22000 x 10 - -
    2500 x 1 - 200 x 0.1 29000 x 20 290 x 0.2 - 29000 x 20 - -
    5000 x 2 - 400 x 0.2 57000 x 20 570 x 0.2 - 58000 x 50 - -
    6000 x 5 - 500 x 0.5 69000 x 50 690 x 0.5 - 69000 x 50 - -
    10000 x 5 - 800 x 0.5 115000 x 50 1150 x 0.5 - - - 115 x 0.05
    15000 x 10 - 1250 x 1 170000 x 100 1700 x 1 - - - 170 x 0.1
    20000 x 10 - 2000 x 1 220000 x 100 2200 x 1 - - - 220 x 0.1
    50000 x 20 - 4000 x 2 570000 x 200 5700 x 2 - - - 580 x 0.5
    100000 x 50 - 8000 x 5 - 11500 x 5 - - - 1150 x 0.5
    150000 x 100 - 12500 x 10 - 17000 x 10 - - - 1700 x 1
    200000 x 100 - 15000 x 10 - 22000 x 10 - - - 2200 x 1
    500000 x 200 - 40000 x 20 - 57000 x 20 - - - 5800 x 5
    Torque Capacity x Resolution With Model M3I Indicator
    lbFin ozFin Ncm Nm kgFmm kgFm
    - 10 x 0.01 7 x 0.01 - 7 x 0.01 -
    - 20 x 0.02 14 x 0.02 - 14 x 0.02 -
    - 50 x 0.05 35 x 0.05 - 35 x 0.05 -
    - 100 x 0.1 70 x 0.1 - 70 x 0.1 -
    - 1000 x 1 700 x 1 - 700 x 1 -
    12 x 0.01 192 x 0.2 135 x 0.1 - - -
    20 x 0.02 320 x 0.5 220 x 0.2 - - -
    25 x 0.02 400 x 0.5 290 x 0.2 - - -
    50 x 0.05 800 x 1 570 x 0.5 - - -
    100 x 0.1 1600 x 2 1150 x 1 - - -
    150 x 0.2 - 1700 x 2 - 1700 x 2 -
    200 x 0.2 - 2200 x 2 - 2200 x 2 -
    250 x 0.2 - 2800 x 2 - 2800 x 2 -
    400 x 0.5 - 4500 x 5 - 4500 x 5 -
    500 x 0.5 - 5800 x 5 - 5800 x 5 -
    600 x 1 - 6900 x 10 - 6900 x 10 -
    1000 x 1 - 11500 x 10 - 11500 x 10 -
    1500 x 2 - 17000 x 20 - 17000 x 20 -
    2000 x 2 - 22000 x 20 - 22000 x 20 -
    2500 x 2 - 29000 x 20 - 29000 x 20 -
    5000 x 5 - 57000 x 50 - 58000 x 100 -
    6000 x 5 - 69000 x 50 - 69000 x 100 -
    10000 x 10 - 115000 x 100 - - 1150 x 0.1
    15000 x 20 - 170000 x 200 - - 1700 x 0.2
    20000 x 20 - 220000 x 200 - - 2200 x 0.2
    50000 x 50 - 570000 x 500 - - 5800 x 1
    100000 x 100 - - 11500 x 10 - 11500 x 1
    150000 x 200 - - 17000 x 20 - 17000 x 2
    200000 x 200 - - 22000 x 50 - 22000 x 2
    500000 x 400 - - 57000 x 50 - 57000 x 10
    Additional Information
    SKU
    PTA
    Manufacturer Part Code
    PTA

    Customer Reviews

    International Enquiry

    Mark-10 PTA Plug & Test, User-Configurable Adapter with Software
    Description Technical Info Reviews
    £302.50
    £363.00 inc vat
    £302.50
    £363.00 inc vat
