Mark-10 ES05/10 Test Stand, Lever-Operated - Choice of 30lbF / 150N or 100lbF / 500N

These test stands are designed for compression testing and include a spring-loaded lever for repeatable testing. The lever can be repositioned along the length of the column, allowing the stands to be used for various-sized samples. Two stands are available, 30lbF/150N or 100lbF/500N maximum force (compression only).

Product Ranges

• MK10-ES05 Test Stand, Lever-Operated, 30lbF/150N
• MK10-ES10 Test Stand, Lever-Operated, 100lbF/500N

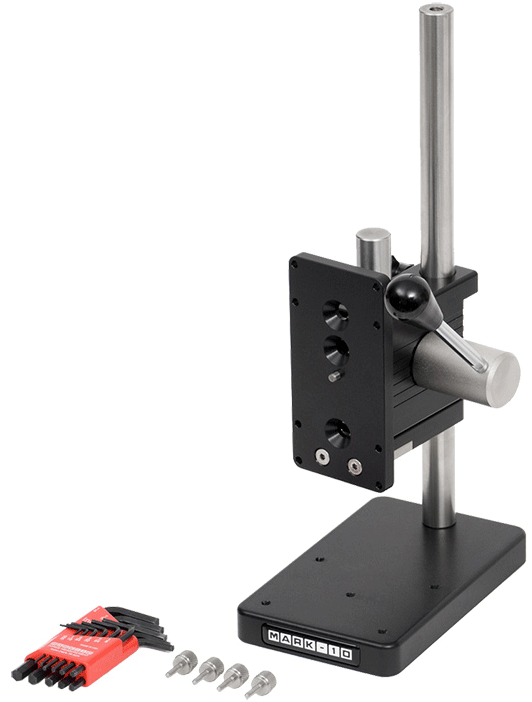

ES05 Model

The compact ES05 test stand is designed for compression testing 'up to 30 lbF (150 N). Typical applications include switch contact activation testing, small spring testing, peel testing, and more. A spring-loaded lever allows for repeatable testing with up to 1.5” (38 mm) displacement.

The ES05’s small footprint makes it particularly well-suited to crowded workbenches. In contrast, its low weight makes it very portable for field auditing or quick transportation to other testing areas. Use the ES05 with Mark-10 force gauges and grips to create a complete testing solution.

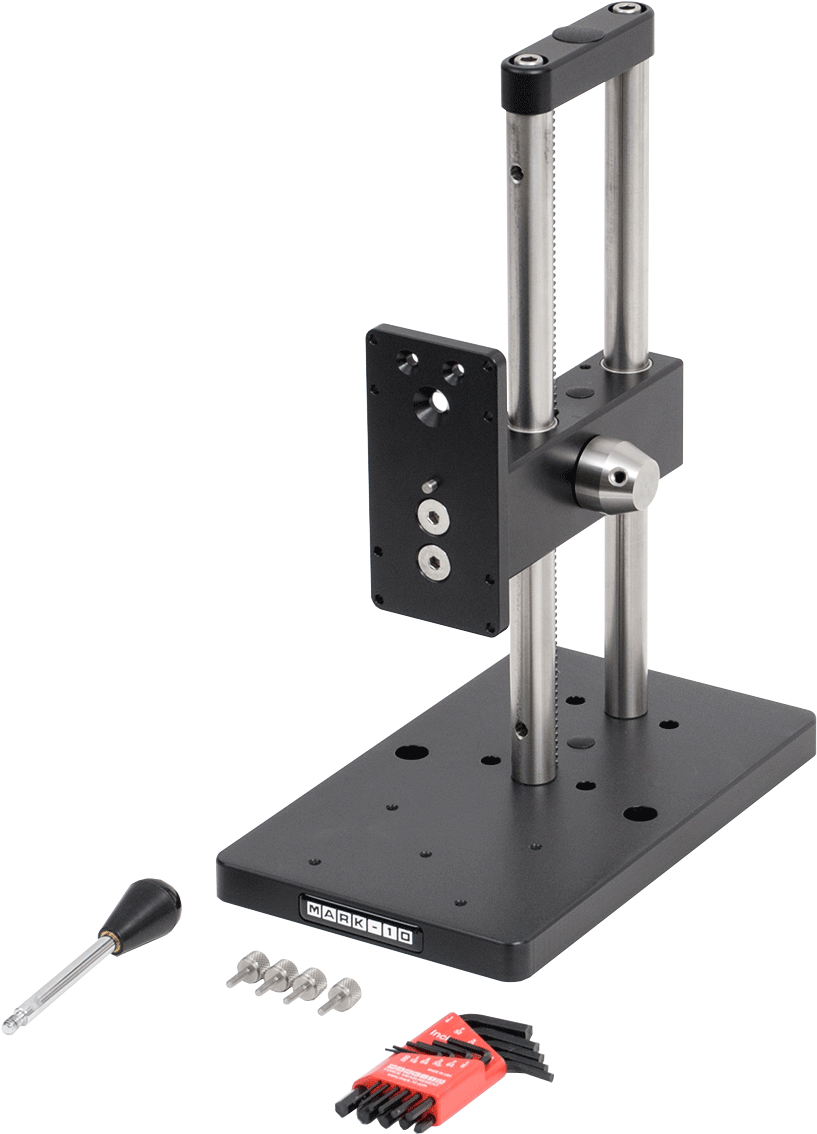

ES10 Model

The ES10 manual test stand is a compact and economical solution for compression and tensile testing of small samples. Use the stand with force gauges and grips to create complete and economical testing systems.
