Mark-10 EMU Test Frame with EasyMESUR Control Panel (0.5 kN - 6.7 kN) - Choice of Model
- EasyMESUR control panel
- Set up tests, view results, and export data
- Engineered for force testing applications up to 1,500 lbF
- Eight different test frames are available
SKU
F1/3/7/15-EMU
Mark-10 Series F test frames with EasyMESUR® are engineered to perform a wide range of tension and compression tests, including break testing, cycling, limit testing to a load or distance, load holding, average force testing, and more.
Set up and run tests, export results, and create a report via the integrated, easy-to-use touchscreen interface – no PC or force gauge required. For unique needs, run the tester from a PC with your custom application utilizing EasyMESUR®’s serial command library.
Sample setup and fine positioning are a breeze with available FollowMe® force-based positioning - using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.
Engineered around a modular function platform, the EasyMESUR® run screen can be arranged with extensive, simple controls – or configured for more advanced applications with a selection of optional functions, including distance measurement, graphing, cycling, and more.
Generous travel, clearance, and depth dimensions accommodate various shapes and properties samples. Modular mechanical design accommodates single and double-column extensions for oversized specimens.

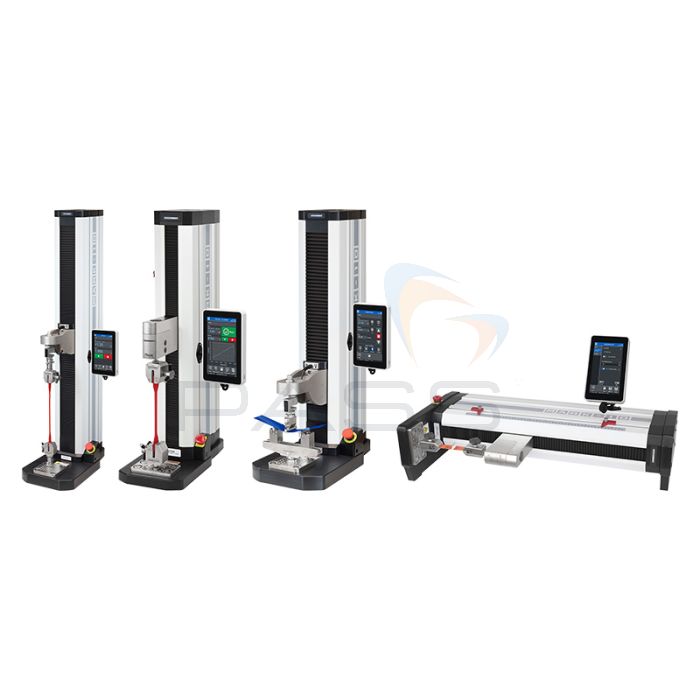

Series F + EasyMESUR Tension / Compression Force Testers
What's In the Box
F105-EM / F305-EM / F505-EM / F505H-EM
- Control panel with mounting hardware
- #10-32M medium hook
- 5/16-18M large hook
- #10-32F 2" diameter compression plate
- #10-32 M/F 2" extension rod
- #10-32 F/F coupler
- Adapter, 5/16-18M to #10-32F
- Set screw, #10-32 × 3/4"
- Hex nut, #10-32 (2)
- Power cord
- Allen wrench set
F755-EM / F755S-EM / F1505-EM / F1505S-EM
- Control panel with mounting hardware
- Eye end kit for base
- Lock ring for eye end (2)
- Spanner wrench (2)
- Power cord
- Allen wrench set
Rigid and Precise by Design
F105-EM / F305-EM / F505-EM / F505H-EM
Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Position accuracy is ±0.020 in / 0.5 mm under any load, at any position. Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.
F755-EM / F755S-EM / F1505-EM / F1505S-EM
Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ±0.006 in / 0.15 mm under any load, at any position.
Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.
Limit Switches
Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.
F105-EM / F305-EM / F505-EM / F505H-EM
F755-EM / F755S-EM / F1505-EM / F1505S-EM
Easy to Service Electronics
Most electronics are housed in an integrated module, easily replaced without special tools or processes.
F105-EM / F305-EM / F505-EM / F505H-EM
F755-EM / F755S-EM / F1505-EM / F1505S-EM
Technical Information
Specification
| Model | F105-EM | F305-EM | F505-EM | F505H-EM | F755-EM | F755S-EM | F1505-EM | F1505S-EM |
|---|---|---|---|---|---|---|---|---|
| Load capacity*: | 100 lbF [0.5 kN] | 300 lbF [1.3 kN] | 500 lbF [2.2 kN] | 750 lbF [3.4 kN] | 1,500 lbF [6.7 kN] | |||
| Maximum travel: | 18.0 in [457 mm] | 32.0 in [813 mm] | 14.2 in [360 mm] | 32.0 in [813 mm] | 14.2 in [360 mm] | |||
| Standard speed range: | 0.5 - 13 in/min [13 - 330 mm/min] | 0.5 - 24 in/min [10 - 600 mm/min] | ||||||
| Optional speed range: | 0.02 - 45 in/min [0.5 - 1,100 mm/min] | 0.001 - 60 in/min [0.02 - 1,525 mm/min] | 0.001 - 70 in/min [0.02 - 1,800 mm/min] | |||||
| Load accuracy (% of full scale): | Test frame: ±0.1% | |||||||
| Force sensor: Series FS05: ±0.1% | Series FS06: ±0.15% | Series R07: ±0.15% | ||||||||
| Peak sampling rate: | 5,000 Hz | |||||||
| Data acquisition rate: | 100 Hz | |||||||
| Speed accuracy: | ±0.2% of setting, virtually no variation with load | |||||||
| Position accuracy: | ±0.006 in [0.15 mm], at any load or position | |||||||
| Distance resolution: | 0.001 in [0.02 mm] | |||||||
| Limit switch repeatability: | ±0.001 in [0.03 mm] | |||||||
| Power: | Universal input 100-240 VAC, 50/60 Hz, 120W | Universal input 100-240 VAC, 50/60 Hz, 300W | Universal input 100-240 VAC, 50/60 Hz, 450W | |||||
| Fuse type: | 1.2 A, 250V, 3AG, SLO BLO | 4A, 3AG, SLO BLO | ||||||
| Weight: | 60 lb [27 kg] | 70 lb [32 kg] | 184 lb [83 kg] | 149 lb [68 kg] | 197 lb [89 kg] | 157 lb [74 kg] | ||
| Environmental conditions: |
|
|||||||
| Conformance: | CE, UKCA | |||||||
*Load capacity is reduced at higher speeds, as follows:
- F305-EM: limited to 200 lbF [1 kN] above 24 in [610 mm]/min
- F505-EM / F505H-EM: limited to 300 lbF [1.3 kN] above 24 in [610 mm]/min
- F755-EM / F755S-EM: limited to 500 lbF [2.3 kN] above 35 in [900 mm]/min
- F1505-EM / F1505S-EM: limited to 1,000 lbF [4.5 kN] above 60 in [1,525 mm]/min

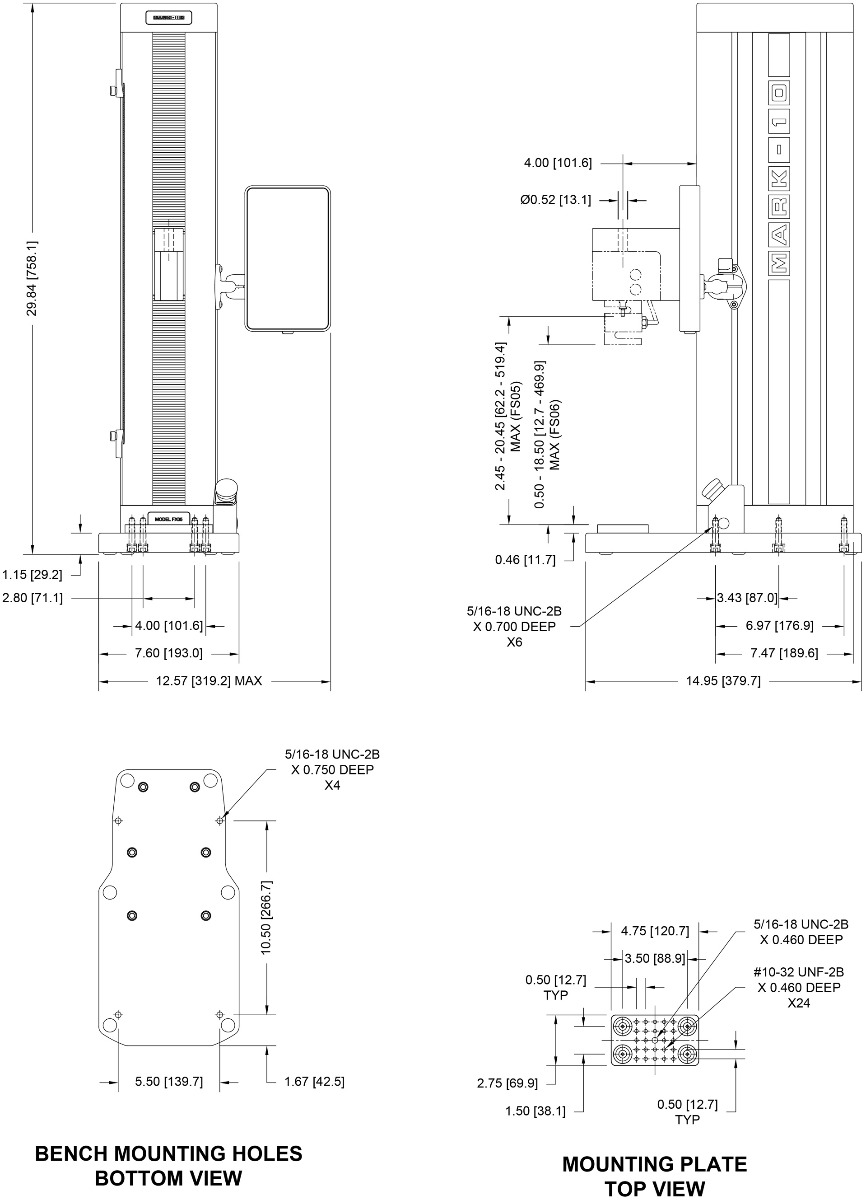

F105-EM / F305-EM / F505-EM
IN [MM]

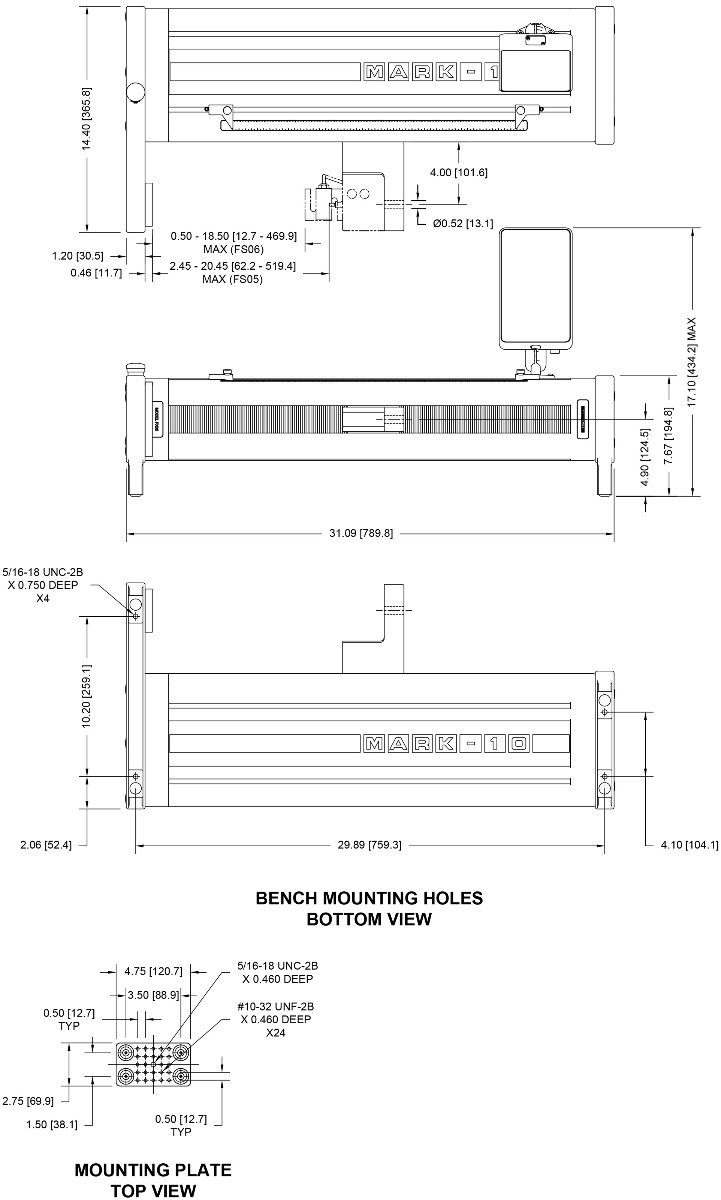

F05H-EM
IN [MM]

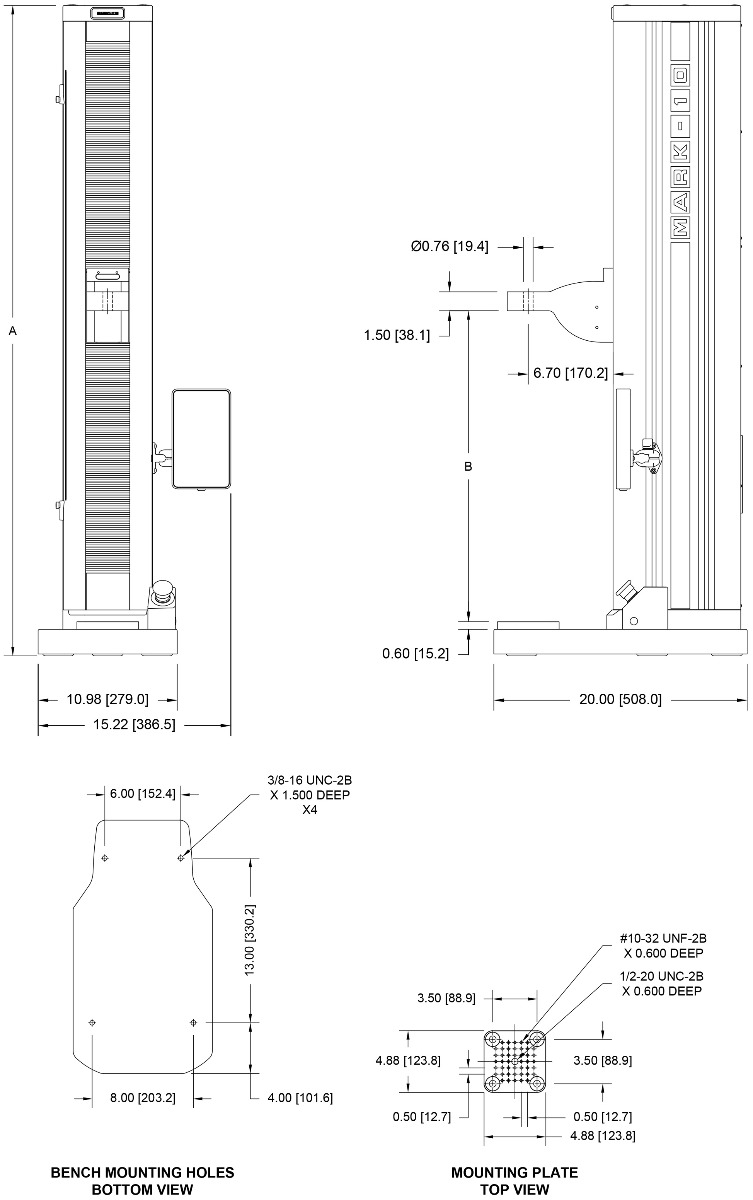

| Model | A | B |
|---|---|---|
| F755-EM | 50.85 [1291.6] | 8.13 - 40.13 [206.4 - 1019.2] |
| F755S-EM | 33.39 [848.1] | 8.13 - 22.33 [206.4 - 567.1] |
| F1505-EM | 51.35 [1304.3] | 8.13 - 40.13 [206.4 - 1019.2] |
| F1505S-EM | 33.89 [860.9] | 8.13 - 22.33 [206.4 - 567.1] |
