Note: this product is available in three colours. Use the dropdown box above to make a selection when placing your order.
This is not a pack of three hasps. One hasp in your selection of colour is included.
This small-size hasp is suitable for use in any lockout application and gives the user the ability to attach up to six padlocks to the isolation point.
Available in blue, green and black colours, these hasps are great for multiple teams, each which can be designated their own colour for easier identification. Each hasp is made from high tensile steel with rust protection and comes with a high quality vinyl-coating across the body for comfortable grip and long life durability.
Key Features
- Three colours available - ideal for multiple lockout teams
- Space for up to six padlocks
- High quality steel design with vinyl coating across the body
- Easy to install - scissor action sections clip together easily
- Suitable for use in a wide variety of lockout applications
- 5mm shackle thickness

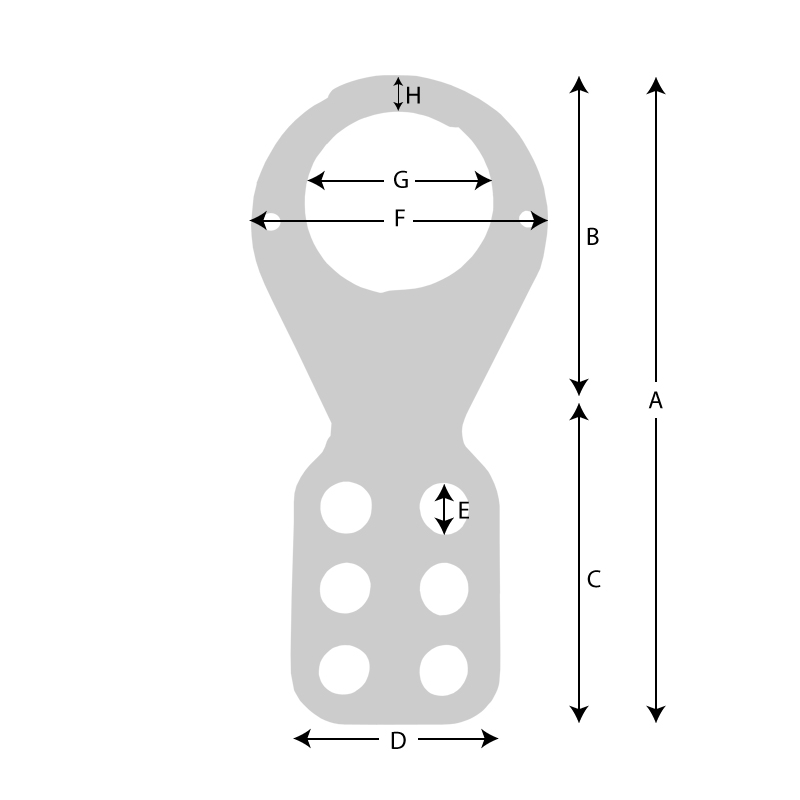

Hasp Dimensions
All values are approximate.
Parameter | Measurements | |
A - Overall Height | 126mm | |
B - Shackle Length | 74mm | |
C - Hasp Length | 53mm | |
D - Hasp Width | 40mm | |
E - Hole Diameter | 10mm | |
F - Overall Width | 60mm | |
G - Inner Shackle Width x Height | 38mm x 38mm | |
H - Shackle Height | 0.44 |
Reviews
SKU | LT-VCH-P-CR-OPTION |
---|---|
Manufacturer Part Code | ES-VCH-P-CR |
