Important Notice
This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
Klauke K3014K Self-Setting Crimping Tool, Cable/Twin End-Sleeves
- L-BOXX & tool or tool-only options
- Handle with slip guard and inscription panel
- Safety pad in handle for non-slip operation
SKU
KL-K3014K/KIT

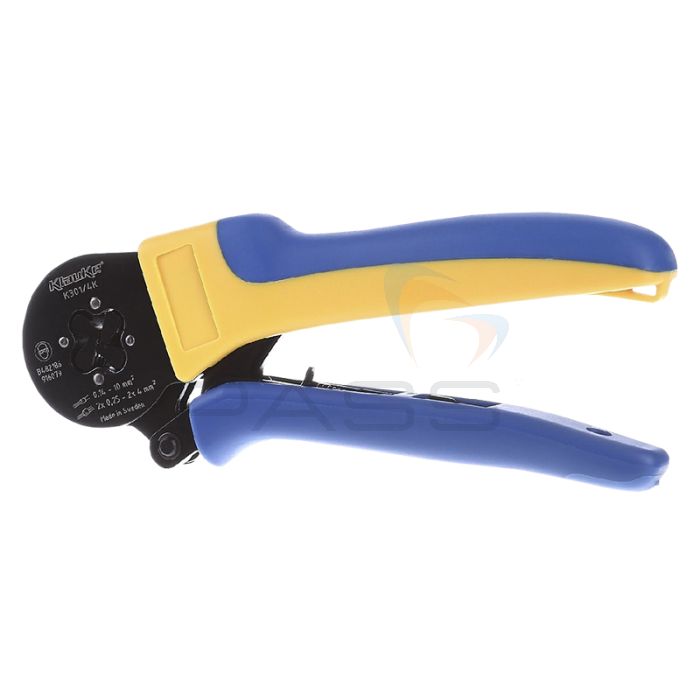

The Klauke K3014K is a lightweight, ergonomic, self-setting square crimping tool. Suitable for cable end-sleeves and twin cable end-sleeves. The K3014K is available to purchase on its own or as part of a kit with a selection of additional extras.
Key Features
- One crimping profile for all cross-sections due to automatic cross-section adjustment
- With ratchet for consistently controlled crimp results
- Lateral insertion (side crimping)
- Handle with slip guard and inscription panel
- Safety pad in handle for non-slip operation
What's Included?
- K3014K - Tool Only
- K 301/4 K self-setting crimping tool
- LBOXXMINIK3014K - Tool & L-BOXX
- 1 Self-setting crimping tool (K3014K)
- 100 Insulated Cable end sleeve, 1.5 mm², 14 mm (4728)
- 100 Insulated Cable end sleeve, 2.5 mm², 18 mm (47312)
- 50 Insulated Cable end sleeve, 4 mm², 20 mm (47412)
- 50 Insulated Cable end sleeve, 6 mm², 20 mm (47512)
- 30 Insulated Cable end sleeve, 10 mm², 22 mm (47612)
- 1 Hand-operated cutting tool for Al and Cu cables to 12 mm dia (K118)
- 1 L-BOXX "Mini" (LBOXXMINIL)
Product Range
- Klauke K3014K Self-Setting Crimping Tool
- Klauke LBOXXMINIK3014K Self-Setting Crimping Tool & L-BOXX
Technical Information
Specification
| Crimping Range of Cable End-Sleeves | 0.14 - 10 mm² |
|---|---|
| Crimping Range of Twin Cable End-Sleeves | 2 x 0.25 - 2 x 4 mm² |
| Length | 175 mm |
| Weight | 0.35 kg |
Additional Information
SKU
KL-K3014K/KIT
Klauke K3014K Self-Setting Crimping Tool, Cable/Twin End-Sleeves
£131.10
£157.32 inc vat
£131.10
£157.32 inc vat
