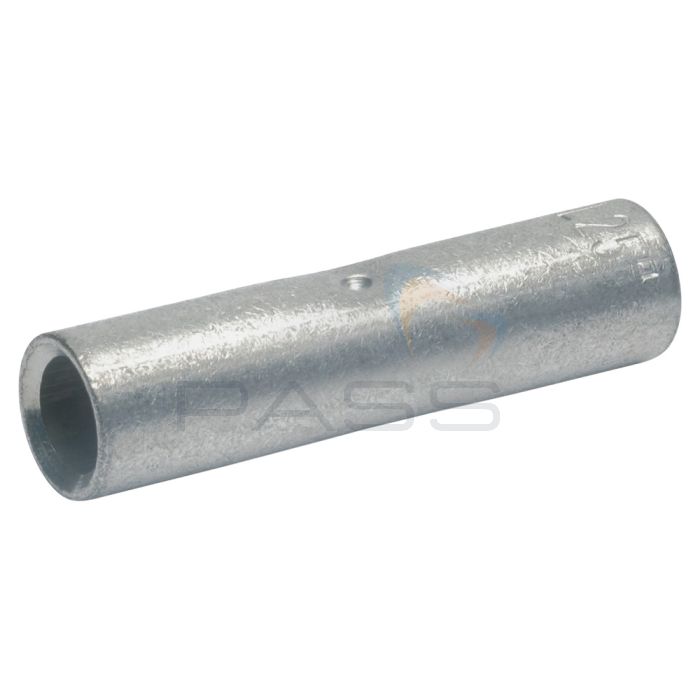

Klauke Cu, Standard Type Butt Connectors, Pack of 50 or 100

The butt mark on these Klauke connectors delivers a simple and safe process. The code indicators on the butt connectors make them a reliable tool selector. Made from copper with a tin-plated surface to protect against corrosion.

Key Features

• Approval of the tin-plated cable lugs for use with high-temperature cables 180° C (in acc. with IEC 61238-1-1): The cable lugs can be used with class 5 tin-plated conductors (fine-stranded).
• For fine-stranded round conductors, e.g. to EN 60228 Cl. 5 from 0.75-4 mm²
• For multi-stranded round conductors, e.g. to EN 60228 Cl. 2 from 6–400 mm²
• For pre-rounded multi-stranded sector-shaped conductors
• Simple cable entry due to precise internal chamfer
• In combination with EKM 60 ID and EK 30 ID suitable for fine-stranded conductor
• Reducing sleeves, also suitable for connecting different cross-sections

Product Range

• Klauke 21R Cu, Standard Type Butt Connectors (Pack of 100), 6mm²
• Klauke 22R Cu, Standard Type Butt Connectors (Pack of 100), 10mm²
• Klauke 23R Cu, Standard Type Butt Connectors (Pack of 100), 16mm²
• Klauke 24R Cu, Standard Type Butt Connectors (Pack of 50), 25mm²
• Klauke 25R Cu, Standard Type Butt Connectors (Pack of 50), 35mm²
• Klauke 26R Cu, Standard Type Butt Connectors (Pack of 50), 50mm²
• Klauke 27R Cu, Standard Type Butt Connectors (Pack of 50), 70mm²
