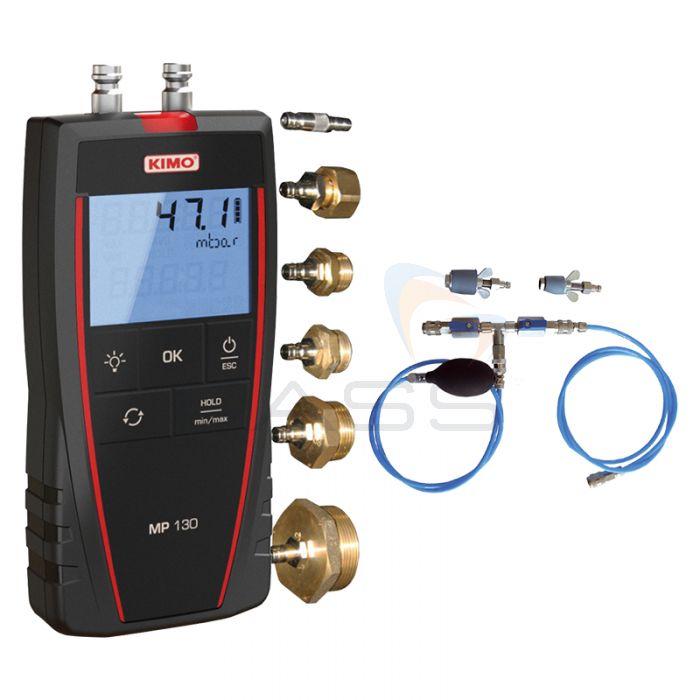

KIMO MP130 Micro Manometer for Gas Network Leak Testing

Made specifically for use in gas network testing, the KIMO MP130 is an essential instrument for gas professionals.

Portable and easy to use with simple, five-button design, a large-size, backlit LCD screen and a number of useful functions, the KIMO MP130 delivers consistent, reliable results.

The KIMO MP130 can test pressure levels from -200 to +200mbar with selectable pressure measurement units of Kpa, inWg, mbar, mmHg and daPa. Resolution is as low as 0.01mbar (from 0 to 20mbar) and 0.1mbar (from 20 to 200mbar).

This version of the MP130 is supplied with a seal kit which includes stainless steel male and female connectors, two plugs, a tap with 2 valves and 3 channels, a pressurisation pump and different connector types.

KIMO MP130 Micro Manometer for Gas Network Leak Testing Key Features

• Special manometer specifically designed for gas network leak testing
• 4.6mm diameter threaded connectors made from nickelled brass
• Measure pressure in selectable units: Kpa, inWg, mbar, mmHg and daPa
• Measurement range from -200 to +200mbar
• Manual self calibration function
• Hold function temporarily freezes current value shown on the screen
• Display MAX/MIN values taken over a period of time
• Configurable automatic shutoff
• Backlight - ideal for use in darkened areas
• 180 hour battery life

What's Included?

• KIMO MP130 Manometer
• Calibration Certificate
• Transport Case

This unit also includes a Seal Kit, which includes:

• Stainless Steel Male Connector (9mm Diameter)
• Stainless Steel Female Connector (9mm Diameter)
• Plug - Outside Diameter 22-44mm, 9mm Male Connector
• Plug - Outside Diameter 18-32mm, 9mm Male Connector
• Tap with 2 Valves and 3 Channels
• Rubber Pressurisation Pump
• 10-32 Connector
• 6-20 Connector
• Male Bottle Connector
• M20x1.5 Connector
• 1/2G Connector
• Fast Connector
