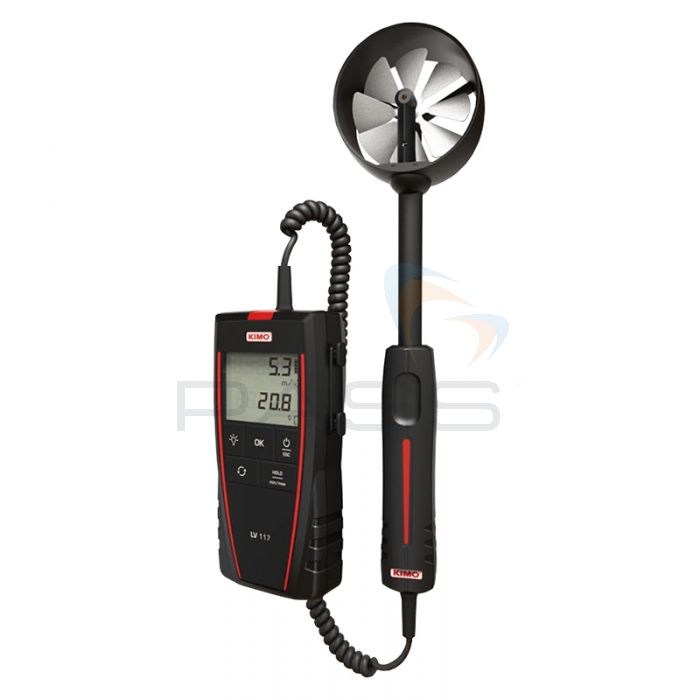

KIMO LV117 Thermo Anemometer w/ Remote 70mm Vane Probe
- Precision thermo anemometer with 70mm diameter vane sensor connected via coiled cable
- Measure airflow, air velocity and temperature with selectable measurement units
- Precise, reliable results
SKU
K-LV117
MPN
LV 117
The mid-range model in KIMO's LV110 series of thermo anemometers, the LV117 comes as standard with a 70mm diameter vane sensor attached to the meter via a flexible coiled cable (with maximum length of 2.4m).
As a thermo anemometer, the KIMO LV117 is suitable for measuring airflow, air velocity and temperature. Thanks to the flexible nature of the vane sensor, it's easy to hold the meter in one hand while holding the sensor in another, allowing you to view your measurements in real-time while the sensor is still inside where you're testing.
KIMO's LV117 is highly accurate and includes the ability to switch the measurement units for all three parameters. Air velocity can be measured in m/s, fpm and km/h across a range from 0.4 to 35m/s; airflow can be measured in m³/h, cfm, ls and m³/s across a range from 0 to 99,999m³/h and temperature can be measured in either Celsius or Fahrenheit from -20 to +80°C.
Additional features of this anemometer include a backlight for the LCD screen, data hold (freezes current value shown on screen) and a MIN/MAX measurement mode which calculates the minimum/maximum values taken over a period of time.
KIMO LV117 Thermo Anemometer Key Features
- Precision professional anemometer with 70mm diameter vane sensor
- Vane sensor attached to meter body via flexible coiled lead (max length of 2.4m)
- Measure air velocity in m/s, fpm and km/h across a range from 0.4 to 35m/s
- Measure airflow m³/h, cfm, ls and m³/s across a range from 0 to 99,999m³/h
- Measure temperature in Celsius/Fahrenheit across a range from -20 to +80°C
- Automatic average
- HOLD function temporarily stores current value shown on the screen
- Display MAX/MIN values taken over a period of time
- Configurable automatic shutoff
- Backlit screen - ideal for use in darkened conditions
What's Included?
- KIMO LV117 Thermo Anemometer
- 70mm Diameter Vane Sensor
- Calibration Certificate
- Transport Case
Optional Accessories
These may not be listed on the website. If not, please call the sales team quoting the part number (in bold) for pricing details.
- CQ15 - Magnetic Protective Housing
- RTE - Telescopic Probe Extender (1m Length) with 90° Bent End
- MT51 - ABS Transport Case
£296.10
£355.32 inc vat
Stock Due:
Typically 2-3 Weeks
Technical Information
Specification
KIMO LV117 Technical Specifications
| Measuring Units | Measuring Range | Accuracy | Resolution |
|---|---|---|---|
| Air Velocity | |||
| m/s, fpm, km/h | From 0.4 to 35m/s | From 0.4 to 3m/s: ±3% of reading ±0.1m/s | 0.1m/s |
| From 3.1 to 35m/s: ±1% of reading ±0.3m/s | |||
| Airflow | |||
| m³/h, cfm, l/s, m³/s | From 0 to 99,999m³/h | ±3% of reading ±0.03 area (cm²) | 1m³/h |
| Temperature | |||
| Celsius/Farhenheit | From -20 to +80°C | ±0.4% of reading ±0.3°C | 0.1°C |
| General Specifications | |||
| Measuring Elements | Air Velocity: hall effect sensor Ambient Temperature: NTC sensor |
||
| Display | 4 lines, LCD technology. Size: 50 x 36mm 2 lines of 5 digits with 7 segments (value) 2 lines of 5 digits with 16 segments (unit) |
||
| Vane Probe Diameter | 70mm | ||
| Cable | Coiled, 0.45m extendable to 2.4m | ||
| Housing | ABS, protection: IP54 | ||
| Keypad | 5 keys | ||
| Conformity | Directives CEM 2004/108/CE and NF EN 61010-1 | ||
| Power Supply | 4 x AAA, LR03, 1.5V batteries | ||
| Battery Life | 120 hours | ||
| Ambience | Neutral gas | ||
| Operating Temperature (Instrument and Probe) | From 0 to +50°C | ||
| Storage Temperature | From -20 to +80°C | ||
| Automatic Shutoff | Adjustable from 0 to 120 minutes | ||
| Weight | 390g | ||
