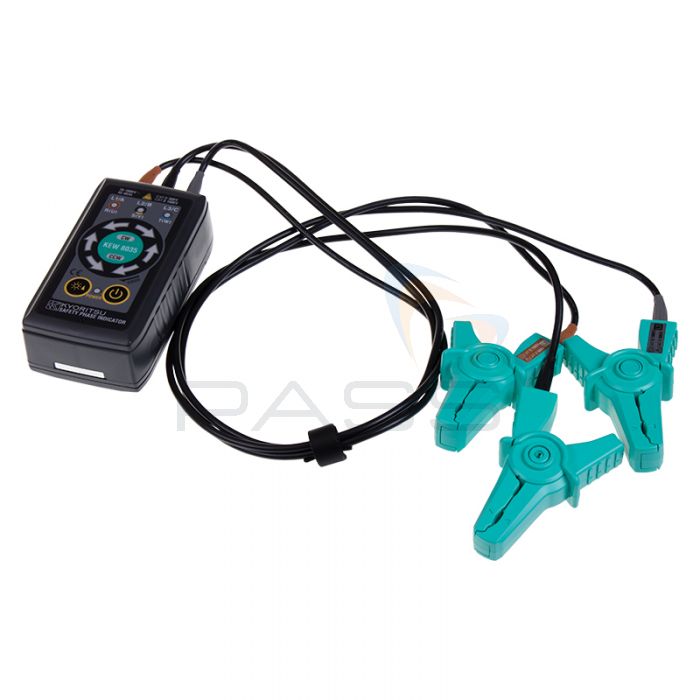

Kewtech KEW8035 Non-Contact Phase Rotation Tester
- Non-contact measurements
- 70V to 1000V AC measurement range
- LED indicators
SKU
KEWPR2
MPN
KEW8035
Use the KEW8035 to safely test phase rotation without the need to expose live conductors!
One of the world's only non-contact phase rotation testers, the KEW8035 requires no metallic contacts to work (ideal for safer and faster testing) and there's no need to make direct contact between probes and live wires in order to test.
To indicate phase direction, the KEW8035 uses a combination of LED and audible tones. Green LEDs are used for clockwise direction with an intermittent tone, while red LEDs are used for counter-clockwise direction with a continuous tone.
This tester is suitable for a wide range of 3-phase installations from 70V to 1000V AC and even comes with a magnetised back for attachment to a metallic surface for hands-free testing.
Kewtech KEW8035 Non-Contact Phase Rotation Tester Key Features
- Doesn't require metallic contact - easier and safer testing
- Uses different-coloured LED indicators and audible tones to show phase direction
- Super bright mode for use even in direct sunlight
- Includes insulated croc clips suitable for use with insulated cables from 2.4 to 30mm in diameter
- Integral magnet - place on a metallic surface for hands-free usage
- Wide measuring range for 3-phase installations from 70V to 1000V
- Compliant with IEC 61010-1 CAT IV 600V and CAT III 1000V
What's Included?
- Kewtech KEW8035 Non-Contact Phase Rotation Tester
- 9096 Carrying Case
- 4 x Alkaline Batteries
- Instruction Manual
Technical Information
Specification
Kewtech KEW8035 Technical Specifications
| Functions | Phase rotation (clockwise or counter clockwise), presence of open phase |
| Detection Method | Electrostatic induction |
| Measuring Voltage Range | From 70 to 1000V AC phase to phase (sine wave, continuous input) |
| Clamp Diameter Range | From 0.24 to 30mm (insulated cables) |
| Measuring Frequency Range | 45 to 66Hz |
| Phase Rotation | Clockwise: green arrow LEDs rotate in clockwise direction, green symbol 'CW' lights and intermittent buzzer sounds Counter clockwise: red arrow LEDs rotate in counter clockwise direction, red symbol 'CCW' lights and continuous buzzer sounds |
| VIsual Indication | Via LEDs with super-brightness function |
| Operating Conditions | Temperature/Humidity Range: -10 to 50°C, 80% humidity (no condensation) |
| Storage Conditions | Temperature/Humidity Range: -20 to 60°C, 80% humidity (no condensation) |
| Power Supply | 4 x alkaline (LR6) batteries Continuous use approx 100 hour battery life (auto power off after 10 mins) |
| Battery Voltage Warning | Power LED blinks if battery voltage is too low |
| Test Leads | Double insulated cables |
| Colour Code | L1 (U): Red L2 (V): White L3 (W): Blue |
| Applicable Standards | IEC 61010-1, CAT IV 600V, CAT III 1000V, Pollution degree 2, IEC 61557-1, -7 |
| Dimensions | 112 (L) x 61 (W) x 36mm (D) |
| Weight | Approx 380g |
Document Downloads
Kewtech KEW8035 Phase Rotation Tester - Datasheet
Kewtech KEW8035 Phase Rotation Tester - User Manual
