Kern HFD Triple-Range, High-Resolution Crane Scales – Choice of Model

SKU
Kern-HFD
Rating:
0%
(0)
Reward Points
:
457
£457.44 £381.20
Free UK Delivery*
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Kern HFD Triple-Range, High-Resolution Crane Scales – Choice of Model - Remote Control

The Kern HFD Triple-Range, High-Resolution Crane Scales are available in five models with different measurement ranges. Please see the table below for further details.

Model Code Model Name

Weighing Range

[Max]

kg

Readout

[d]

g

Net Weight.

approx.

kg

HFD 600K-1 Kern HFD 600K-1 Triple-Range, High-Resolution Crane Scales 150 | 300 | 600 50 | 100 | 200 11
HFD 1T-4 Kern HFD 1T-4 Triple-Range, High-Resolution Crane Scales 300 | 600 | 1500 100 | 200 | 500 11
HFD 3T-3 Kern HFD 3T-3 Triple-Range, High-Resolution Crane Scales 600 | 1500 | 3000 200 | 500 | 1000 11
HFD 6T-3 Kern HFD 6T-3 Triple-Range, High-Resolution Crane Scales 1500 | 3000 | 6000 500 | 1000 | 2000 36
HFD 10T-3 Kern HFD 10T-3 Triple-Range, High-Resolution Crane Scales 3000 | 6000 | 12000 1000 | 2000 | 5000 40

These scales will automatically change to the next highest measurement range when required.

The Kern HFD Triple-Range, High-Resolution Crane Scales feature a stable, robust construction including solid, non-revolving shackles. This makes the Kern HFD Triple-Range, High-Resolution Crane Scales suitable for continuous use within industrial environments.

These scales are also compliant with EN 13155 (non-fixed load lifting attachments/ breakage resistance) and EN 61010-1 (electrical safety) specifications and so include a TÜV certification mark.

Further to this, their compact, lightweight and rechargeable-battery-operated design ensure that these Kern HFD Triple-Range, High-Resolution Crane Scales can be transported easily between and across worksites. They are therefore ideal for use in dispatch centres, warehouses and production industries.

The internal battery pack is able to supply the Kern HFD Triple-Range, High-Resolution Crane Scales with up to eighty hours of power (without backlight) and has a charging time of twelve hours. Alternatively, these scales can be powered using the included mains adapter.

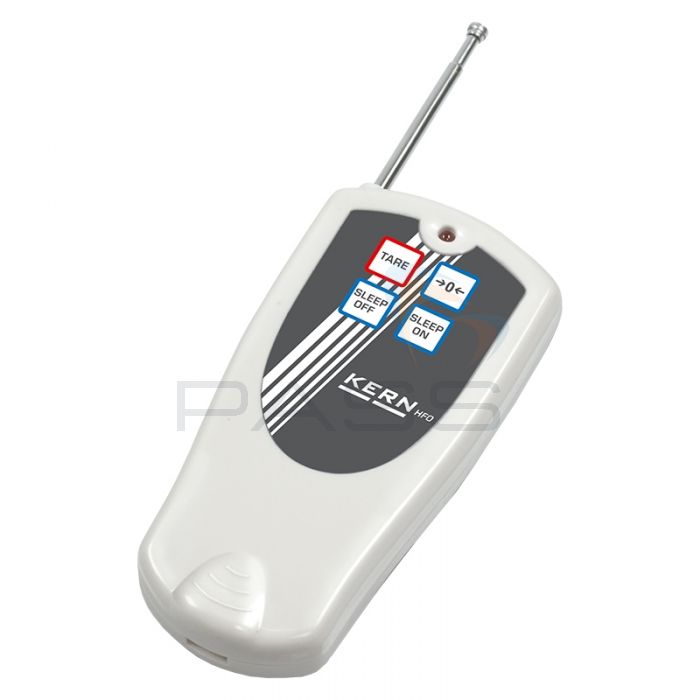

Also adding to the versatility and practicality of the Kern HFD Triple-Range, High-Resolution Crane Scales is their ability to be operated remotely via the included radio remote control (supplied with 2x 1.5V AAA batteries). This control provides access to all the Kern HFD Triple-Range, High-Resolution Crane Scales’ measurement parameters and functions. It has a range of up to 20m.

The Kern HFD Triple-Range, High-Resolution Crane Scales feature Hold and Tare measurement functions. Once a stable measurement has been detected the Hold function will freeze the reading on the screen until the Hold button is pressed.

The Tare function can be used to reset the scale to zero when there is a load on the scale. This allows the user to measure the addition or removal of loads directly.

Measurements are indicated on the Kern HFD Triple-Range, High-Resolution Crane Scales’ bright, backlit display with a digit height of 30mm.

The Kern HFD Triple-Range, High-Resolution Crane Scales are easy-to-use, practical and resilient balances, ideal for a variety of applications across industry and production sites, as well as dispatch departments and warehouses.

Kern HFD Triple-Range, High-Resolution Crane Scales Key Features

  • Available in five models with different measurement ranges
  • The scales will automatically switch to the next highest measurement range when required
  • Features a stable, robust construction including solid, non-revolving shackles
  • Suitable for continuous use within industrial environments
  • EN 13155 compliant
  • EN 61010-1 compliant
  • TÜV certification mark
  • Compact, lightweight design
  • Powered using an internal rechargeable battery
  • Internal, rechargeable battery provides up to 80 hours of power (backlight off)
  • Internal, rechargeable battery has a charging time of 12 hours
  • Can be powered using the included mains adapter
  • Easily transported between and across worksites
  • Ideal for use in dispatch centres, warehouses and production industries
  • Supplied with a radio remote control with 2x 1.5V AAA batteries
  • Access measurement parameters and functions using the remote control
  • The remote control has a range of up to 20m
  • Hold function
  • Tare function
  • Bright, backlit display with a digit height of 30mm
  • Easy-to-use, practical and resilient balances

What’s Included?

  • Your Choice of Kern HFD Triple-Range, High-Resolution Crane Scales
  • Radio Remote Control (with 2x 1.5V AAA batteries)
  • Mains Adapter

Accessories

There are a number of Kern accessories compatible with the Kern HFD Triple-Range, High-Resolution Crane Scales including Kern DAkkS calibrations. For a quick overview of the accessories available for Kern HFD Triple-Range, High-Resolution Crane Scales, please see the table below. For further information, or to add a product listed below to an order, please contact our sales team prior to purchase.

Product Code Product Name
963-130H Kern DAkkS Calibration for HFD 600K-1 and HFD 1T-4
963-132H Kern DAkkS Calibration for HFD 3T-3 and HFD 6T-3
963-133H Kern DAkkS Calibration for HFD 10T-3
HFD-A01 Kern Hook with Safety Catch for HFD 600K-1 and HFD 1T-4
HFD-A02 Kern Hook with Safety Catch for HFD 3T-3
HFD-A03 Kern Hook with Safety Catch for HFD 6T-3
HFD-A05  Kern Hook with Safety Catch for HFD 10T-3
HFD-A01 Kern Rechargeable Internal Battery Pack
YKA-11 Kern Mains Adapter

Kern HFD Triple-Range, High-Resolution Crane Scales Technical Specifications

Please find above a selection of PDF documents detailing the technical specifications for each of the Kern HFD Triple-Range, High-Resolution Crane Scales.

Kern HFD Triple-Range, High-Resolution Crane Scales - Safety Datasheet Datasheets Kern HFD Triple-Range, High-Resolution Crane Scales - Datasheet Datasheets Kern HFD Triple-Range, High-Resolution Crane Scales - Operating Manual Manuals & Guides Kern HFD 10T-3 Triple-Range, High-Resolution Crane Scales - Technical Specifications Technical Specifications Kern HFD 6T-3 Triple-Range, High-Resolution Crane Scales - Technical Specifications Technical Specifications Kern HFD Triple-Range, High-Resolution Crane Scales - Dimensional Drawing Technical Specifications Kern HFD 1T-4 Triple-Range, High-Resolution Crane Scales - Technical Specifications Technical Specifications Kern HFD 3T-3 Triple-Range, High-Resolution Crane Scales - Technical Specifications Technical Specifications Kern HFD 600K-1 Triple-Range, High-Resolution Crane Scales - Technical Specifications Technical Specifications Kern HFD Triple-Range, High-Resolution Crane Scales - Declaration of Conformity Certifications & Declarations

Reviews

Additional Information
SKU Kern-HFD
Manufacturer Part Code HFD 600K-1
