Compatible with natural gas, LPG, butane, light oil, wood pellets, and propane, the Kane 358 Flue Gas Analyser with CO sensor protection can be used to test oil, domestic gas, biomass, and some commercial appliances, as well as conduct structured benchmark new boiler commissioning tests, and structured let by and tightness tests.
The Kane 358 can measure carbon monoxide (0-2000ppm), oxygen (0-21%), differential temperature, and differential pressure (high accuracy ±80mbar). In addition to this, it can calculate carbon dioxide (0-20%), CO: CO2, excess air, and combustion efficiency. Required tests and functions can be easily selected using the Kane 358 Flue Gas Analyser’s rotary dial.
Measurements are displayed on the six-line display. The Data Hold function freezes the reading on screen; the Kane Flue Gas Analyser also includes Data Log and Print functions. Wirelessly send readings to a smartphone or tablet with the KANE Live app installed.

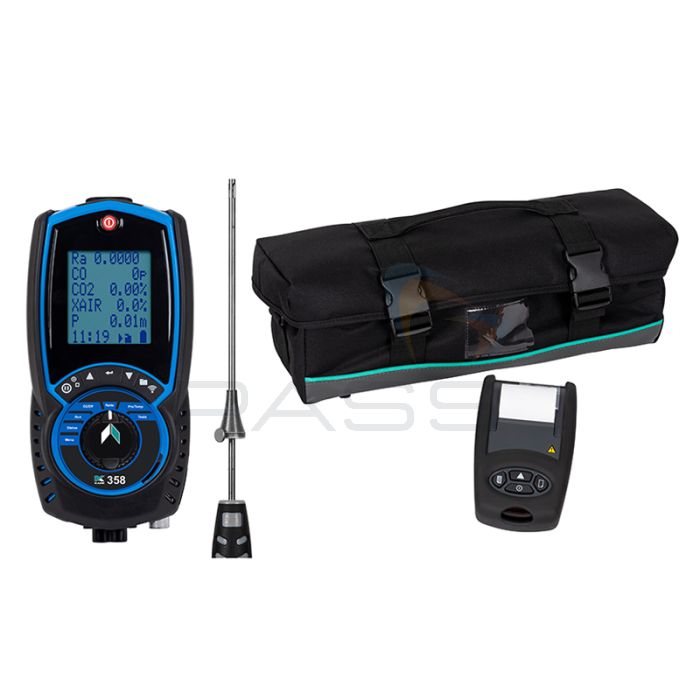

The Kane 358 Flue Gas Analyser is ideal for installing and servicing oil, domestic gas, and biomass appliances, as well as conducting combustion performance, combustion efficiency, and flue draught checks. In this kit, the Kane 358 FGA is supplied with a Kane IRP3 Printer and a Soft Carry Case.
The Kane 358 Flue Gas Analyser is available as an individual item or as part of various kits. Please see the table below for an overview of the products included with each option.
Kane 358 FGA | Kane 358 FGA Kit | Kane 358 FGA Pro Kit | Kane 358 FGA CPA1 Kit | Kane 358 FGA OIL Kit | |
Kane 358 FGA | • | • | • | • | • |
IRP3 Printer | • | • | • | • | |
Soft Case | • | ||||
Large Soft Case | • | • | |||
14102/2 Large Carry Bag | • | ||||
Gas Leak Detector | • | • | |||
KAL1 & KPCP (x2) Temperature Probes | • | • | |||
HARHOSE Pressure Tubing | • | • | |||
ASP3 Oven & Grill Probes | • | ||||
KANEMSP & SP9 Smoke Pump & Papers | • | ||||
Oil Gauges | • |
Features | KANE258 | KANE358 | KANE458s | KANE460 |
---|---|---|---|---|
FGA approved to EN50379 by TUV | ✓ | ✓ | ✓ | ✓ |
Wireless link to KANE LIVE | Option | ✓ | ✓ | ✓ |
Pressure, tightness & let by test | ✓ | ✓ | ✓ | |
TB143 Boiler commission test | ✓ | ✓ | ✓ | |
BS7967 Boiler sweep | ✓ | ✓ | ✓ | |
CMDDA room CO test | ✓ | ✓ | ||
Ambient CO2 for IAQ & COM-CAT CP42 test approved to EN50543 | Option | Option | ||
High CO & NOx | Option | Option | ||
Kane Link wireless measurement & future proof promise | ✓ | ✓ | ||
IAQ - Temp, RH & airflow | KANE-DTHA2* | KANE-DTHA2* | ||
Heat pump wireless test | KANE-WPCP* | KANE-WPCP* | ||
A/C & refrigeration wireless test | KANE-HUB4* |
*Optional extra, used via KANE-LINK
