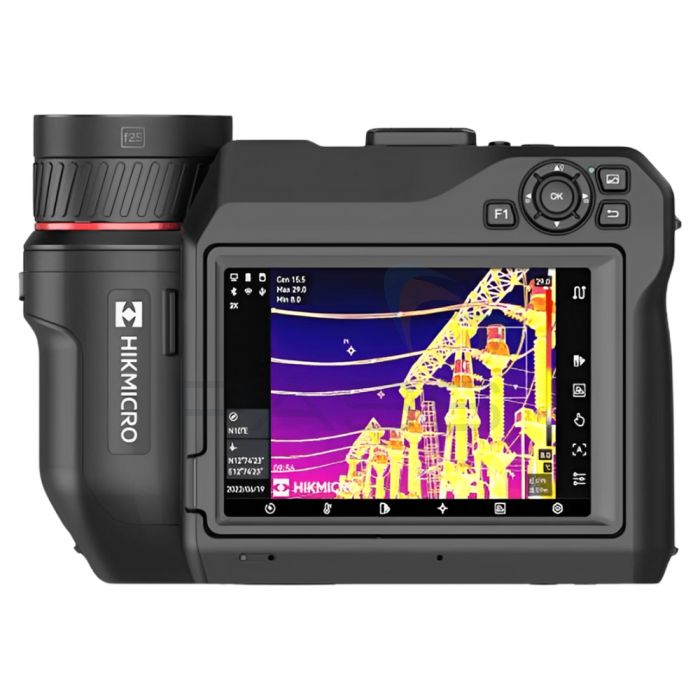

HikMicro SP40H Handheld Thermal Camera (30 Hz)
The HikMicro SP40H handheld thermal cameras are an excellent instrument for industrial, predictive, oil and gas, and utility maintenance inspections. These cameras feature a high sensitivity (NETD < 30 mK) and a high-resolution (480 x 360) VOx detector. They can handle temperature calibrations up to 2200°C, making them a reliable choice for various demanding applications.
Advanced features enable thermal imaging professionals to survey equipment and detect signs of malfunction. These include GPS and compass annotations, continuous digital zoom, and the 1-Tap level and span adjustment. By connecting to the HikMicro Viewer App or HikMicro Analyzer software, users can transfer, analyze, and share images and generate reports at no additional cost.
The SP40H series boasts an impressive array of four lens options: L6, L9, L19, and L37. Each lens is meticulously designed to cater to diverse requirements, ensuring optimal performance across various applications.
Key Features
- Thermal resolution: 480 x 360 (172,800 pixels),NETD : < 30 mK (@ 25 °C,F#=1.0)
- Temperature measurement range : -40°C to 2200°C (-40°F to 3992°F)
- Accuracy: Max. (±1°C (±1.8°F): 0 to 100°C (32 to 212°F); ±1%: 100 to 150°C (212 to 302°F))
- The 90° rotating screen and the 180° rotating lens design
- 1024 x 768 OLED electronic viewfinder and an auto-brightness 5-inch colour LCD
- 1.x to 12.x continuous digital zoom
- Manual, automatic, and 1-Tap Level and Span
- 30 Hz image frequency
- Up to 4 hours of continuous running
What's Included?
- Choice of SP40H Thermal Camera
- 2 Interchangeable Li-ion Batteries
- Dual Bay Charger
- USB Cable
- HDMI Cable
- Power Adapter
- Carrying Case
- User Manual
- Calibration Certificate
Product Range
- HikMicro SP40H-L6 Handheld Thermal Camera, 6° x 4.5°
- HikMicro SP40H-L9 Handheld Thermal Camera, 9° x 6.8°
- HikMicro SP40H-L19 Handheld Thermal Camera, 18.7° x 14°
- HikMicro SP40H-L37 Handheld Thermal Camera, 37.3° x 27.8°
| Infrared Image | |
|---|---|
| IR Resolution | 480 x 360 (172,800 pixels) |
| SuperIR | 960 x 720 (691,200 pixels) |
| NETD | <30 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 30 Hz |
| Detector Pitch | 17 µm |
| Spectral Range | 7.5 to 14 µm |
| Focal Length | L6: 77.4 mm; L9: 51.4 mm; L19: 25 mm; L37: 12.6 mm |
| F-number | L6: F1.2; L9: F1.1; L19: F1.0; L37: F1.0 |
| Field of View (FOV) | L6: 6° x 4.5°; L9: 9° x 6.8°; L19: 18.7° x 14°; L37: 37.3° x 27.8° |
| Spatial Resolution (IFOV) | L6: 0.22 mrad; L9: 0.33 mrad; L19: 0.66 mrad; L37: 1.35 mrad |
| Min. Focus Distance | L6: 2 m (6.56 ft); L9: 1 m (3.3 ft); L19: 0.2 m (0.65 ft); L37: 0.2 m (0.65 ft) |
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF |
| Focus Speed | Approx. 1 second |
| Image Display | |
| Visual Camera | 3264 x 2448 (8 MP) |
| Display | 1280 x 720 Resolution, 5” LCD Touch Screen |
| Screen Brightness | Manual/Auto |
| Digital Zoom | 1.x to 12.x continuous |
| Colour Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Focus Mode Palette | Above/Below/Interval |
| Colour Alarm | Above/Below/Interval/Insulation |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | -40°C to 2200°C (-40°F to 3992°F) |
| Accuracy | ±1°C (±1.8°F): 0 to 100°C (32 to 212°F) ±1%: 100 to 150°C (212 to 302°F) ±2°C (±3.6°F): -40 to 0°C (-40 to 32°F) ±2%: 150 to 2200°C (302 to 3992°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles |
| Level and Span Mode | Auto/Manual/1-Tap Touch-Screen |
| Inspection Route | Yes |
| Data Storage and Communication | |
| Storage Media | Removable 64 GB SD Card |
| Image Storage Capacity | Approx. 60,000 Images |
| Annotations | Voice note: max. 60 seconds Text note: max. 200 characters |
| Video Storage Capacity | Approx. 64 hours |
| Video File Format | MP4 video and radiometric video |
| Image Format | Radiometric JPEG |
| Radiometric Infrared-Video Streaming (Compressed) | Over UVC, Wi-Fi |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| HDMI Interface | HDMI-D |
| Laser Pointer | Yes |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: <1 mW |
| Laser Distance Meter | Indoor distance: 50 m (164 ft) Outdoor distance: 10 m (33 ft) |
| GPS & Compass | Yes |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours fully charged |
| Power Saving Mode | Yes |
| Programmable Buttons | 2 |
| Protection Level | IP54, IEC 60529 |
| Drop Test Height | 1 m (3.28 ft), IEC 60068-2-31 |
| Safety | IEC 61010-1 |
| Vibration | 2 g, IEC 60068-2-6 |
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20°C to 50°C ( -4°F to 122 °F) |
| Storage Temperature Range | -20°C to 60°C ( -4°F to 140°F) |
| Relative Humidity | <95% non-condensing |
| Weight | Approx. 1451 g (3.2 lb) |
| Dimension | 204.7 x 141.03 x 87.8 mm (8.06 x 5.55 x 3.45 in) |
| Tripod Mounting | UNC ¼”-20 |
| LED Light | Yes |
